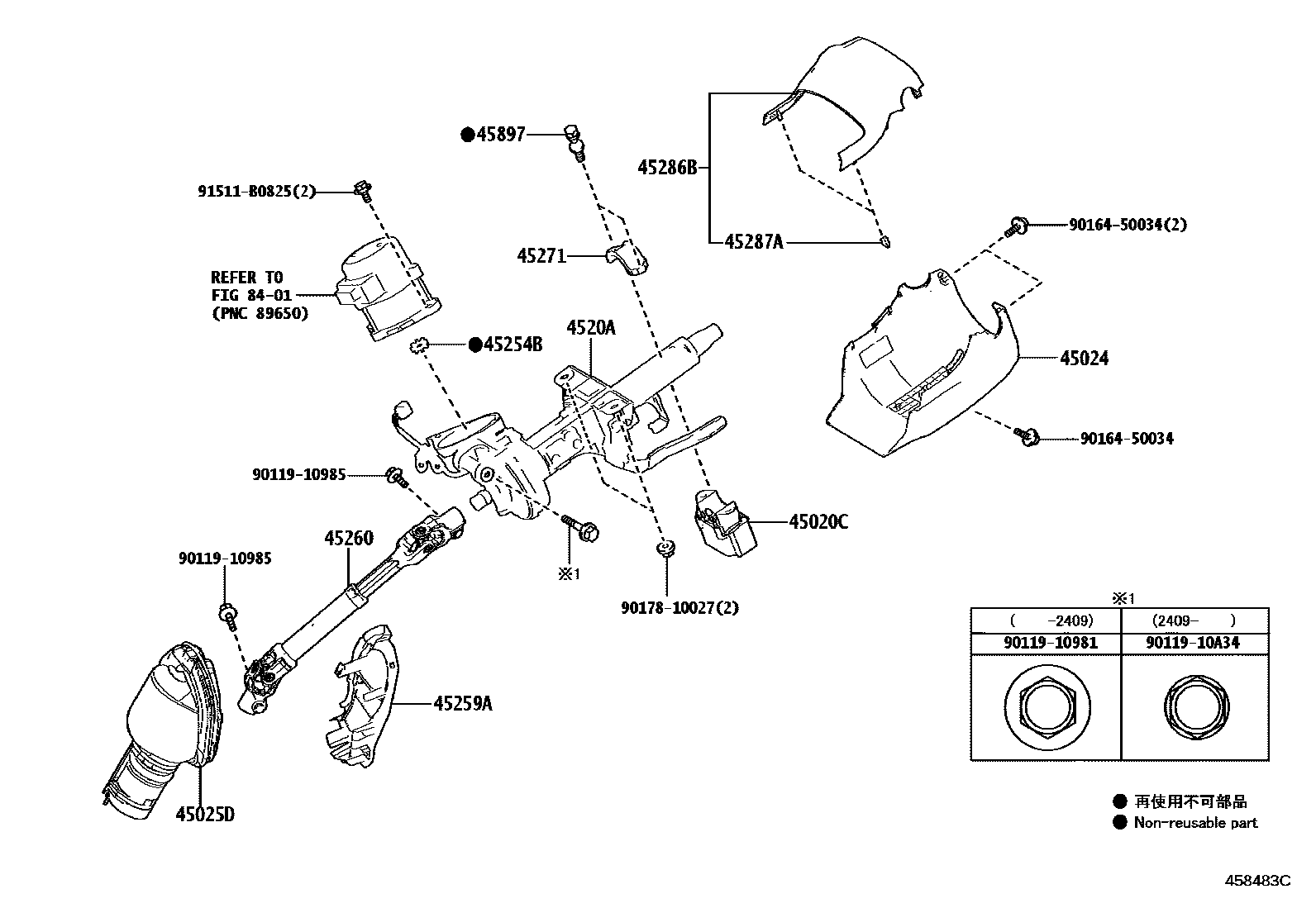

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-K0010iGZEA14..6F202409

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-12110-C0iGZEA14202409

BLACK,TRIM2#,3#

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12360iGZEA14..05S202210-202409

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-12190iGZEA14..05S202210-202409

main4520A-12360iGZEA14..6F202409

main4520A-76080iGZEA14..8FC202409

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iGZEA14..05S202210-202409

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-76030iGZEA14..02S202210-202304

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-76030iGZEA14202409

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iGZEA14..6F202409

45286BCOVER, STEERING COLUMN, UPR

main45286-12670-C0iGZEA14202409

BLACK,TRIM2#,3#

45287ACLIP(FOR STEERING COLUMN COVER)

main90467-05171×2iGZEA14202409

45897BOLT, STEERING LOCK SET

main45897-12020×2iGZEA14..6F202409

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011910981

main90119-10981

9011910985

main90119-10985

9011910A34

main90119-10A34

9016450034

main90164-50034

9017810027

main90178-10027

91511B0825

main91511-B0825

18 parts on this diagram · 1 diagram in section
