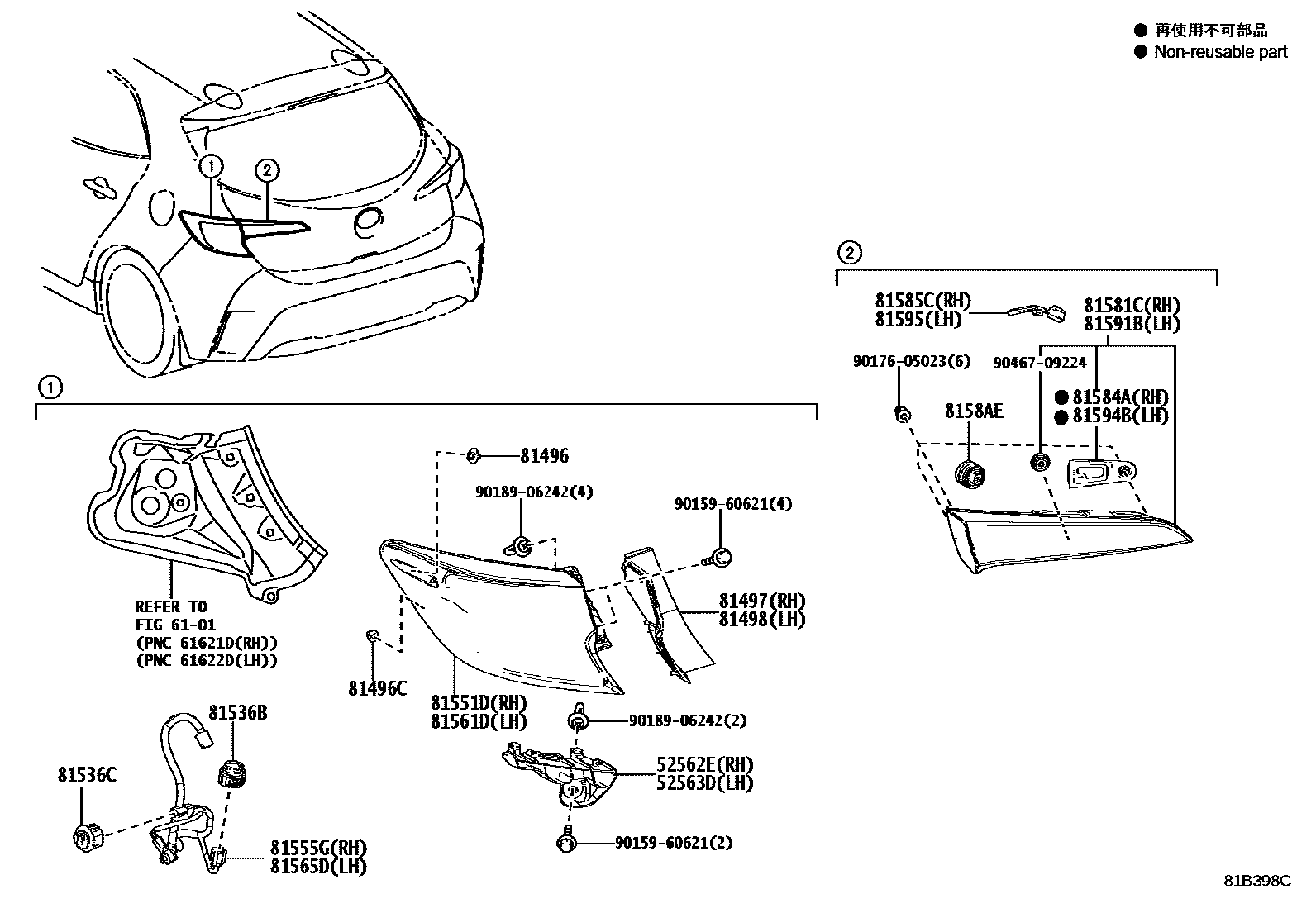

REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-12240iMZEA12..CVT201806-202209

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-12240iMZEA12..CVT201806-202209

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-50010×2iMZEA12..CVT201806-202209

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-52020×2iMZEA12..CVT201806-202209

81497COVER, REAR COMBINATION LAMP, RH

main81497-12020iMZEA12..CVT201806-202209

81498COVER, REAR COMBINATION LAMP, LH

main81498-12020iMZEA12..CVT201806-202209

81536BLED, REAR TURN SIGNAL LAMP

main81536-12D30×2iMZEA12201806

81536CLED, TAIL & STOP LAMP

main81536-15120×2iMZEA12201806

main81965-70010×2iMZEA12202209

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-12D30iMZEA12201806-201809

main81551-12D31iMZEA12..CVT201809-202209

main81551-12E50iMZEA12202209

81555GCORD, REAR COMBINATION LAMP, RH

main81555-12D30iMZEA12201806-201809

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-12D30iMZEA12201806-201809

main81561-12D31iMZEA12..CVT201809-202209

main81561-12E50iMZEA12202209

81565DCORD, REAR COMBINATION LAMP, LH

main81565-12D30iMZEA12201806-201809

81581CLENS AND BODY, REAR LAMP, RH

main81581-12260iMZEA12201806-201808

main81581-12261iMZEA12..CVT201808-202209

main81581-12440iMZEA12202209

81584AGASKET, REAR LAMP RH

main81582-12260iMZEA12..CVT201806-202209

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-12260iMZEA12..CVT201806-202209

8158AELED, BACK-UP LAMP

main8158A-12260×2iMZEA12201806

81591BLENS AND BODY, REAR LAMP, LH

main81591-12230iMZEA12201806-201808

main81591-12231iMZEA12..CVT201808-202209

main81591-12440iMZEA12202209

81594BPACKING, REAR LAMP LH

main81582-12260iMZEA12..CVT201806-202209

81595SOCKET & WIRE, REAR LAMP, LH

main81585-12260iMZEA12..CVT201806-202209

9015960621

main90159-60621

9017605023

main90176-05023

9018906242

main90189-06242

9046709224

main90467-09224

24 parts on this diagram · 1 diagram in section
