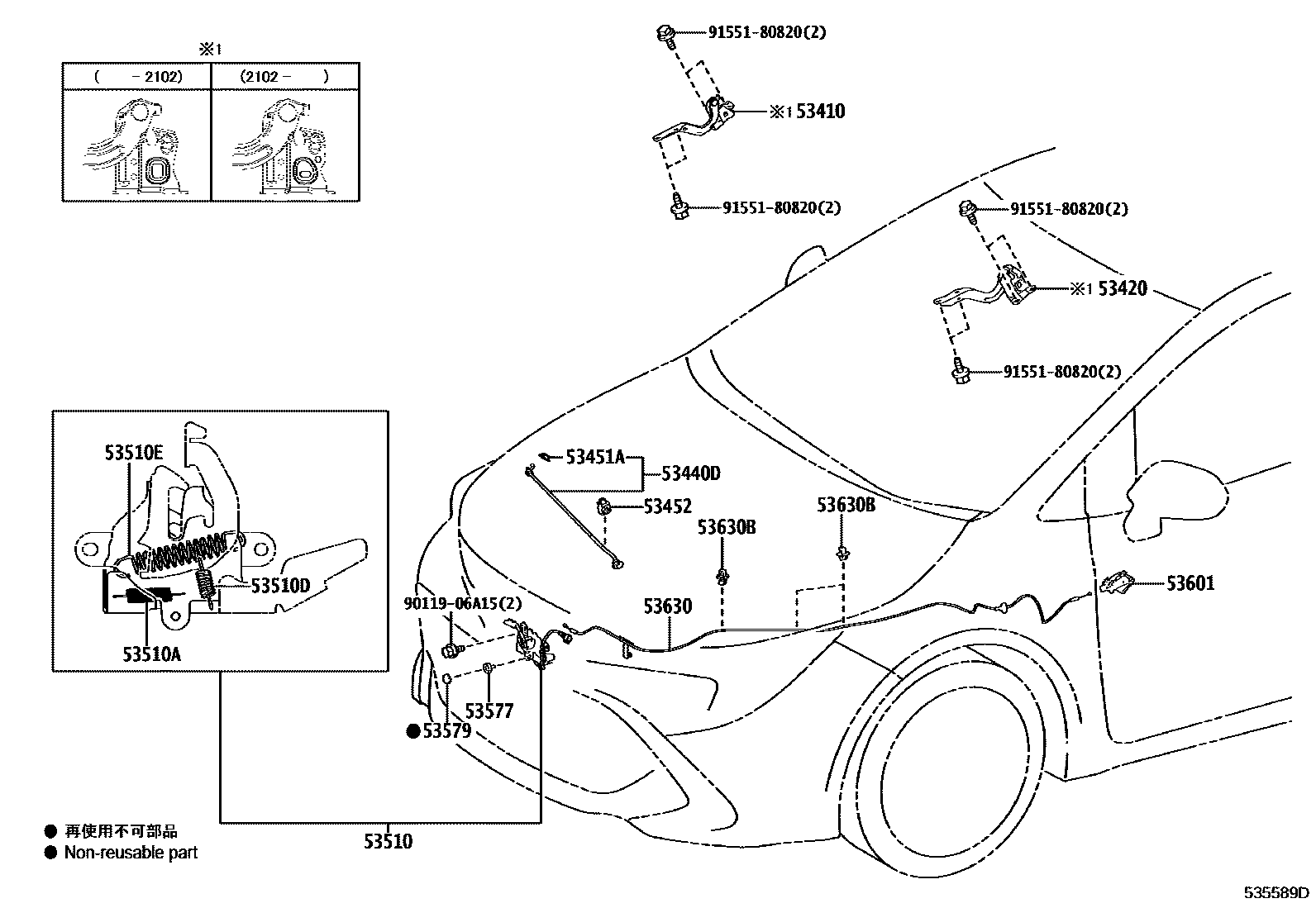

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-12680iMZEA12201806-202102

main53410-12740iMZEA12202209

53420HINGE ASSY, HOOD, LH

main53420-12670iMZEA12201806-202102

main53420-12730iMZEA12202102

53440DSUPPORT ASSY, HOOD

main53440-12220iMZEA12..CVT201806-202209

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iMZEA12202209

53452HOLDER, HOOD STAY

main53452-12130iMZEA12201806-202102

main53452-15020iMZEA12..CVT202102-202209

53510LOCK ASSY, HOOD

main53510-12C00supersedes 53510-12B90iMZEA12201806-202102

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM(HORN)

main53510-12C01supersedes 53510-12C02iMZEA12..CVT202102-202209

ANTI-THEFT SYSTEM-IMMOBILIZER & ALARM(HORN)

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iMZEA12..6F201806

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iMZEA12..CVT201806-202209

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iMZEA12201806-202102

WD=1.6,CW=12

main90506-18067iMZEA12..CVT202102-202209

WD=1.8,CW=13

53577BOLT, HOOD LOCK

main53577-33010iMZEA12..CVT201806-202209

53579CAP, HOOD LOCK NUT

main53579-50010iMZEA12..CVT201806-202209

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iMZEA12..CVT201806-202209

BLACK,TRIM1#,2#,3#,4#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-12720iMZEA12..CVT201806-202209

main53630-12721iMZEA12202209

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×3iMZEA12..CVT201806-202209

9011906A15

main90119-06A15

9155180820

main91551-80820

16 parts on this diagram · 1 diagram in section
