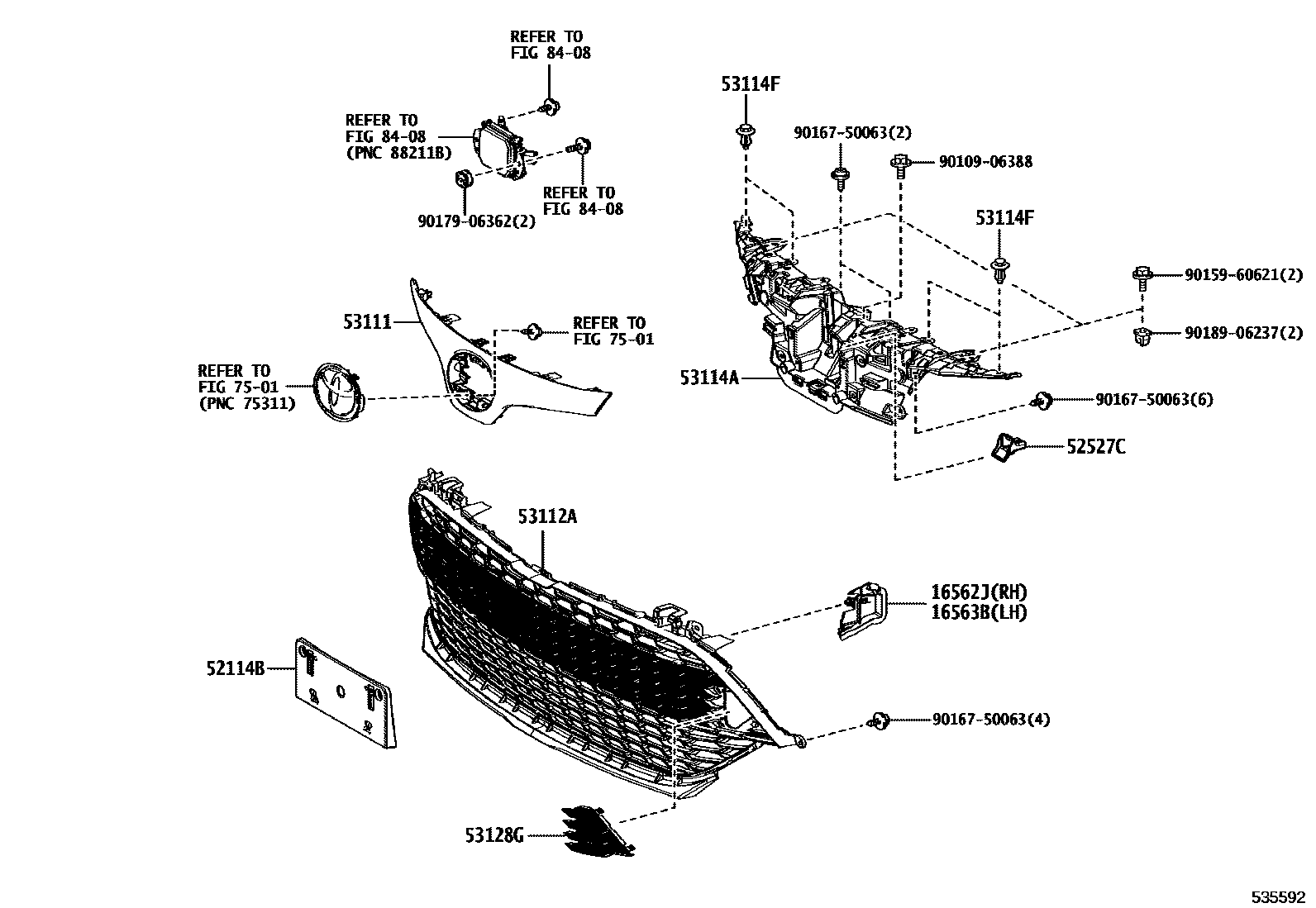

RADIATOR GRILLE

0001 1 0002 1

16562JSEAL, RADIATOR TO SUPPORT, NO.2

main16562-37050iM20AFKS..MZEA12..CVT201806-202209

16563BSEAL, RADIATOR TO SUPPORT, NO.3

main16563-37050iM20AFKS..MZEA12..CVT201806-202209

52114BBRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-12300iMZEA12..CVT201806-202209

main52114-12390iMZEA12202209-202212

main52114-12391iMZEA12202301

52527CRETAINER, FRONT BUMPER, LOWER NO.2

main52527-12060iMZEA12..CVT201806-202209

53111GRILLE, RADIATOR

main53111-12E90iMZEA12..CVT201806-202209

53112AGRILLE, RADIATOR, LOWER

main53112-12420iMZEA12..CVT201806-202209

main53112-12790iMZEA12202209

53114AGRILLE, RADIATOR, INNER

main53114-12230iMZEA12..CVT201806-202209

53114FCLIP, RADIATOR GRILLE

main90467-05063-C0×4iMZEA12..CVT201806-202209

BLACK

53128GGRILLE, RADIATOR, LOWER SIDE LH

main53128-12100iMZEA12..CVT201806-202209

main53128-12220iMZEA12202209

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9010906388

main90109-06388

9015960621

main90159-60621

9016750063

main90167-50063

9017906362

main90179-06362

9018906237

main90189-06237

16 parts on this diagram · 2 diagrams in section
