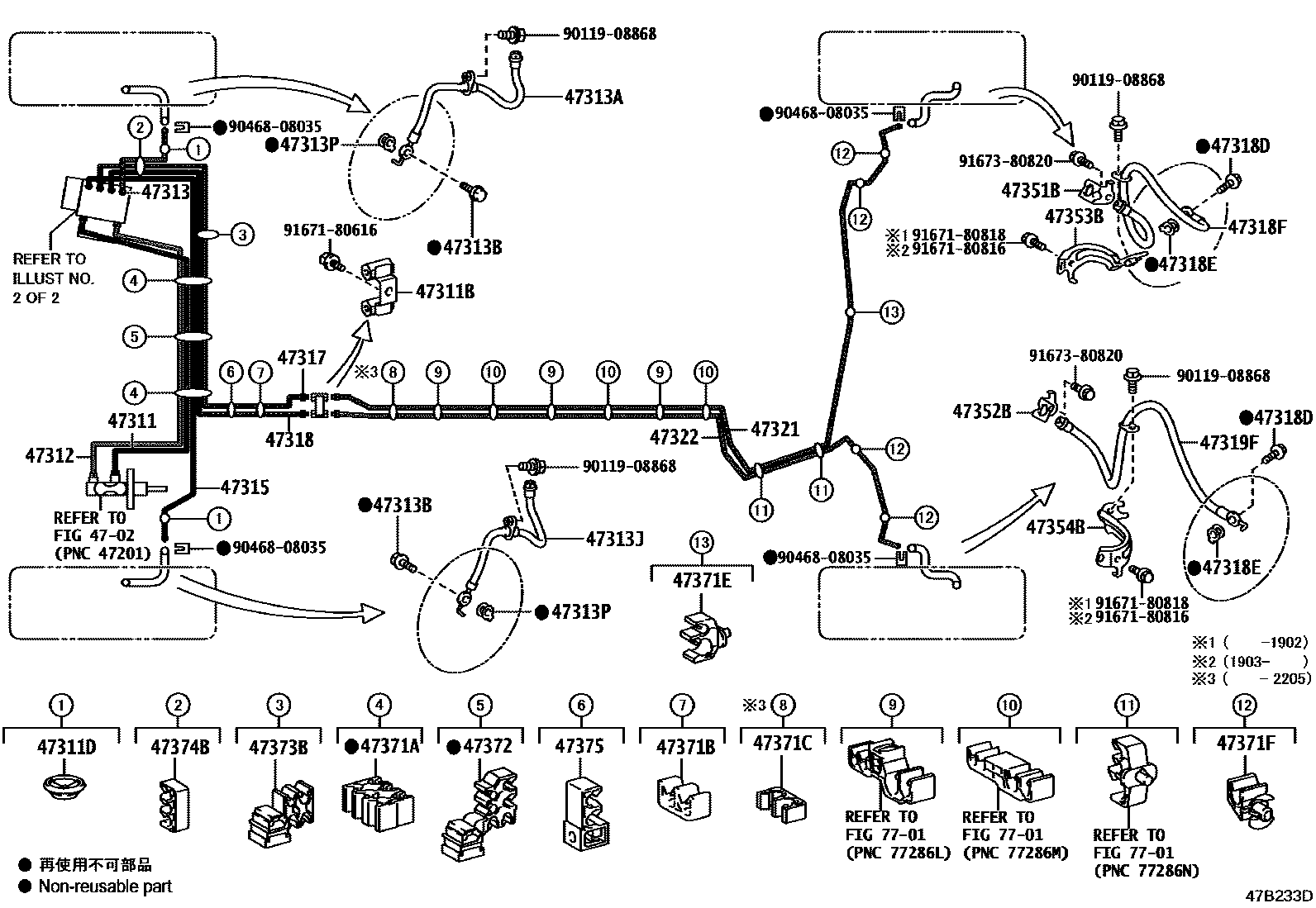

BRAKE TUBE & CLAMP
4702BRAKE MASTER CYLINDER
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
47311DGROMMET(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47315TUBE, FRONT BRAKE, NO.5
47317TUBE, FRONT BRAKE, NO.7
47318TUBE, FRONT BRAKE, NO.8
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47351BBRACKET, FLEXIBLE HOSE, NO.1
47352BBRACKET, FLEXIBLE HOSE, NO.2
47353BBRACKET, FLEXIBLE HOSE, NO.3
47354BBRACKET, FLEXIBLE HOSE, NO.4
47371ACLAMP, BRAKE TUBE, NO.1
47371BCLAMP, BRAKE TUBE, NO.6
47371CCLAMP, BRAKE TUBE, NO.7
47371ECLAMP, BRAKE TUBE, NO.9
47371FCLAMP, BRAKE TUBE, NO.10
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
47374BCLAMP, BRAKE TUBE, NO.4
47375CLAMP, BRAKE TUBE, NO.5
7701FUEL TANK & TUBE
9011908868
main90119-08868
9046808035
main90468-08035
9167180616
main91671-80616
9167180816
main91671-80816
9167180818
main91671-80818
9167380820
main91673-80820
39 parts on this diagram · 2 diagrams in section
