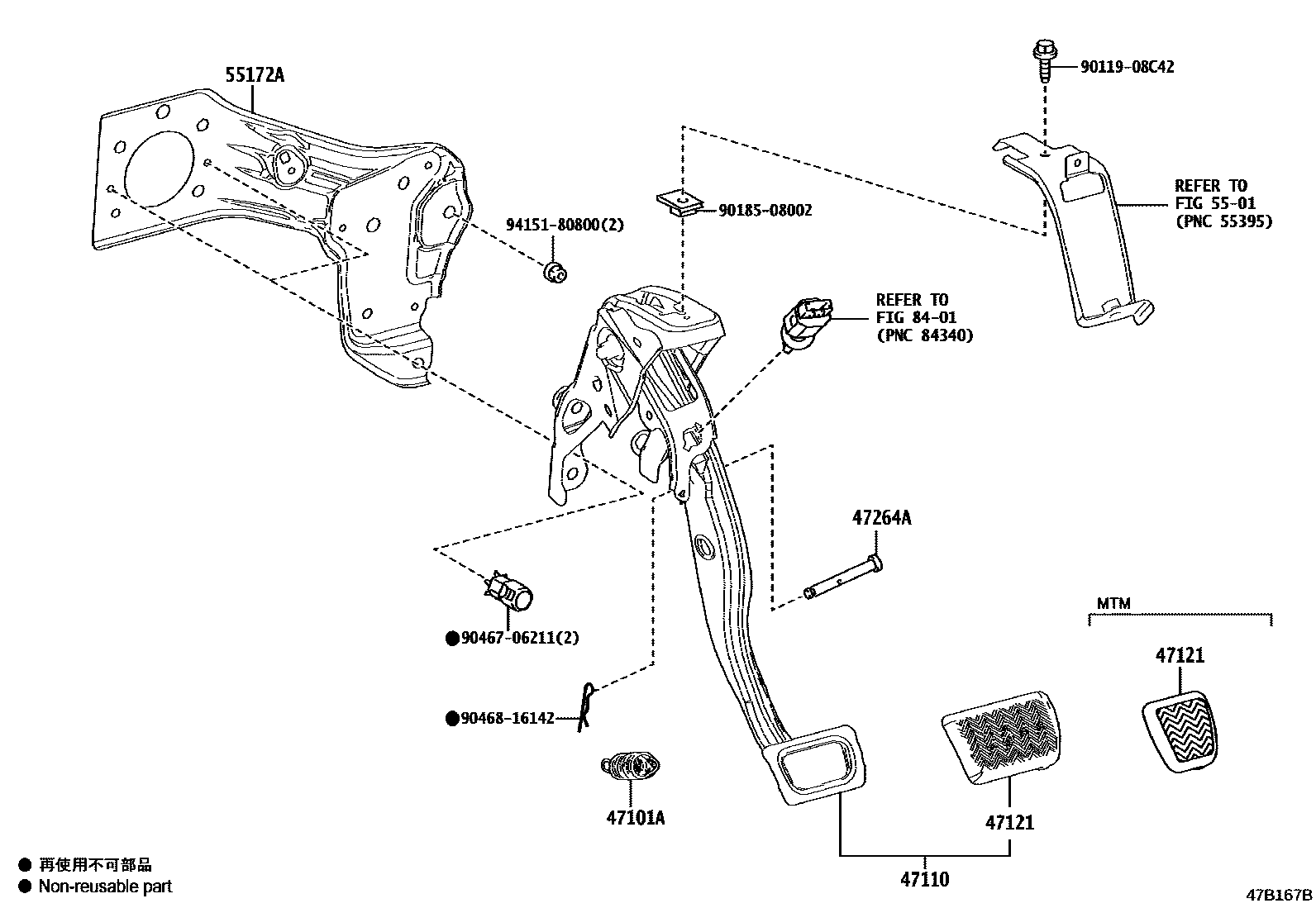

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15010iMZEA12..6F201806-202209

47110SUPPORT ASSY, BRAKE PEDAL

main47110-12390iMZEA12..CVT201806-202401

sub47110-12391

main47110-12391iMZEA12202402

main47110-12400iMZEA12..6F201806

47121PAD, BRAKE PEDAL

main47121-12040iMZEA12..6F201806

main47121-16020iMZEA12202402

main47121-47010iMZEA12201806-202402

47264APIN(FOR PUSH ROD)

main90249-08221iMZEA12..6F201806

main90249-08309iMZEA12..CVT201806-202209

5501

55172ABASE, BRAKE PEDAL SUPPORT

main55172-12160iMZEA12..CVT201806-202411

main55172-12161iMZEA12202411

8401

9011908C42

main90119-08C42

9018508002

main90185-08002

9046706211

main90467-06211

9046816142

main90468-16142

9415180800

main94151-80800

12 parts on this diagram · 1 diagram in section
