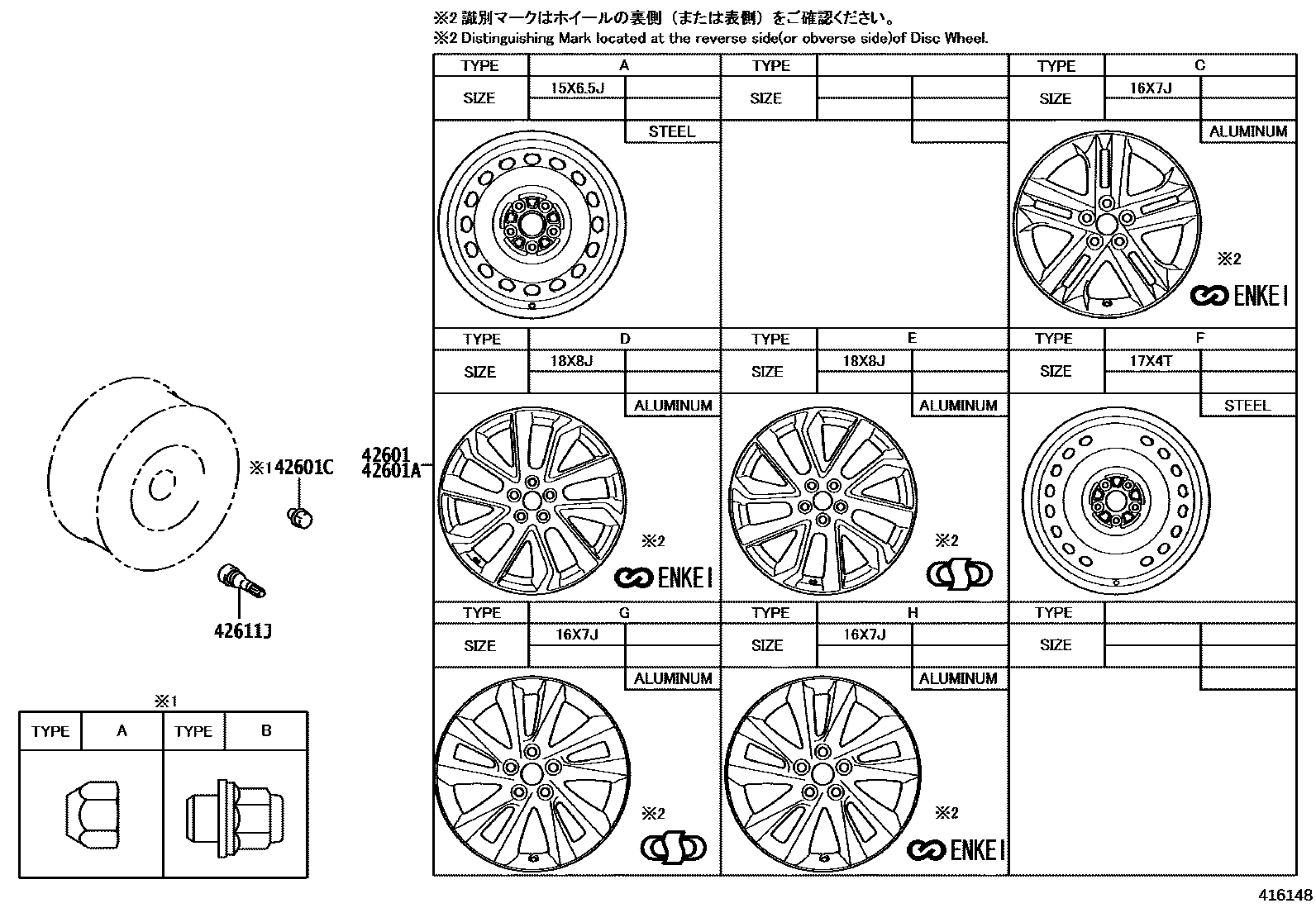

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-12D30×4supersedes 42611-12E00i201806

15X6.5J,#,TIRE&DISC WHEEL-195/65R15 ALL SEASON TIRE STEEL WHEEL,TYPE A:REFER ILLUST.

main42611-12D31×4supersedes 42611-12G00i202209

15X6.5J,#,TIRE&DISC WHEEL-195/65R15 ALL SEASON TIRE STEEL WHEEL,TYPE A:REFER ILLUST.

main42611-12E10×4supersedes 42611-12G00i201806-202209

18X8J,#,TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL,TYPE D:REFER ILLUST.

main42611-12F00×4i201909-202209

18X8J, #,WITH(NIGHT SHADE)&TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL,TYPE D:REFER ILLUST.

main42611-12G10×4supersedes 42611-12G00i202209

18X8J,#,TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL,TYPE E:REFER ILLUST.

main42611-12G20×4supersedes 42611-12G00i202209

18X8J,#,TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL,TYPE D:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-47631i201806-202209

17X4T,TYPE F:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01007×20supersedes 90942-01033i202209

TIRE&DISC WHEEL-195/65R15 ALL SEASON TIRE STEEL WHEEL,TYPE A:REFER ILLUST.

main90942-01115×20i202006-202107

WITH (TC&D SPECIAL EDITION)&TIRE&DISC WHEEL-225/40R18 ALL SEASON TIRE ALUMINUM WHEEL,TYPE B:REFER ILLUST.

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i201806-202209

4 parts on this diagram · 3 diagrams in section
