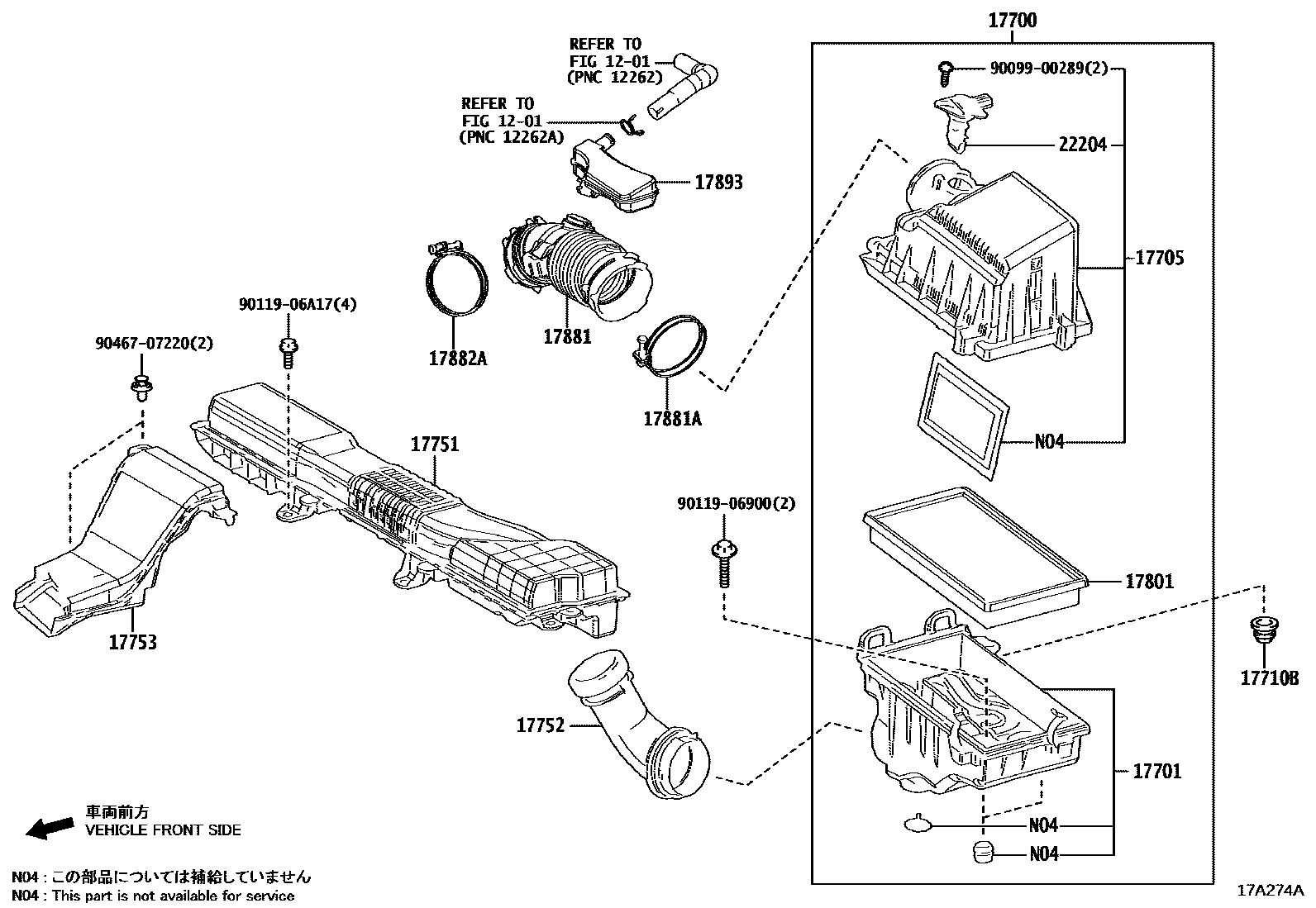

AIR CLEANER

0001 1 0003 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17700CLEANER ASSY, AIR

main17700-24620iM20AFKS..MZEA12201806-202107

main17700-24630iM20AFKS..MZEA12..6F202107

17701CASE SUB-ASSY, AIR CLEANER

main17701-24440iM20AFKS..MZEA12..CVT201806-202209

17705CAP SUB-ASSY, AIR CLEANER

main17705-24330iM20AFKS..MZEA12201806-202107

main17705-24340iM20AFKS..MZEA12..CVT202107-202209

17710BGROMMET

main90480-18006iM20AFKS..MZEA12..CVT201806-202209

17751INLET, AIR CLEANER, NO.1

main17751-24010iM20AFKS..MZEA12..CVT201806-202209

main17751-24050iM20AFKS..MZEA12202209

17752INLET, AIR CLEANER, NO.2

main17752-24050iM20AFKS..MZEA12..CVT201806-202209

17753INLET, AIR CLEANER, NO.3

main17753-24030iM20AFKS..MZEA12202209

main17753-37040iM20AFKS..MZEA12..CVT201806-202209

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-77050iM20AFKS..MZEA12..CVT201806-202209

17881HOSE, AIR CLEANER, NO.1

main17881-24050iM20AFKS..MZEA12..CVT201806-202209

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850iM20AFKS..MZEA12..CVT201806-202209

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10800iM20AFKS..MZEA12..CVT201806-202209

17893RESONATOR, INTAKE AIR

main17893-24020iM20AFKS..MZEA12..CVT201806-202209

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-75040iM20AFKS..MZEA12..CVT201806-202209

9009900289

main90099-00289

9011906900

main90119-06900

9011906A17

main90119-06A17

9046707220

main90467-07220

18 parts on this diagram · 2 diagrams in section
