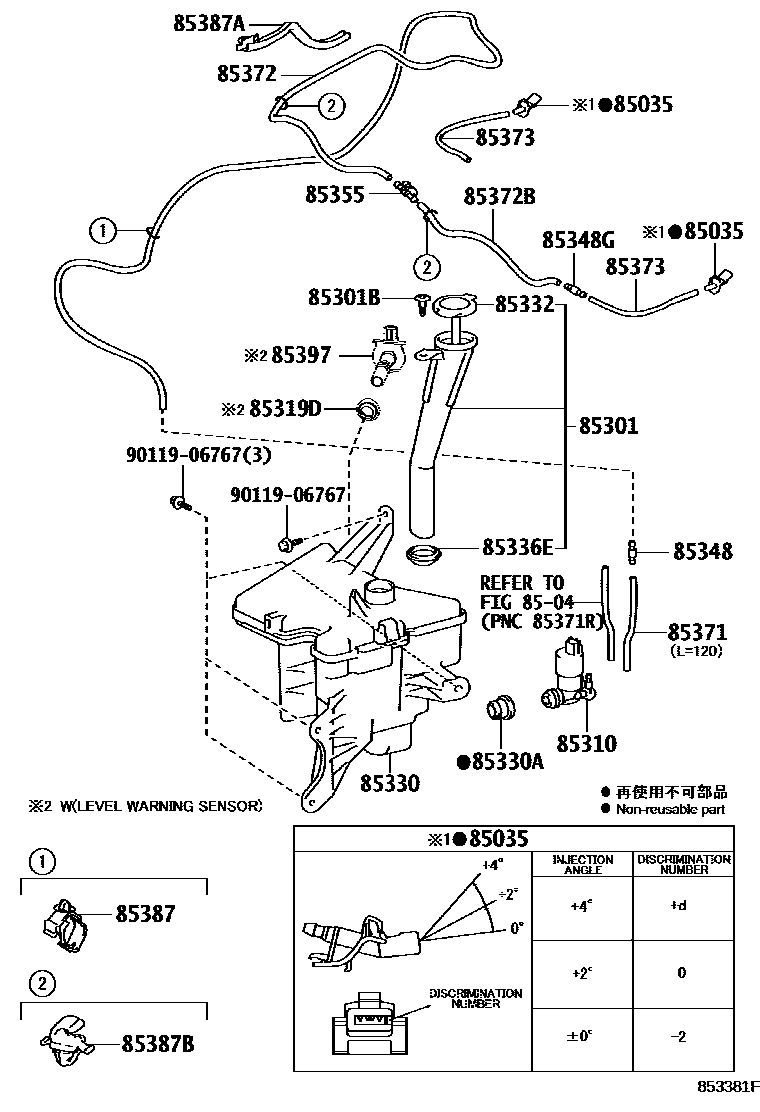

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12400×2iZRE186201506

ANGLE 0

main85381-12420×2iZRE186201506

ANGLE +2

main85381-12430×2iZRE186201506

ANGLE +4

8504REAR WASHER

→ Go to FIG 85-04

85301INLET SUB-ASSY, WASHER

main85301-02010iZRE186201506

85301BCLIP, WASHER

main90467-07076-C0iZRE186201506-201703

BLACK

main90467-07076-C7iZRE186201703-201805

BLACK

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-02050iZRE186201506

85319DPACKING, FRONT WASHER

main85336-02250iZRE186201506

85330JAR ASSY, WINDSHIELD WASHER

main85315-0W050iZRE186201506

85330ABUSH, WINDSHIELD WASHER JAR

main90069-20005iZRE186201506

85332CAP, WINDSHIELD WASHER JAR

main85356-02200iZRE186201506

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main90069-38005iZRE186201506

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-05050iZRE186201506

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260iZRE186201506

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iZRE186201506

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-16009iZRE186201506

*318:REFER ILLUST.

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-62101iZRE186201506

L=1943

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-62076iZRE186201506

L=360

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-62080×2iZRE186201506

L=170

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-1E350iZRE186201506

85387ACLAMP, WASHER, NO.2

main85388-12A70iZRE186201506

85387BCLAMP, WASHER, NO.3

main85371-12040×2iZRE186201506

85397SWITCH ASSY,LEVEL WARNING

main85397-02550iZRE186201506

9011906767

main90119-06767

22 parts on this diagram · 1 diagram in section
