WIRELESS DOOR LOCK

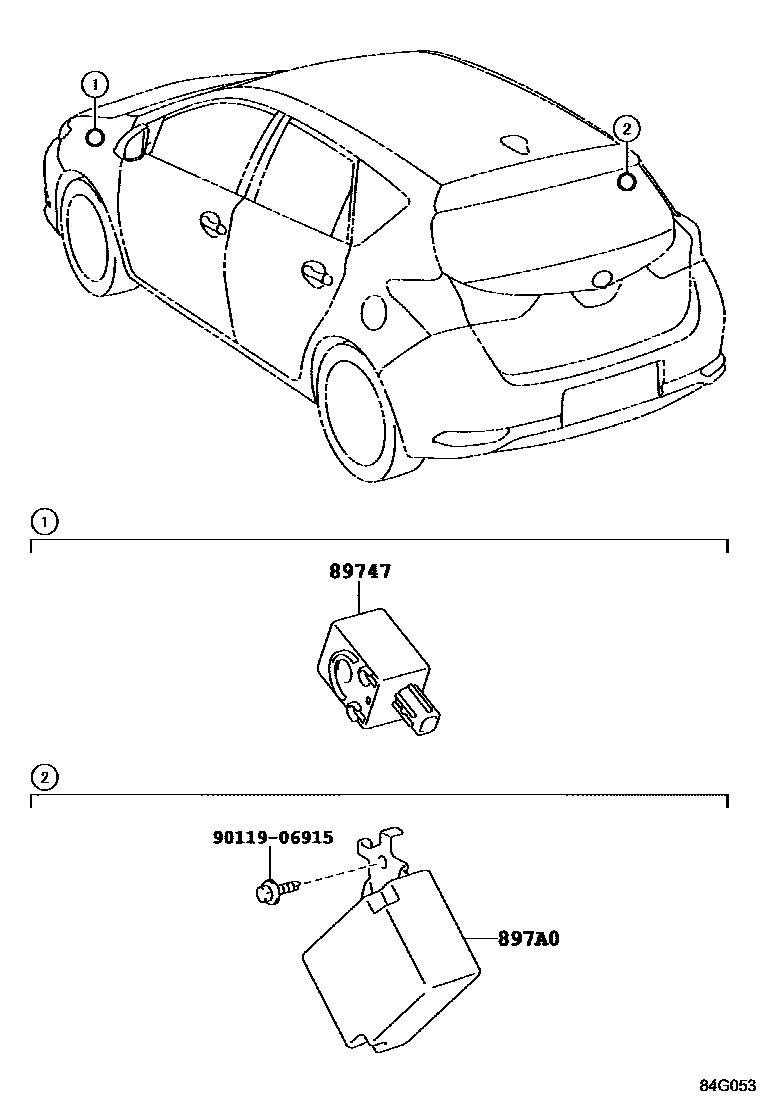

Parts diagram

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040i201506

897A0RECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING SYSTEM

main897A0-12010i201506-201601

main897A0-12011i201602

9011906915

main90119-06915

3 parts on this diagram · 1 diagram in section
