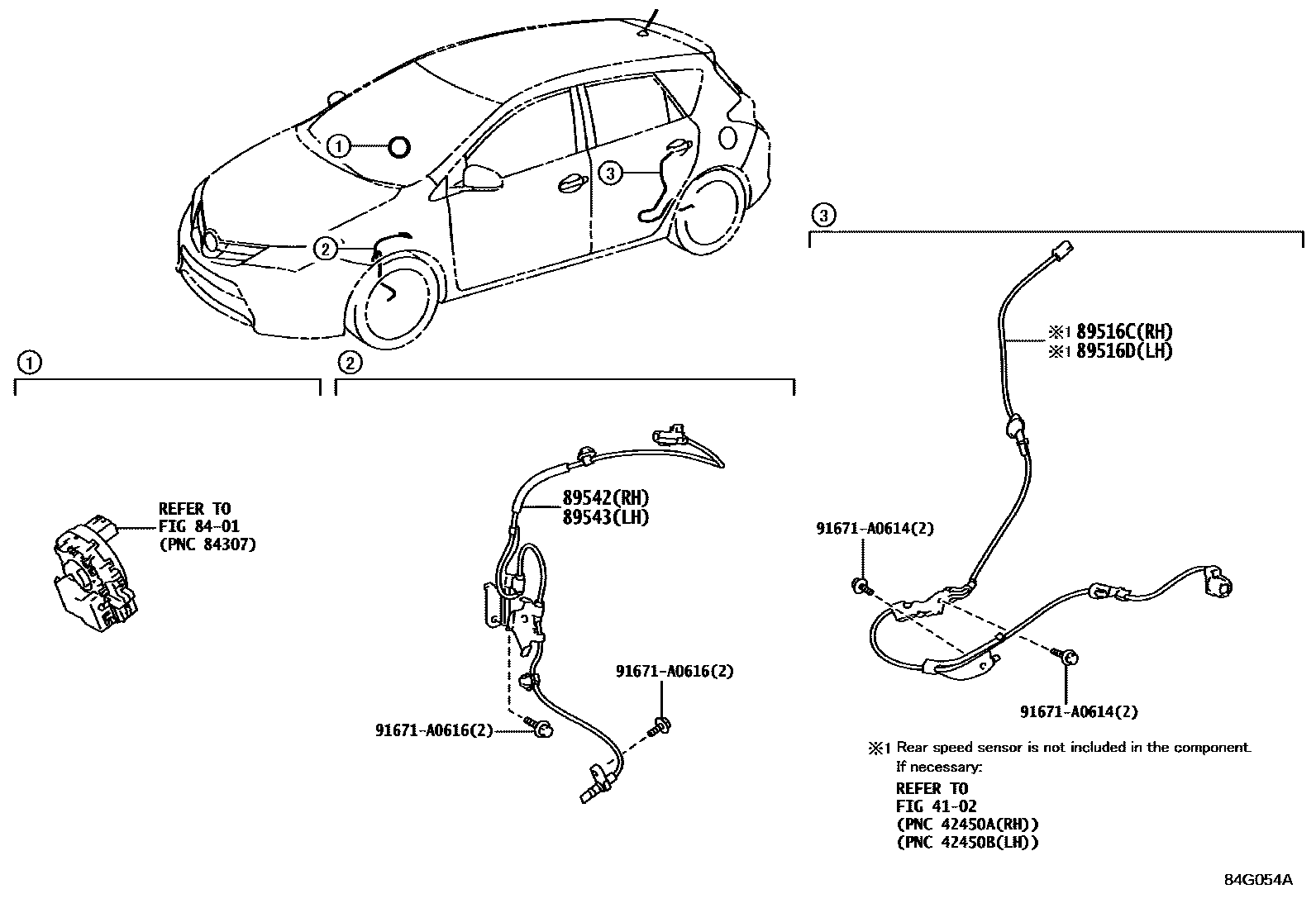

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-12160iZRE186201506

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-12170iZRE186201506

89542SENSOR, SPEED, FRONT RH

main89542-12080iZRE186201506

89543SENSOR, SPEED, FRONT LH

main89543-12080iZRE186201506

91671A0614

main91671-A0614

91671A0616

main91671-A0616

8 parts on this diagram · 1 diagram in section
