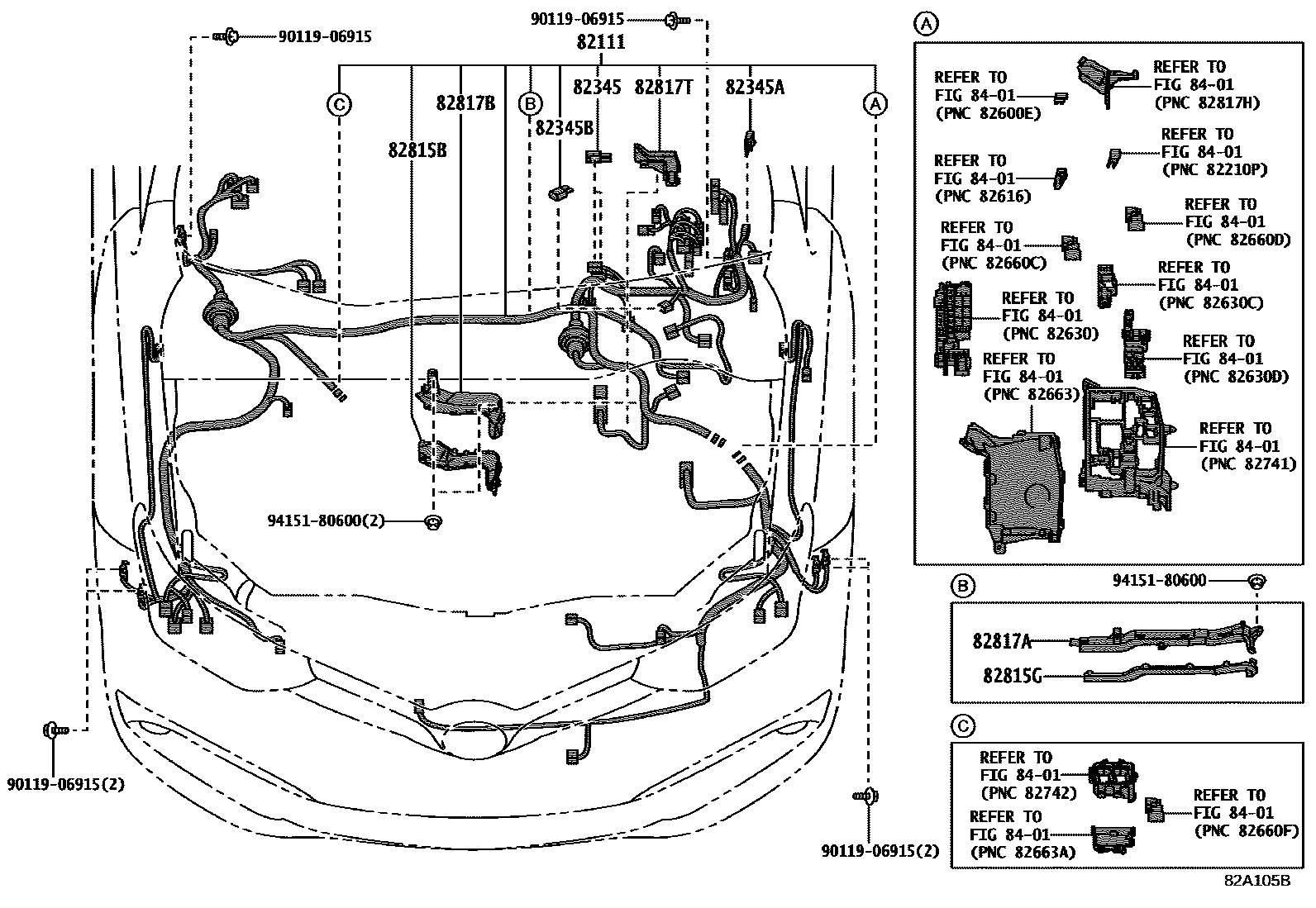

82111WIRE, ENGINE ROOM MAIN

main82111-1HN50iZRE186..6F201608-201611

main82111-1HN51iZRE186..6F201611

main82111-1HN60iZRE186..CVT201608-201611

main82111-1HN61iZRE186..CVT201611

main82111-1HW90iZRE186..6F201506-201510

main82111-1HW91iZRE186..6F201511-201608

main82111-1HX00iZRE186..CVT201506-201510

main82111-1HX01iZRE186..CVT201511-201608

82345DIODE

main82345-12030×3iZRE186..6F; ZRE186..CVT201611-201805

82345ADIODE

main82345-12030iZRE186201611-201805

PRE-COLLISION SYSTEM-WITHOUT

82345BDIODE

main82345-12060iZRE186201611-201805

PRE-COLLISION SYSTEM-WITHOUT

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-02130iZRE186201506

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-02140iZRE186201506

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-02B30iZRE186201506

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-02500iZRE186201506

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-02A80iZRE186201506

82817TPROTECTOR, WIRING HARNESS, NO.15

main82817-12J80iZRE186201506

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

9415180600

main94151-80600
