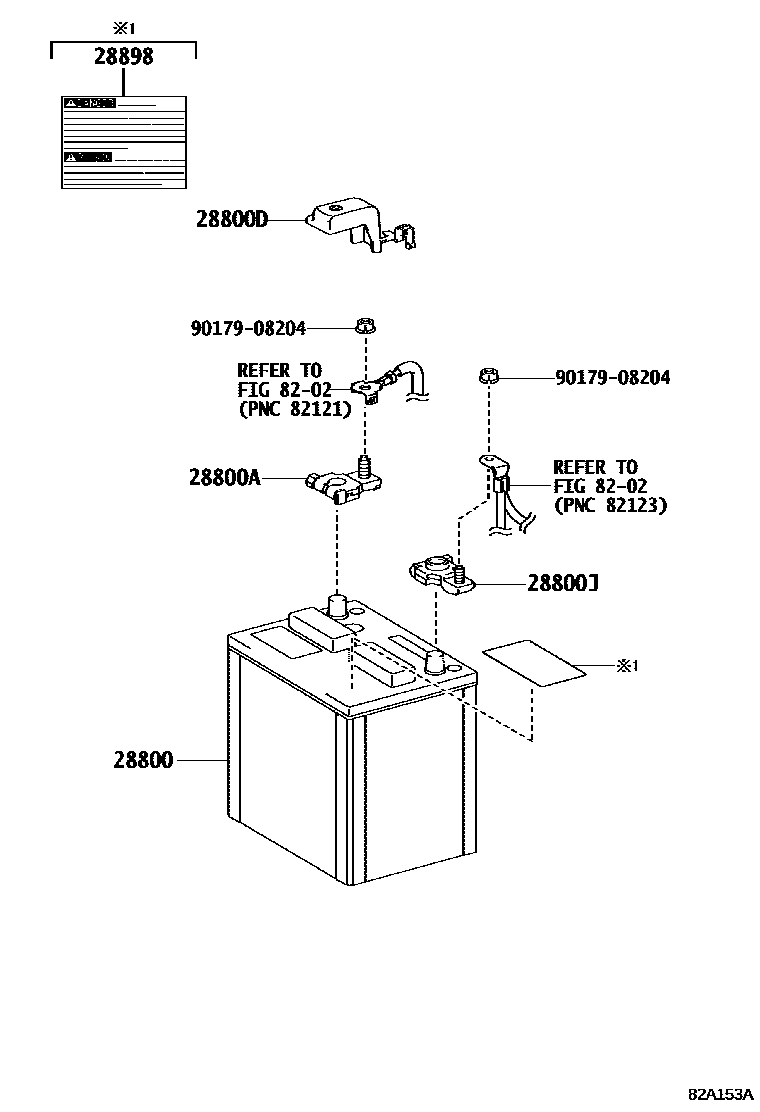

BATTERY & BATTERY CABLE

28800BATTERY

main28800-43262i2ZRFAE..ZRE186201506-201805

55D23L

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2ZRFAE..ZRE186201506

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12490i2ZRFAE..ZRE186201506

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i2ZRFAE..ZRE186201506

28898PLATE, BATTERY

main28897-38010i2ZRFAE..ZRE186..CND201506

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908204

main90179-08204

7 parts on this diagram · 1 diagram in section
