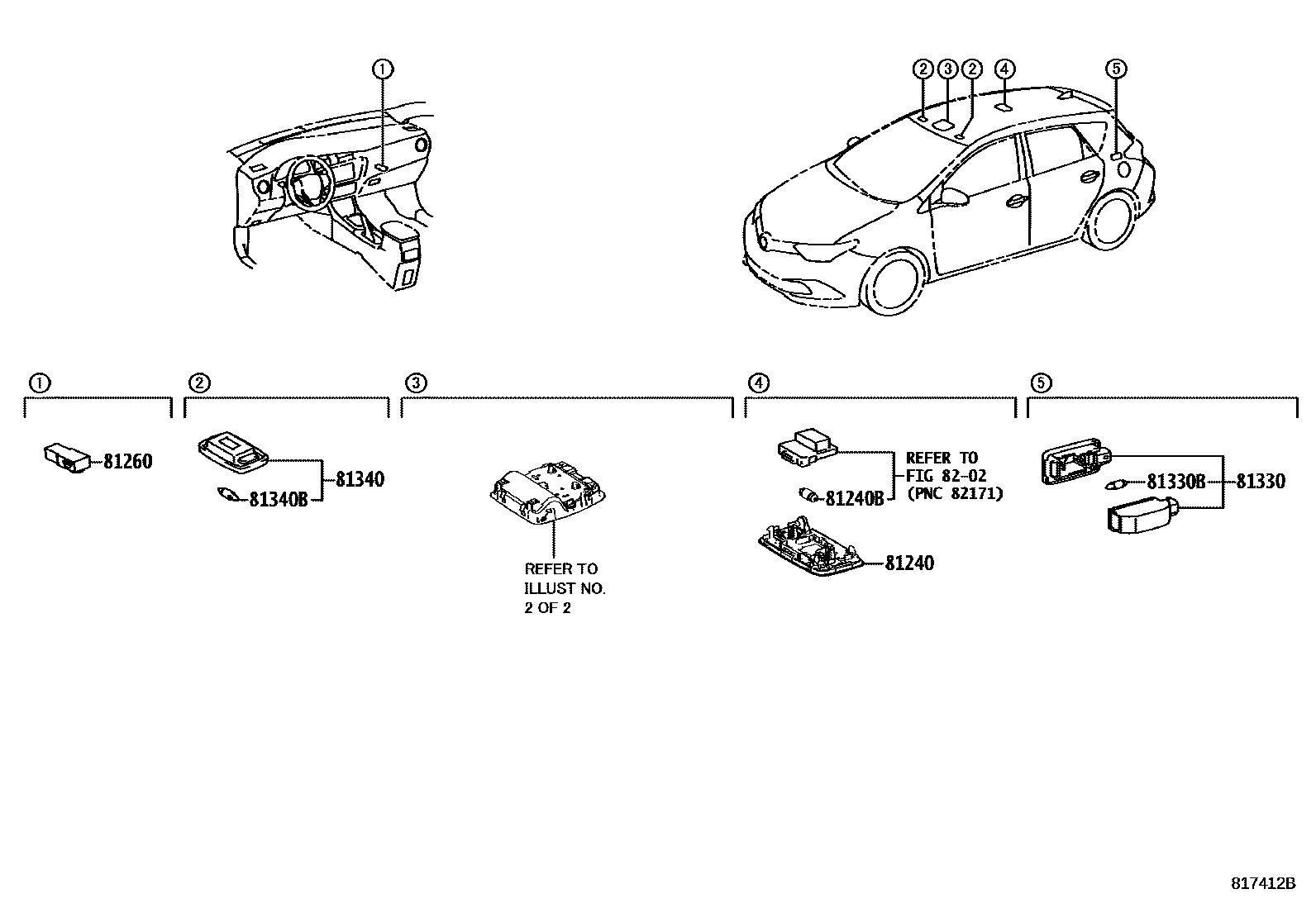

INTERIOR LAMP

0001 1 0002 1

81240LAMP ASSY, ROOM, NO.1

main81240-35020-B0iZRE186201506-201805

LT.GRAY,TRIM2#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iZRE186201506

12V 8W

81260LAMP ASSY, GLOVE BOX

main81080-48010iZRE186201506-201711

main81080-52050iZRE186201712

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-12060iZRE186201506

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-13050iZRE186201506

12V 5W

81340LAMP ASSY, VANITY

main81340-33140-B0×2iZRE186201506-201805

LT.GRAY,TRIM2#

81340BBULB (FOR VANITY LAMP)

main99132-13050×2iZRE186201506

12V 5W

8202WIRING & CLAMP

→ Go to FIG 82-02

8 parts on this diagram · 2 diagrams in section
