HEADLAMP

53181ECOVER, HEADLAMP, RH

main53181-12060iZRE186201506

53182ECOVER, HEADLAMP, LH

main53182-12060iZRE186201506

53271ABRACKET, HEADLAMP MOUNTING

main53271-44010×2iZRE186201506

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13089×2iZRE186201506

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-12C50iZRE186201506

81175UNIT ASSY, HEADLAMP, LH

main81170-12C70iZRE186201506

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-12180iZRE186201506

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-12180iZRE186201506

81195SCREW, HEADLAMP

main90168-40059×4iZRE186201506

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-12240iZRE186201506

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-12240iZRE186201506

81510ABULB, FRONT TURN SIGNAL & PARKING LAMP

main90981-15031×2iZRE186201506

12V 28/8W

81710FBULB, FRONT SIDE MAKER LAMP

main99132-12050×2iZRE186201506

9010906382

main90109-06382

9015950388

main90159-50388

9017906127

main90179-06127

9018905142

main90189-05142

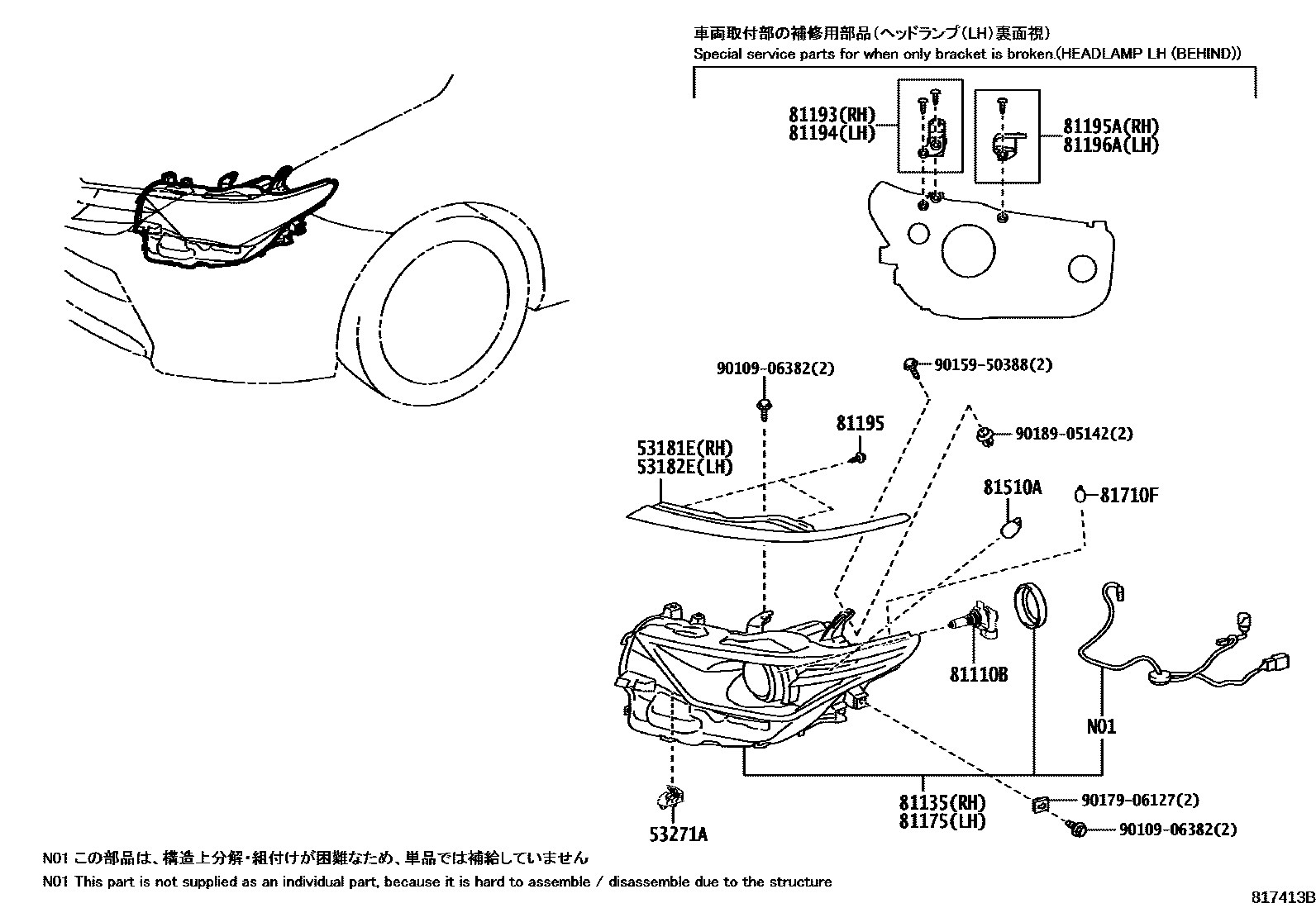

17 parts on this diagram · 1 diagram in section
