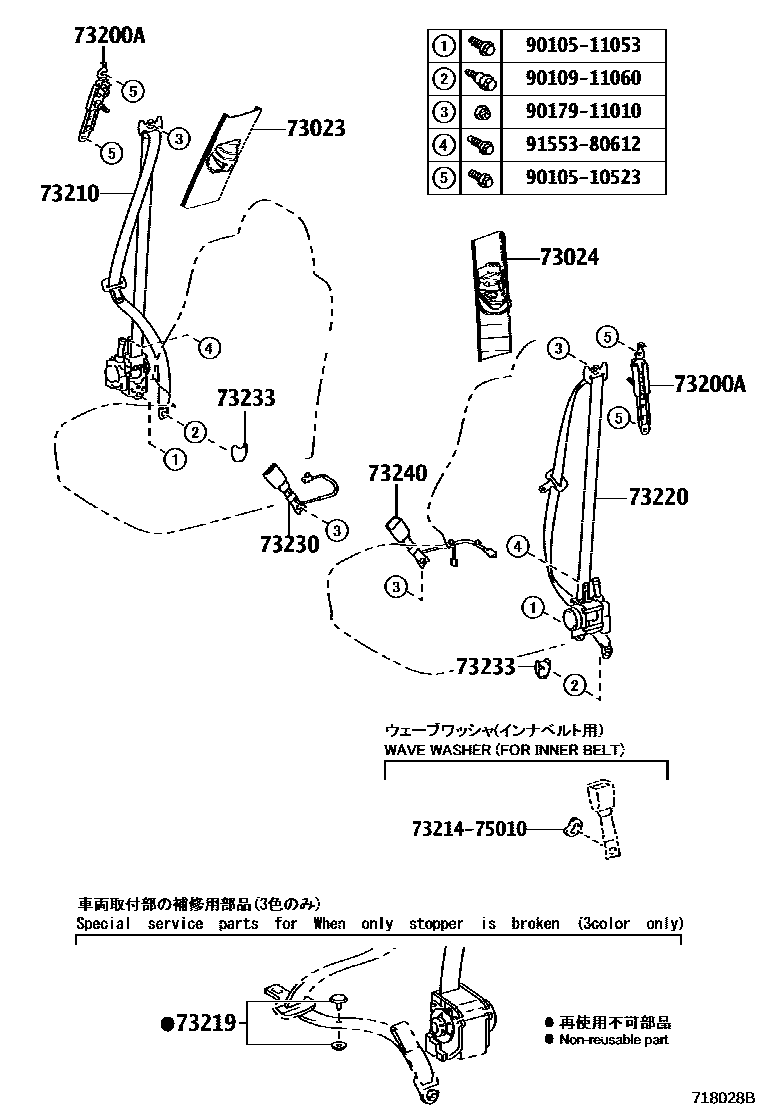

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-33030-B1iZRE186201506-201805

LT.GRAY,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-33030-B1iZRE186201506-201805

LT.GRAY,TRIM2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iZRE186201507

main73200-53010×2iZRE186201506-201507

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-12D50-C0iZRE186201506-201805

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-02010iZRE186201506

BLACK

main73219-02020iZRE186201506

GRAY

main73219-02030iZRE186201506

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-12C30-C0iZRE186201506-201805

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-12C10-C0iZRE186201506-201805

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C0×2iZRE186201506-201610

BLACK,TRIM2#

main73233-60020-C1×2iZRE186201610-201805

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-12330-C0iZRE186201506-201805

BLACK,TRIM2#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511053

main90105-11053

9010911060

main90109-11060

9017911010

main90179-11010

9155380612

main91553-80612

15 parts on this diagram · 2 diagrams in section
