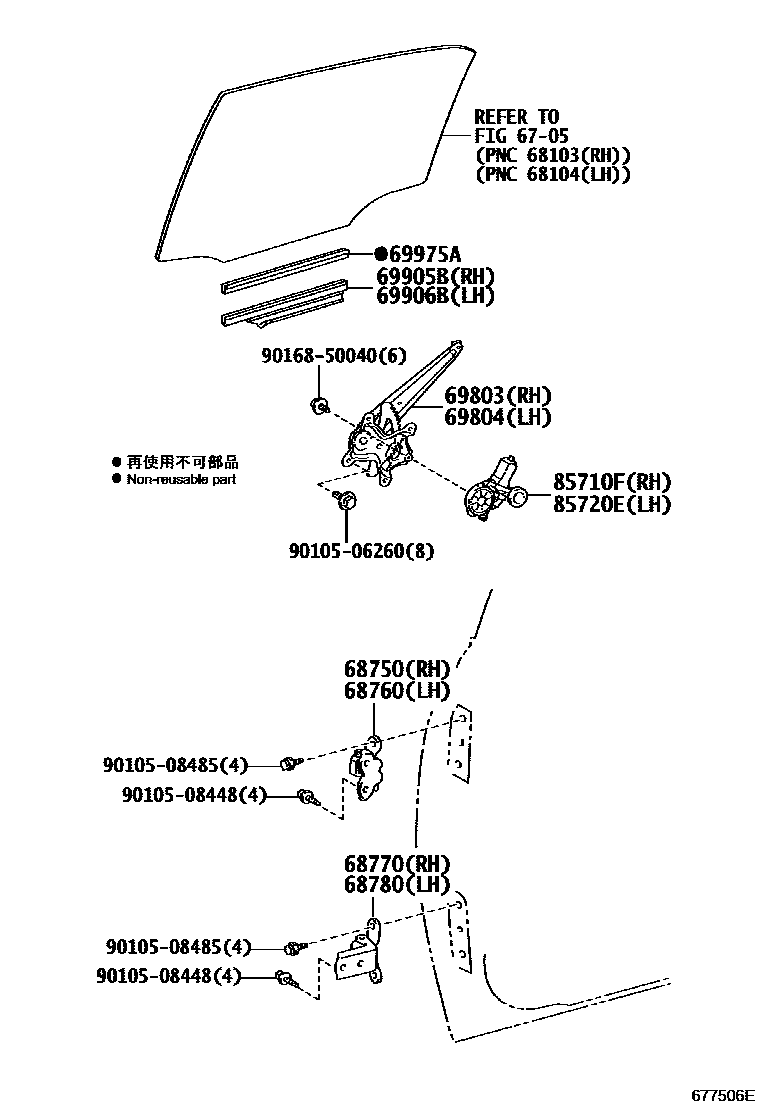

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iZRE186201506

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iZRE186201506

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iZRE186201506

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iZRE186201506

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-12200iZRE186201506

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-12200iZRE186201506

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-12200iZRE186201506-201805

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-12190iZRE186201506-201805

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iZRE186201506-201805

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-35140iZRE186201506

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-35180iZRE186201506

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
