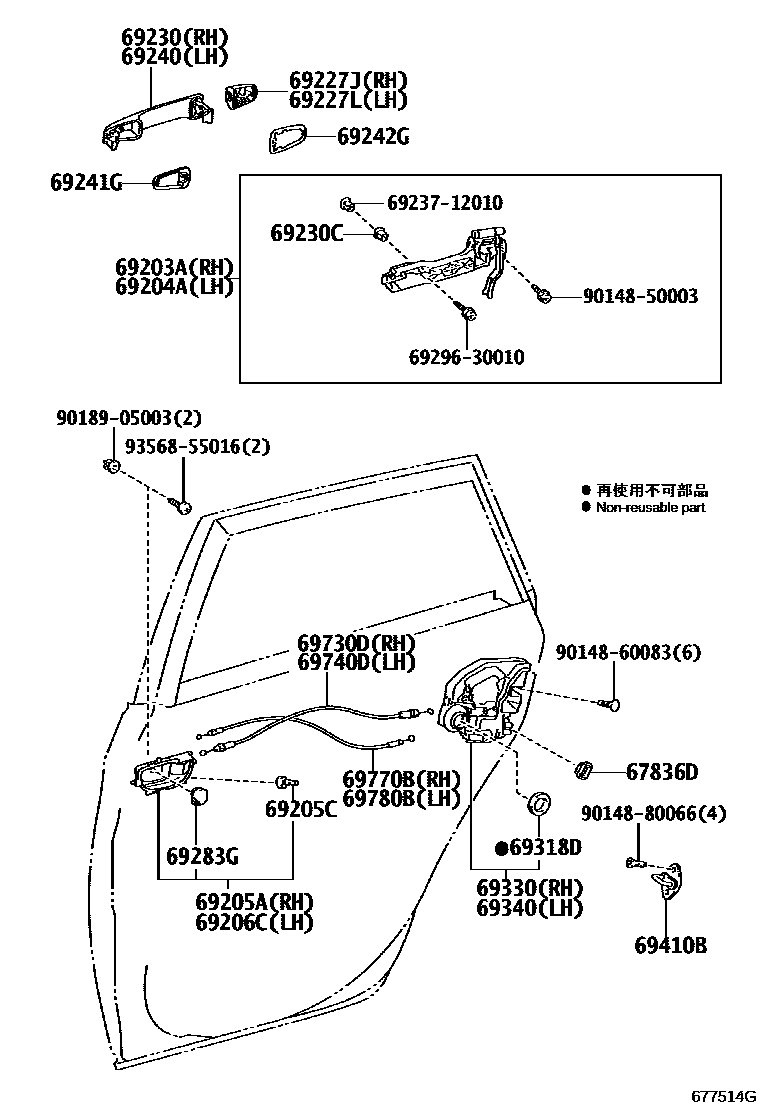

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM2#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,3R3
ORANGE ME.,4R8
CITRUS M.M.,6W2
BLUE ME.,8X7
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,3R3
ORANGE ME.,4R8
CITRUS M.M.,6W2
BLUE ME.,8X7
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,3R3
ORANGE ME.,4R8
CITRUS M.M.,6W2
BLUE ME.,8X7
69230CBUSH(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,3R3
ORANGE ME.,4R8
CITRUS M.M.,6W2
BLUE ME.,8X7
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283GPLUG, REAR DOOR INSIDE HANDLE BEZEL
BLACK,TRIM2#
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
6923712010RETAINER, DOOR OUTSIDE HANDLE
main69237-12010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356855016
main93568-55016
29 parts on this diagram · 1 diagram in section
