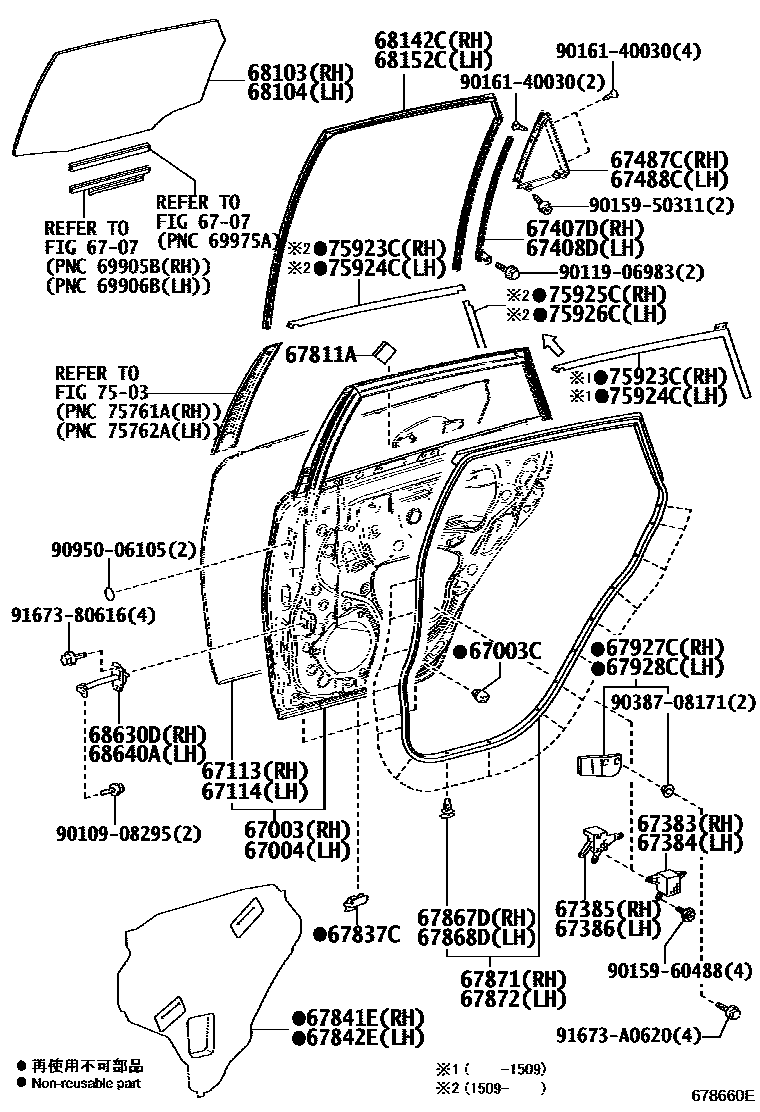

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
6707REAR DOOR WINDOW REGULATOR & HINGE
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67383BRACKET, REAR DOOR INSIDE PANEL, NO.2 RH
67384BRACKET, REAR DOOR INSIDE PANEL, NO.2 LH
67385BRACKET, SLIDE DOOR INSIDE PANEL, NO.3 RH
67386BRACKET, SLIDE DOOR INSIDE PANEL, NO.3 LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67487CSEAL, REAR DOOR REAR GUIDE, RH
67488CSEAL, REAR DOOR REAR GUIDE, LH
67811APAD, REAR DOOR SILENCER
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67927CCUSHION, SEPARATOR DOOR STIFFENER, NO.1
67928CCUSHION, SEPARATOR DOOR STIFFENER, NO.2
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
7503SIDE MOULDING
75925CTAPE, BLACK OUT, NO.3 RH
75926CTAPE, BLACK OUT, NO.3 LH
9010908295
main90109-08295
9011906983
main90119-06983
9015950311
main90159-50311
9015960488
main90159-60488
9016140030
main90161-40030
9038708171
main90387-08171
9095006105
main90950-06105
9167380616
main91673-80616
91673A0620
main91673-A0620
44 parts on this diagram · 2 diagrams in section
