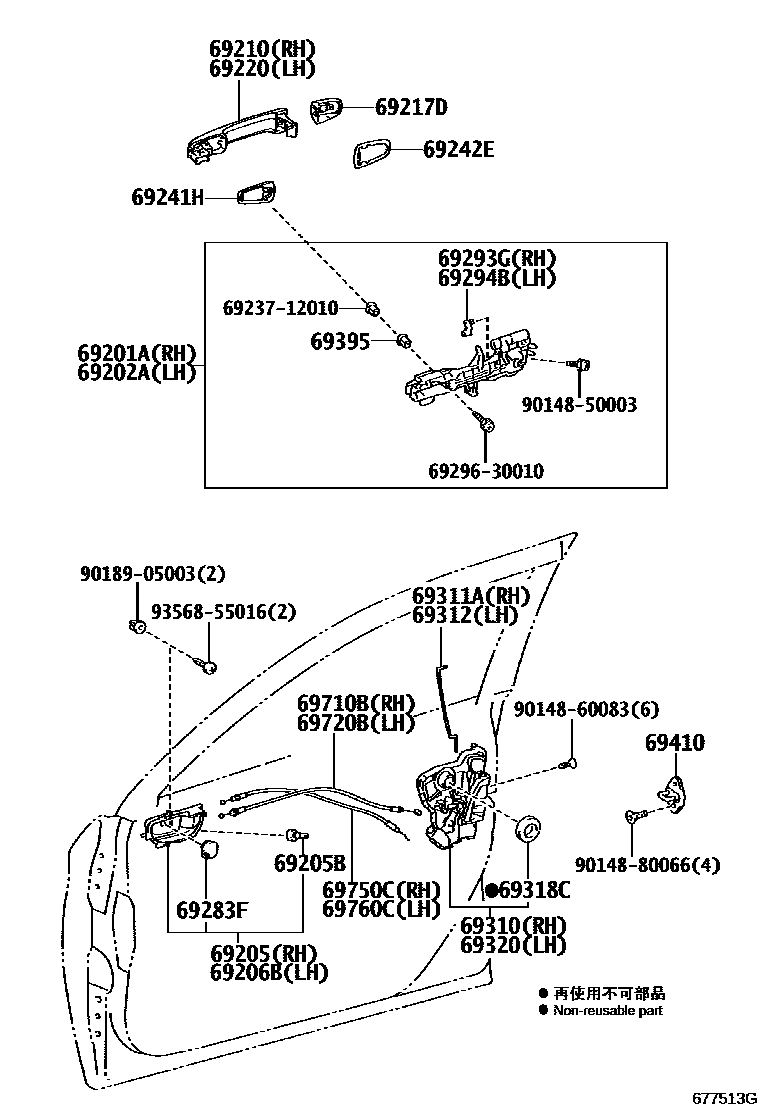

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,3R3
ORANGE ME.,4R8
CITRUS M.M.,6W2
BLUE ME.,8X7
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
WHITE PEARL CS.,070,DRIVER SIDE
SILVER ME.,1F7,DRIVER SIDE
BLACK MC.,209,DRIVER SIDE
RED M.M.,3R3,DRIVER SIDE
ORANGE ME.,4R8,DRIVER SIDE
CITRUS M.M.,6W2,DRIVER SIDE
BLUE ME.,8X7,DRIVER SIDE
WHITE PEARL CS.,070,PASSENGER SIDE
SILVER ME.,1F7,PASSENGER SIDE
BLACK MC.,209,PASSENGER SIDE
RED M.M.,3R3,PASSENGER SIDE
ORANGE ME.,4R8,PASSENGER SIDE
CITRUS M.M.,6W2,PASSENGER SIDE
BLUE ME.,8X7,PASSENGER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,3R3
ORANGE ME.,4R8
CITRUS M.M.,6W2
BLUE ME.,8X7
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283FPLUG, FRONT DOOR INSIDE HANDLE BEZEL
BLACK,TRIM2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
69395BUSH(FOR DOOR OUTSIDE HANDLE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
6923712010RETAINER, DOOR OUTSIDE HANDLE
main69237-12010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356855016
main93568-55016
31 parts on this diagram · 1 diagram in section
