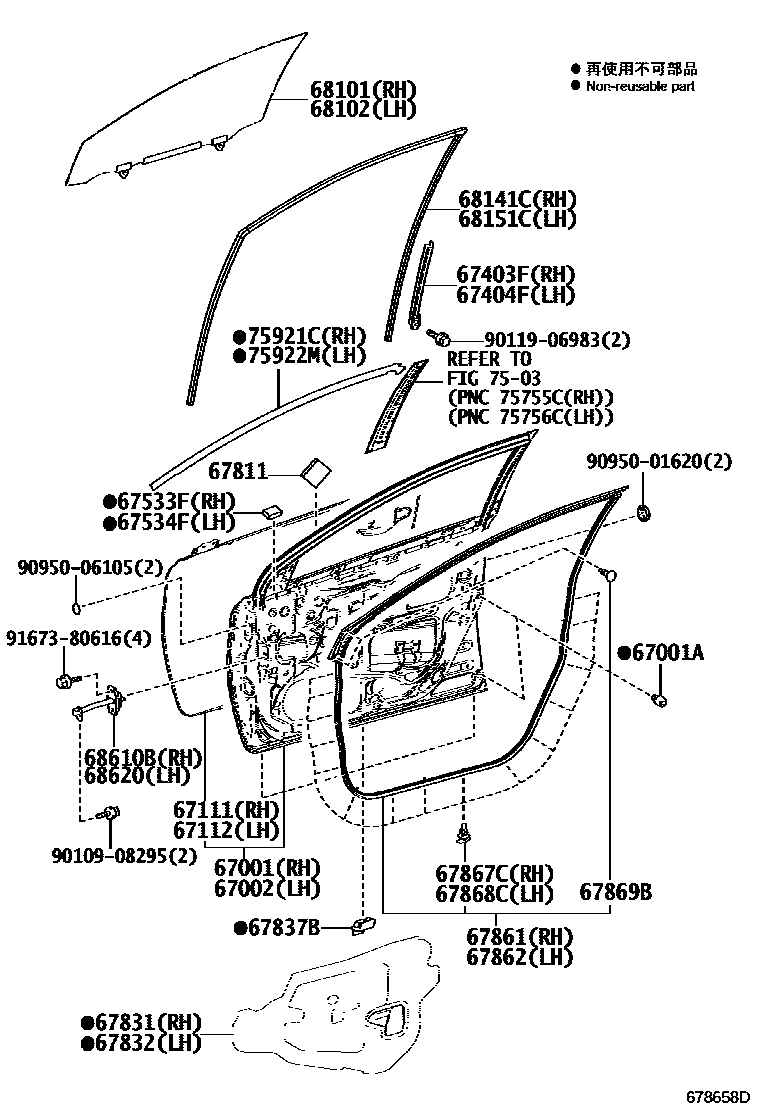

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-12B90iZRE186201506

67001ACUSHION, FRONT DOOR PANEL

main90541-09143×4iZRE186201506

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-12B90iZRE186201506

67111PANEL, FRONT DOOR, OUTER RH

main67111-12730iZRE186201506

67112PANEL, FRONT DOOR, OUTER LH

main67112-12720iZRE186201506

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-12290iZRE186201506

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-12280iZRE186201506

67533FPAD, FRONT DOOR LOWER FRAME GARNISH, RH

main69759-12110iZRE186201506

67534FPAD, FRONT DOOR LOWER FRAME GARNISH, LH

main69759-12110iZRE186201506

67811PAD, FRONT DOOR SILENCER

main67811-12180×2iZRE186201506

80 X 80

main67811-12190×2iZRE186201506

100 X 100

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-12760iZRE186201506

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-12540iZRE186201506

67837BSEAL, FRONT DOOR DUST PROOF

main67837-12120×6iZRE186201506-201512

main67837-48050×6iZRE186201601

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-12A80iZRE186201506

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-12A80iZRE186201506

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×15iZRE186201506

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×15iZRE186201506

67869BCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030×4iZRE186201506

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-12D10iZRE186201506

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-12D10iZRE186201506

68141CRUN, FRONT DOOR GLASS, RH

main68141-12590iZRE186201506-201512

main68141-12591iZRE186201601

68151CRUN, FRONT DOOR GLASS, LH

main68151-12290iZRE186201506-201512

main68151-12291iZRE186201601

68610BCHECK ASSY, FRONT DOOR, RH

main68610-12240iZRE186201506

68620CHECK ASSY, FRONT DOOR, LH

main68610-12240iZRE186201506

7503SIDE MOULDING

→ Go to FIG 75-03

75921CTAPE, BLACK OUT, NO.1 RH

main75921-12110iZRE186201506

75922MTAPE, BLACK OUT, NO.1 LH

main75922-12110iZRE186201506

9010908295

main90109-08295

9011906983

main90119-06983

9095001620

main90950-01620

9095006105

main90950-06105

9167380616

main91673-80616

32 parts on this diagram · 2 diagrams in section
