ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-12M00-B0iZRE186201506-201608

LT.GRAY,TRIM2#

main63310-12N00-B0iZRE186201608-201805

LT.GRAY,TRIM2#

63310HCLIP(FOR ROOF HEADLINING)

main90467-05164-B0×3iZRE186201506-201805

LT.GRAY,TRIM2#

63341PAD, ROOF SILENCER, NO.1

main63341-12280iZRE186201506

63342PAD, ROOF SILENCER, NO.2

main63342-12350×2iZRE186201506

63343PAD, ROOF SILENCER, NO.3

main63341-12290iZRE186201506

63344PAD, ROOF SILENCER, NO.4

main63341-48060iZRE186201506

63345PAD, ROOF SILENCER, NO.5

main63345-12040iZRE186201506

66416SPACER, SIDE RAIL, REAR NO.3 RH

main66416-12030iZRE186201506

66426BSPACER, SIDE RAIL, REAR NO.3 LH

main66426-12030iZRE186201506

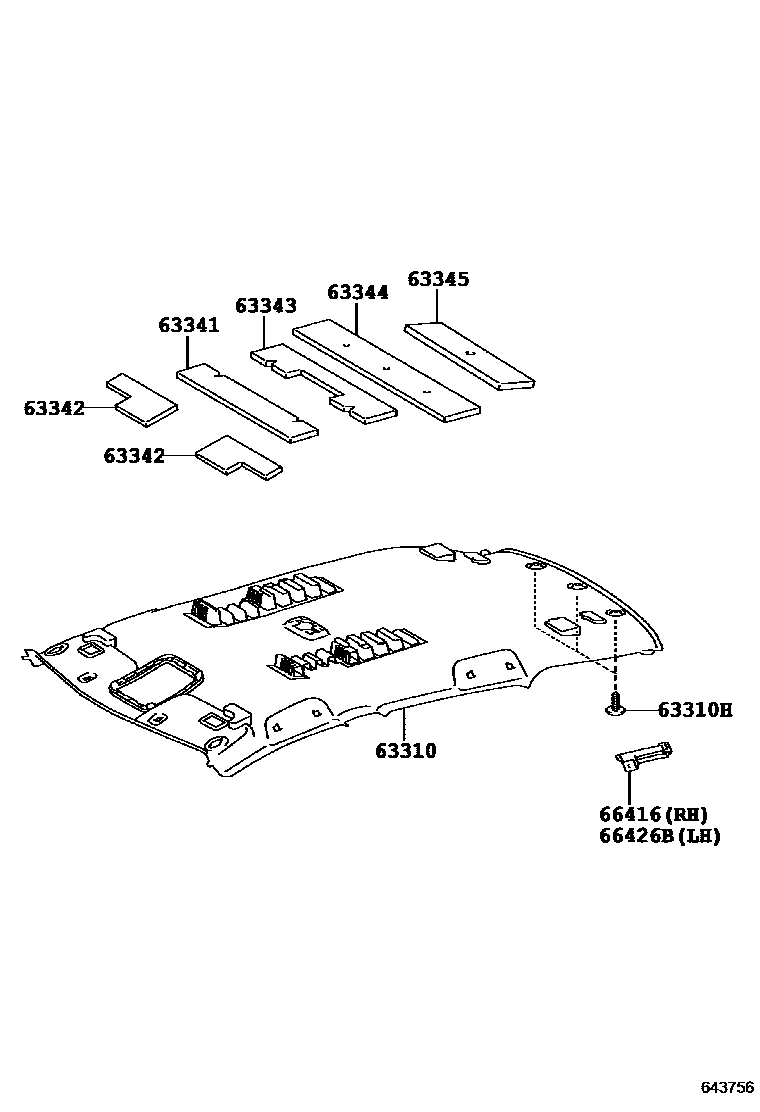

9 parts on this diagram · 1 diagram in section
