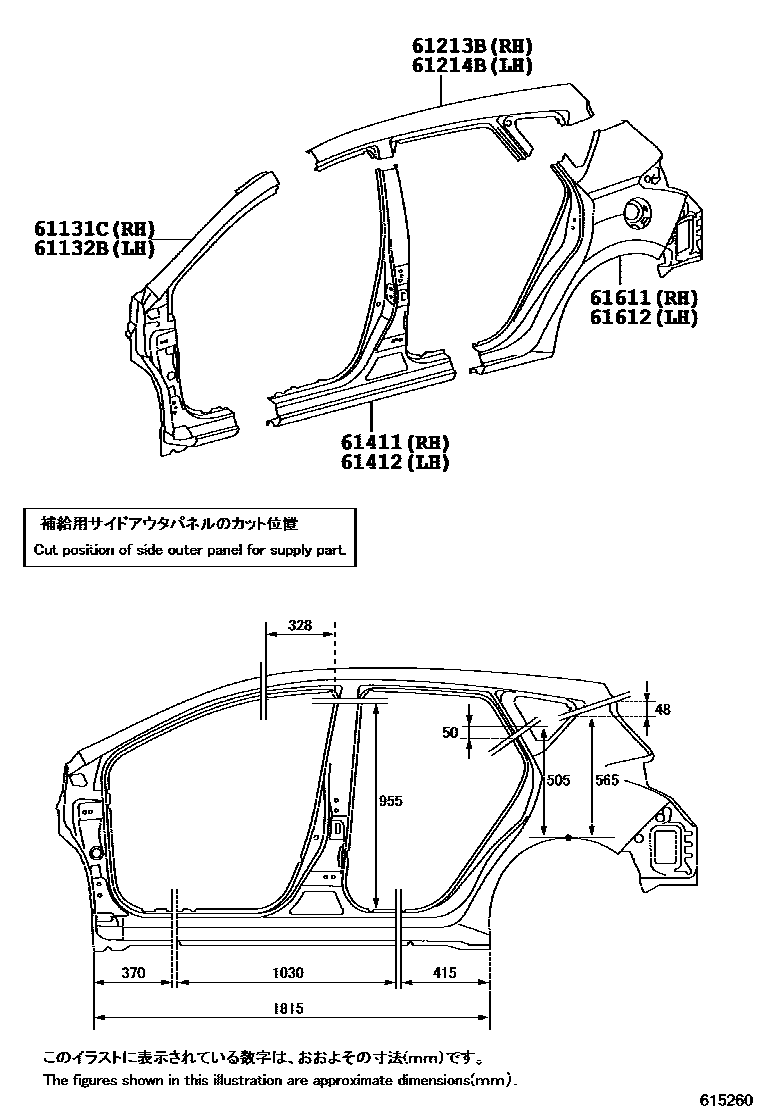

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

61131CPILLAR, FRONT BODY, OUTER RH

main61131-12850iZRE186201506

61132BPILLAR, FRONT BODY, OUTER LH

main61132-12820iZRE186201506

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-12050iZRE186201506

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-12050iZRE186201506

61411PANEL, ROCKER, OUTER RH

main61311-12510iZRE186201506

61412PANEL, ROCKER, OUTER LH

main61312-12550iZRE186201506

61611PANEL, QUARTER, RH

main61601-12B70iZRE186201506

61612PANEL, QUARTER, LH

main61602-12B70iZRE186201506

8 parts on this diagram · 3 diagrams in section
