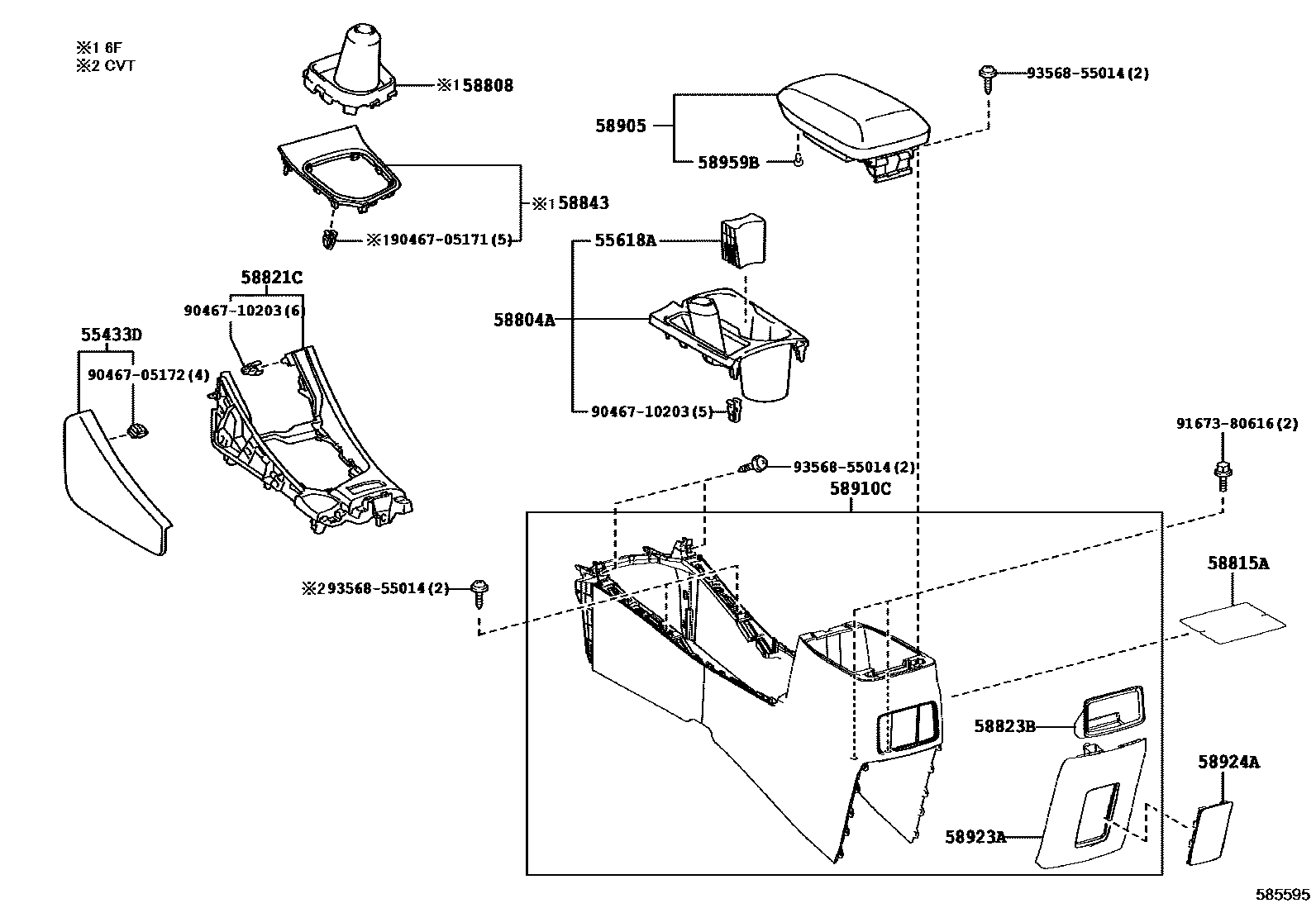

CONSOLE BOX & BRACKET

55433DPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2

main55433-12340-C4iZRE186201506-201805

BLACK,TRIM2#

55618AHOLDER, CONSOLE BOX CUP

main55618-12090-C0iZRE186201506-201805

BLACK,TRIM2#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-12200-C1iZRE186201506-201805

BLACK,TRIM2#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-12450-B0iZRE186..6F201506-201805

GRAY,TRIM2#

58815ACARPET, CONSOLE BOX

main58815-12121iZRE186201506

58821CPANEL, CONSOLE, UPPER

main58821-12210-C0iZRE186201506-201805

BLACK,TRIM2#

58823BBOX, CONSOLE COMPARTMENT

main58823-12030-C0iZRE186201506-201805

BLACK,TRIM2#

58843BEZEL, SHIFTING HOLE

main58843-12300iZRE186..6F201506

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-12750-C2iZRE186201506-201508

BLACK/BLACK/GRAY,TRIM2#

main58905-12A20-C0iZRE186201508-201805

BLACK/GRAY,TRIM2#

58910CBOX ASSY, CONSOLE, REAR

main58910-12A60-C0iZRE186201506-201805

BLACK,TRIM2#

58923APANEL, CONSOLE REAR END

main58923-12200-C0iZRE186201506-201805

BLACK,TRIM2#

58924APANEL, CONSOLE REAR END, NO.2

main58924-12010-C0iZRE186201506-201805

BLACK,TRIM2#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main90541-03078iZRE186201506

9046705171

main90467-05171

9046705172

main90467-05172

9046710203

main90467-10203

9167380616

main91673-80616

9356855014

main93568-55014

18 parts on this diagram · 1 diagram in section
