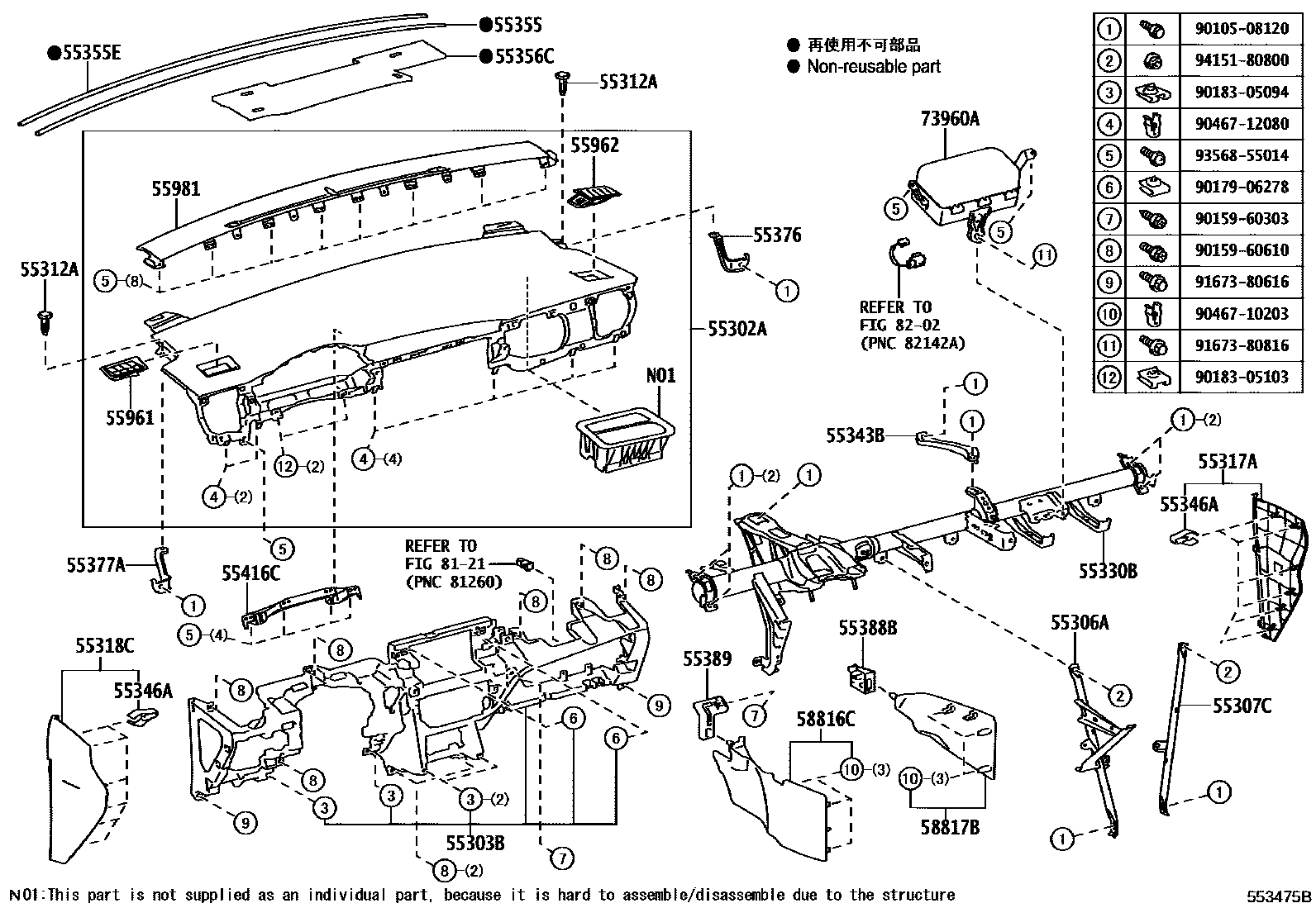

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-12260-C0iZRE186201506-201805

BLACK,TRIM2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-12500-C0iZRE186201506-201805

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12490iZRE186201506

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-12390iZRE186201506

55312ACLIP, INSTRUMENT PANEL

main52161-16010×2iZRE186201506

55317APANEL, INSTRUMENT SIDE, RH

main55317-12200-C0iZRE186201506-201805

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-12140-C0iZRE186201506-201805

BLACK,TRIM2#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-12560iZRE186201506-201608

main55330-12610iZRE186201608

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-12070iZRE186201506

55346ACLIP, INSTRUMENT PANEL, NO.2

main90467-13082-A0×12iZRE186201506-201805

MELLOW WHITE

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-12230iZRE186201506

55355ECUSHION, INSTRUMENT PANEL

main55355-12220iZRE186201506

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-12220iZRE186201506

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-12150iZRE186201506

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-12140iZRE186201506

55388BBRACKET, CONSOLE MOUNTING, RH

main55388-42010iZRE186201506

55389BRACKET, CONSOLE MOUNTING, LH

main55389-42010iZRE186201506

55416CRETAINER, INSTRUMENT CLUSTER FINISH PANEL

main55416-12140iZRE186201506

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-12240-C0iZRE186201506-201805

BLACK,TRIM2#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-12210-C0iZRE186201506-201805

BLACK,TRIM2#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-12200-C0iZRE186201506-201601

BLACK,TRIM2#

main55981-12210-C0iZRE186201601-201805

BLACK,TRIM2#

58816CINSERT, CONSOLE BOX, FRONT NO.1

main58816-12130-C0iZRE186201506-201805

BLACK,TRIM2#

58817BINSERT, CONSOLE BOX, FRONT NO.2

main58817-12100-C0iZRE186201506-201805

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-12210iZRE186201506-201711

main73960-12211iZRE186201712

8121INTERIOR LAMP

→ Go to FIG 81-21

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508120

main90105-08120

9015960303

main90159-60303

9015960610

main90159-60610

9017906278

main90179-06278

9018305094

main90183-05094

9018305103

main90183-05103

9046710203

main90467-10203

9046712080

main90467-12080

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

38 parts on this diagram · 4 diagrams in section
