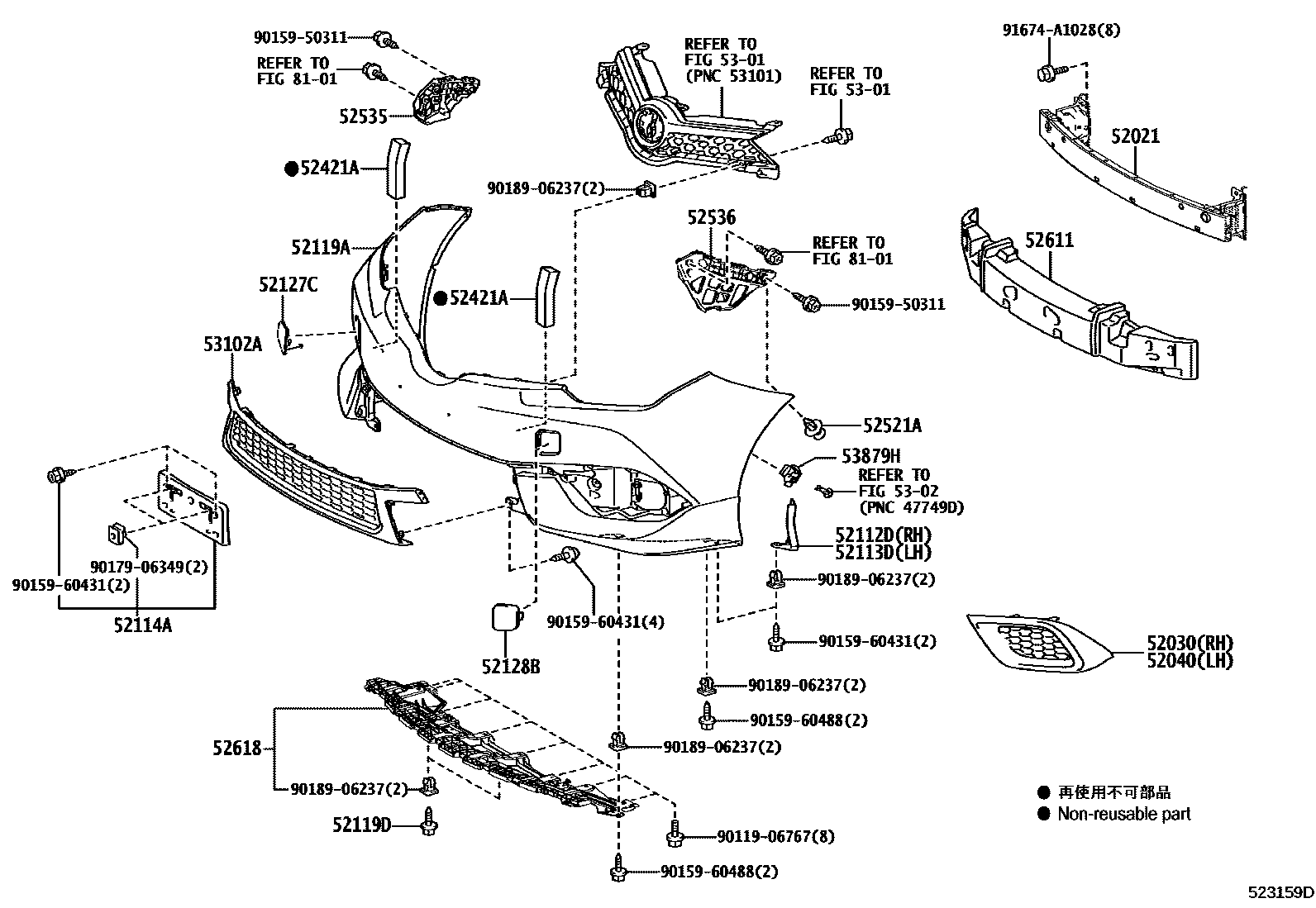

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-12360iZRE186201506-201805

52030COVER ASSY, FRONT BUMPER HOLE, RH

main52030-12090iZRE186201506

NO PAINT REQ.

52040COVER ASSY, FRONT BUMPER HOLE, LH

main52040-12090iZRE186201506

NO PAINT REQ.

52112DEXTENSION, FRONT BUMPER, RH

main52112-12270iZRE186201506

NO PAINT REQ.

52113DEXTENSION, FRONT BUMPER, LH

main52113-12230iZRE186201506

NO PAINT REQ.

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-12210iZRE186201506

52119ACOVER, FRONT BUMPER

main52119-12982iZRE186201506-201510

PAINT REQ.

main52119-12990iZRE186201510-201805

PAINT REQ.

52119DSCREW, NO.1

main90159-60488×2iZRE186201506-201805

52127CCOVER, FRONT BUMPER HOLE

main52127-12912iZRE186201506-201805

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-12914iZRE186201506-201805

52421APAD, FRONT BUMPER

main52422-12140×2iZRE186201506

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05170×2iZRE186201506

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-12130iZRE186201506

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-12130iZRE186201506

52611ABSORBER, FRONT BUMPER ENERGY

main52611-12370iZRE186201506

52618ABSORBER, FRONT BUMPER, LOWER

main52618-12030iZRE186201506

5301RADIATOR GRILLE

→ Go to FIG 53-01

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

53102AGRILLE SUB-ASSY, RADIATOR, LWR

main53102-12100iZRE186201506

53879HRETAINER, FRONT FENDER LINER

main53879-50020×2iZRE186201506

8101HEADLAMP

→ Go to FIG 81-01

9011906767

main90119-06767

9015950311

main90159-50311

9015960431

main90159-60431

9015960488

main90159-60488

9017906349

main90179-06349

9018906237

main90189-06237

91674A1028

main91674-A1028

28 parts on this diagram · 1 diagram in section
