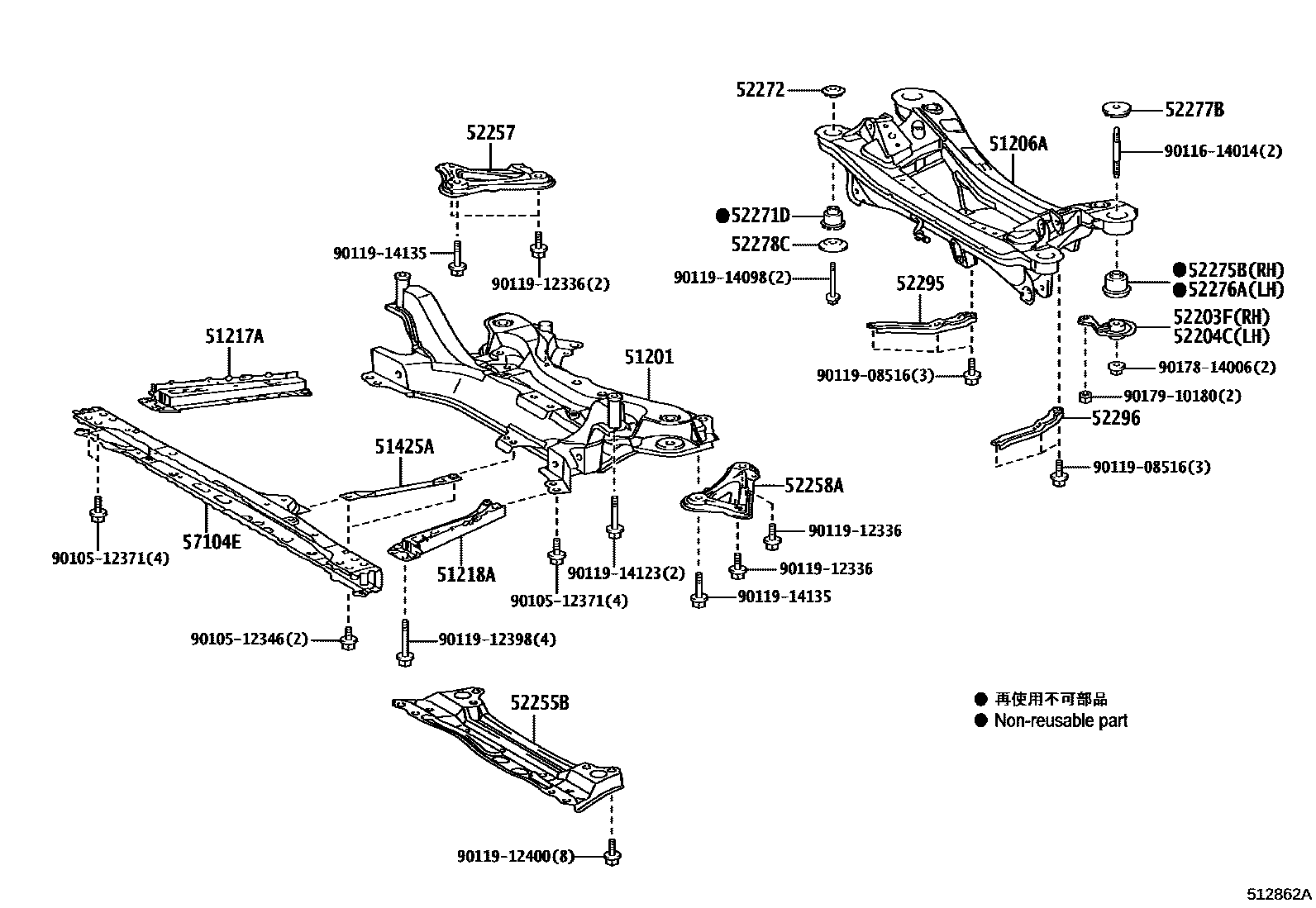

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1ENGINE UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12442iZRE186201506

sub51201-78010

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-75022iZRE186201506

51217AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH

main51107-12010iZRE186201506

51218AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH

main51108-12010iZRE186201506

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51425-12060iZRE186201506

52203FSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH

main52203-12010iZRE186201506

52204CSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH

main52203-12010iZRE186201506

52255BBRACE, FRONT SUSPENSION MEMBER

main52255-76010iZRE186201506

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-21040iZRE186201506

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-21040iZRE186201506

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-75010×2iZRE186201506

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-75010×2iZRE186201506

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-75010iZRE186201506

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-75010iZRE186201506

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-75010×2iZRE186201506

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-75010×2iZRE186201506

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-12051iZRE186201506

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-12051iZRE186201506

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-47020iZRE186201506

9010512346

main90105-12346

9010512371

main90105-12371

9011614014

main90116-14014

9011908516

main90119-08516

9011912336

main90119-12336

9011912398

main90119-12398

9011912400

main90119-12400

9011914098

main90119-14098

9011914123

main90119-14123

9011914135

main90119-14135

9017814006

main90178-14006

9017910180

main90179-10180

31 parts on this diagram · 2 diagrams in section
