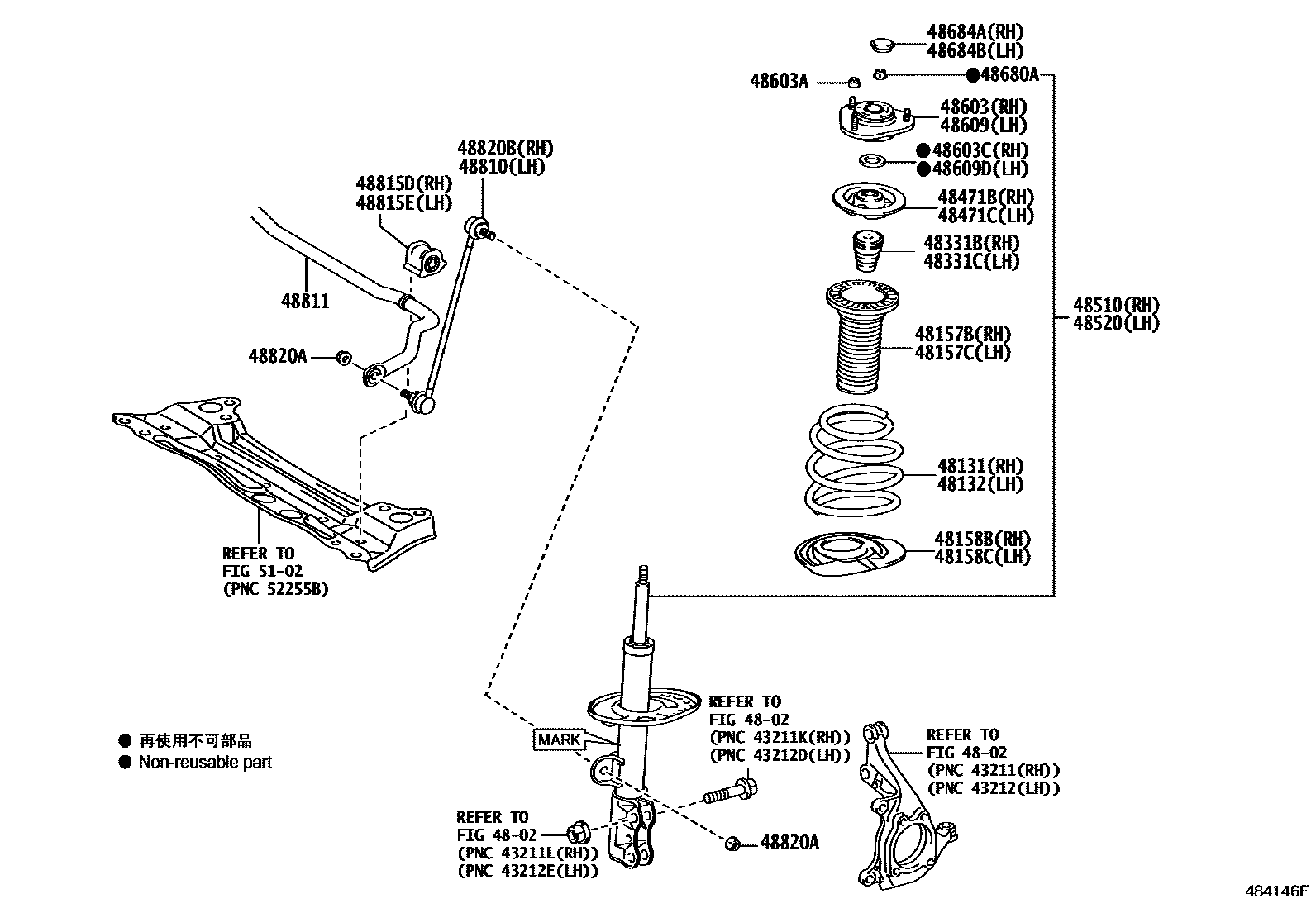

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-12F30iZRE186201506

48132SPRING, FRONT COIL, LH

main48131-12F30iZRE186201506

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-12110iZRE186201506-201608

main48157-12111iZRE186201609

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-12110iZRE186201506-201608

main48157-12111iZRE186201609

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-12060iZRE186201506

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-12060iZRE186201506

48331BBUMPER, FRONT SPRING, RH

main48331-12250iZRE186201506

48331CBUMPER, FRONT SPRING, LH

main48331-12250iZRE186201506

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-42010iZRE186201506

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-42010iZRE186201506

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80761iZRE186201506

MARK 48510-12F40

sub48510-80758

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80438iZRE186201506

MARK 48520-12F40

sub48520-80435

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-12600iZRE186201506

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10030×6iZRE186201506

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22002iZRE186201506

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-12600iZRE186201506

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22002iZRE186201506

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90179-14015×2iZRE186201506

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52010iZRE186201506

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52010iZRE186201506

48810LINK ASSY, FRONT STABILIZER, LH

main48820-42030iZRE186201506

48811BAR, STABILIZER, FRONT

main48811-12A10iZRE186201506

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-72020iZRE186201506

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-72010iZRE186201506

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151×4iZRE186201506

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-42030iZRE186201506

5102

28 parts on this diagram · 1 diagram in section
