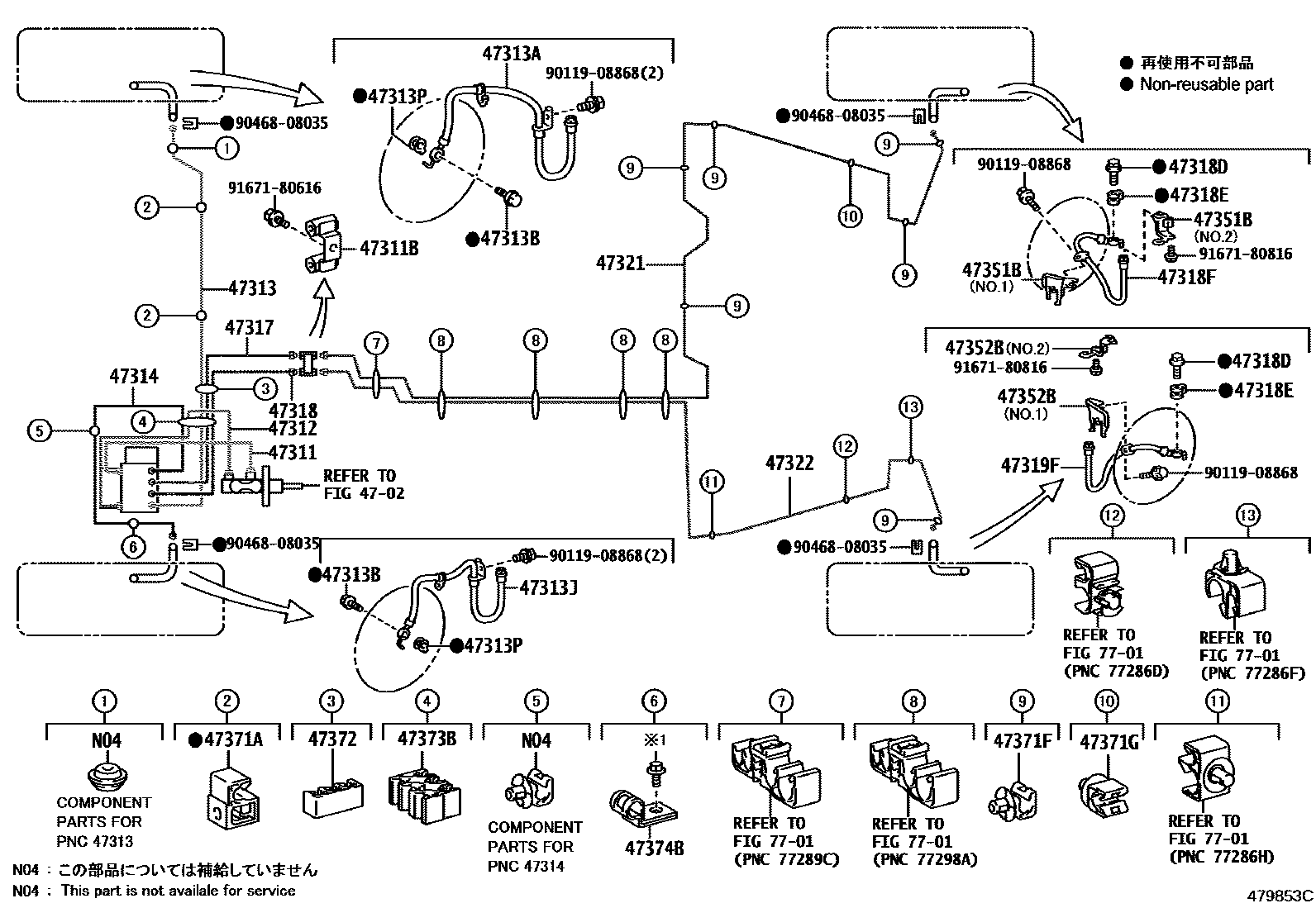

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-12C60iZRE186201506

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iZRE186201506

47312TUBE, FRONT BRAKE, NO.2

main47312-12780iZRE186201506

47313TUBE, FRONT BRAKE, NO.3

main47313-12A30iZRE186201506

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02G30iZRE186201506

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iZRE186201506

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02G31iZRE186201506

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iZRE186201506

47314TUBE, FRONT BRAKE, NO.4

main47314-12790iZRE186201506

47317TUBE, FRONT BRAKE, NO.7

main47317-12600iZRE186201506

47318TUBE, FRONT BRAKE, NO.8

main47318-12740iZRE186201506

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iZRE186201506

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iZRE186201506

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02G32iZRE186201506

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02G33iZRE186201506

47321TUBE, REAR BRAKE, NO.1

main47321-12440iZRE186201506

47322TUBE, REAR BRAKE, NO.2

main47322-12620iZRE186201506-201805

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-12210iZRE186201506

NO.1

main47351-12220iZRE186201506

NO.2

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-12180iZRE186201506

NO.1

main47352-12190iZRE186201506

NO.2

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01C82×2iZRE186201506

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D17×6iZRE186201506-201805

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D29iZRE186201506-201805

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D92iZRE186201506

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E21iZRE186201506

47374BCLAMP, BRAKE TUBE, NO.4

main90461-10781iZRE186201506

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908868

main90119-08868

9046808035

main90468-08035

9167180616

main91671-80616

9167180816

main91671-80816

31 parts on this diagram · 2 diagrams in section
