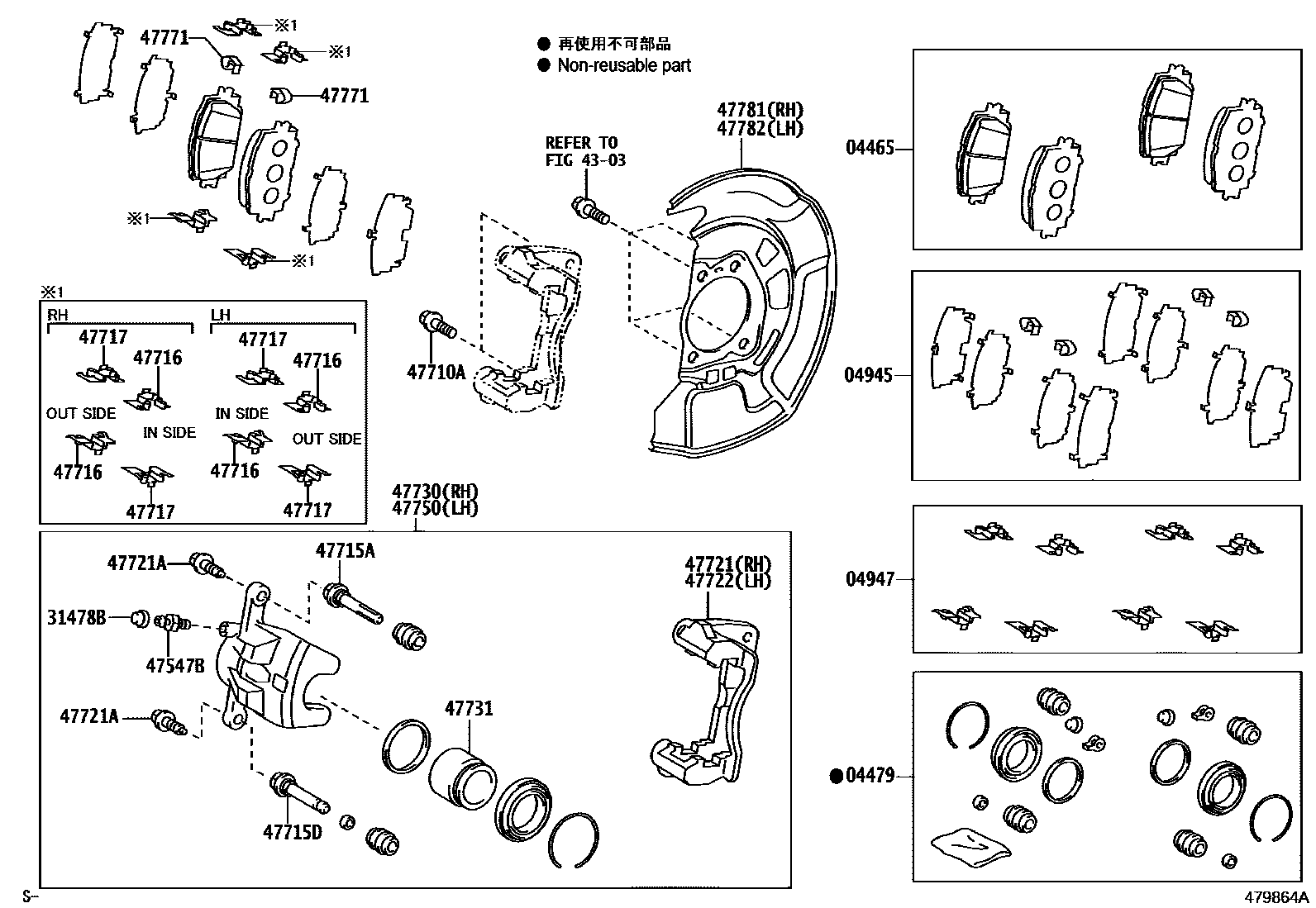

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-42180iZRE186201506

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33100iZRE186201506

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-42060iZRE186201506

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iZRE186201506

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iZRE186201506

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iZRE186201506

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iZRE186201506-201805

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190iZRE186201506

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10iZRE186201506

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-52191iZRE186201506

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-52191iZRE186201506

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-42091iZRE186201506

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iZRE186201506

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-42091iZRE186201506

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-42091iZRE186201506

47731PISTON, FRONT DISC BRAKE

main47731-12A70iZRE186201506

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-42091iZRE186201506

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-52191iZRE186201506

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42040iZRE186201506-201805

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42040iZRE186201506-201805

21 parts on this diagram · 1 diagram in section
