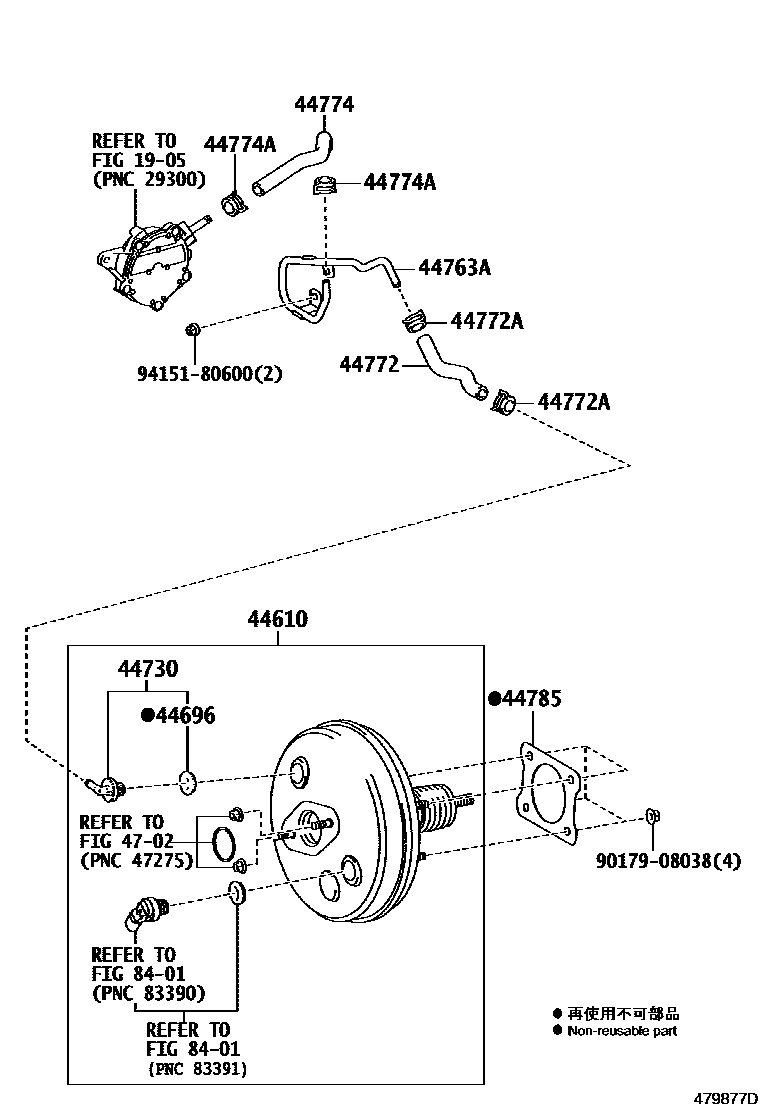

BRAKE BOOSTER & VACUUM TUBE

1905VACUUM PUMP

→ Go to FIG 19-05

44610BOOSTER ASSY, BRAKE

main44610-09C80iZRE186201506

44696GROMMET, CHECK VALVE

main90480-24015iZRE186201506-201805

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-09070iZRE186201506

44763ATUBE, HOSE TO HOSE, NO.1

main44763-12550iZRE186201506

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12580iZRE186201506-201805

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014×2iZRE186201506

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12840iZRE186201506

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014×2iZRE186201506

44785GASKET, BRAKE BOOSTER

main44785-12040iZRE186201506

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017908038

main90179-08038

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
