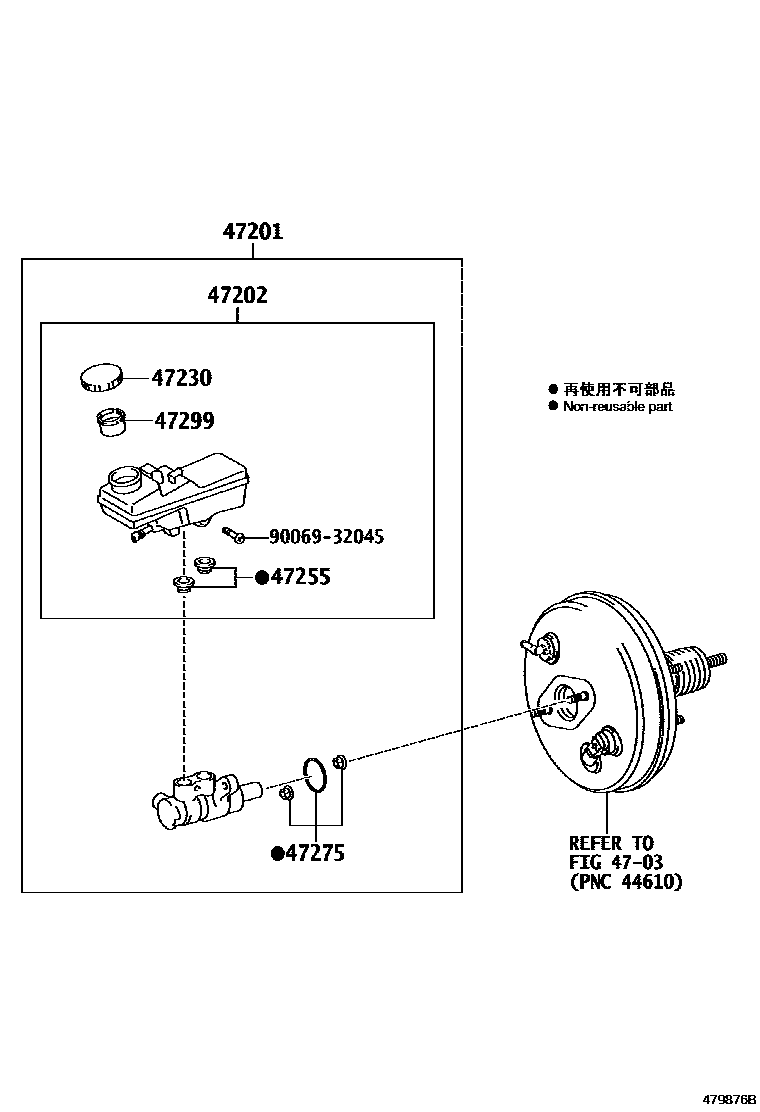

BRAKE MASTER CYLINDER

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09800iZRE186201506

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09220iZRE186201506

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02220iZRE186201506

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iZRE186201506

47275GASKET, BRAKE MASTER CYLINDER

main47275-09010iZRE186201506

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iZRE186201506

9006932045

main90069-32045

8 parts on this diagram · 1 diagram in section
