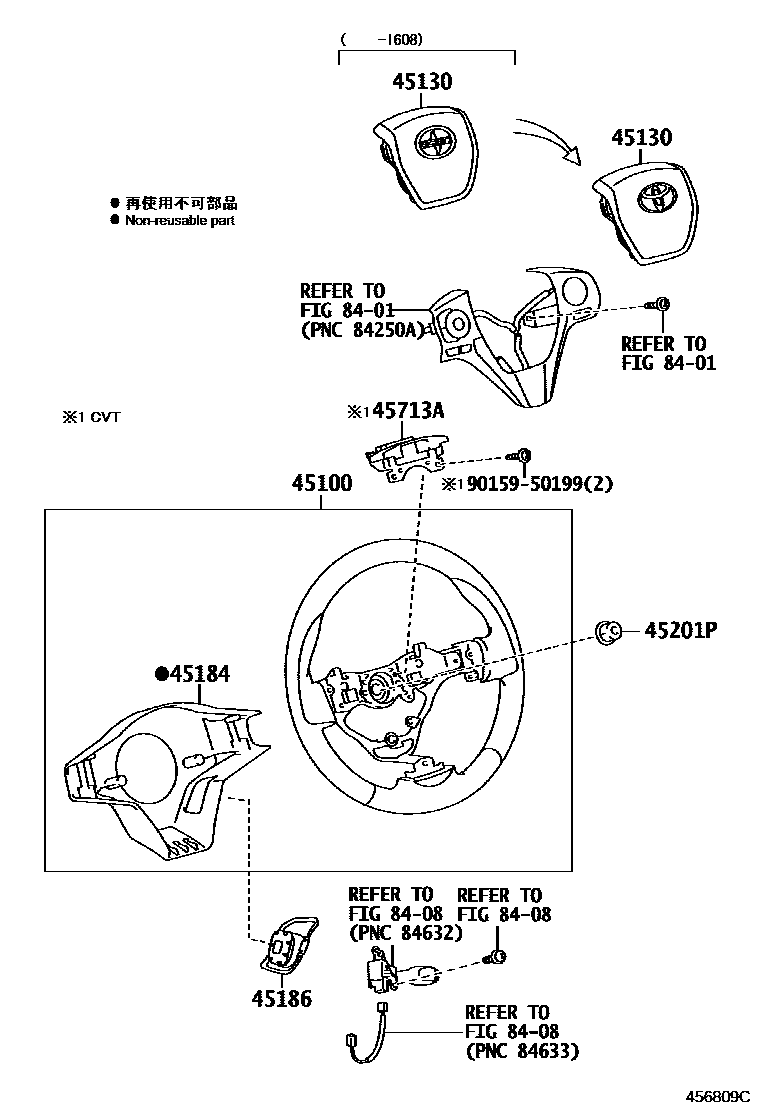

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-12F60-C0iZRE186201506-201805

3-SPOKE,LEATHER,BLACK/GRAY,TRIM2#

45130BUTTON ASSY, HORN

main45130-12D80-C0iZRE186201506-201608

BLACK,TRIM2#

main45130-12E10-C0iZRE186201608-201805

BLACK,TRIM2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-12370-C0iZRE186201506-201805

BLACK,TRIM2#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-12040-C0iZRE186201506-201805

BLACK,TRIM2#

45201PNUT, STEERING WHEEL SET

main90179-12071iZRE186201506

45713ADAMPER, STEERING SHAKE

main45713-12180iZRE186..CVT201506

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9015950199

main90159-50199

9 parts on this diagram · 1 diagram in section
