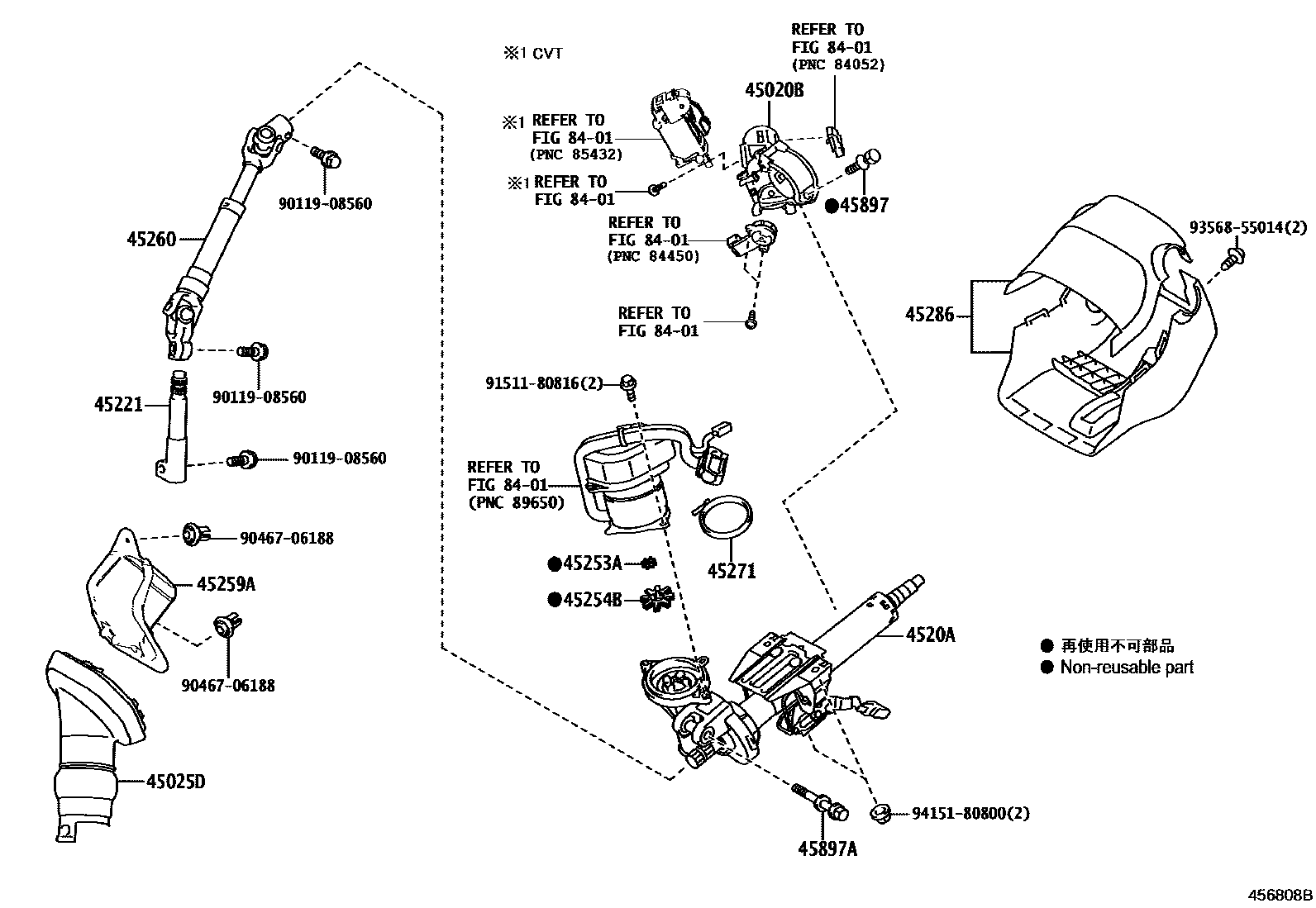

STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-12410iZRE186..CVT201506-201804

main45280-12430iZRE186..6F201506-201805

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12300iZRE186201506

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-12110iZRE186201506

45221SHAFT, STEERING INTERMEDIATE

main45221-12300iZRE186201506

45253ASPACER, ELECTRIC POWER STEERING MOTOR SHAFT

main45253-28130iZRE186201506

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iZRE186201506

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12070iZRE186201506

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-12680iZRE186201506

45271CLAMP, STEERING COLUMN, UPPER

main45271-52040iZRE186201506

45286COVER, STEERING COLUMN

main45286-1A910-C0iZRE186201506-201805

BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020iZRE186201506

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iZRE186201506

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9046706188

main90467-06188

9151180816

main91511-80816

9356855014

main93568-55014

9415180800

main94151-80800

18 parts on this diagram · 1 diagram in section
