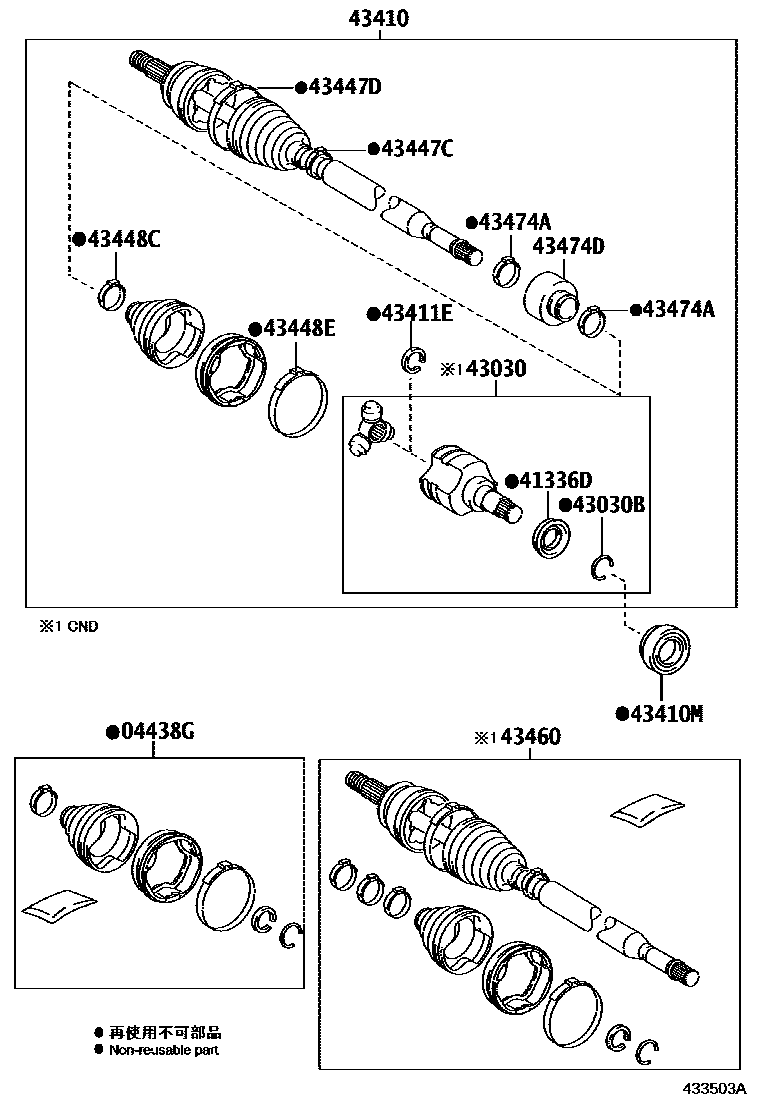

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-12A00iZRE186201506-201509

main04438-12A01iZRE186201509-201805

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12060iZRE186201506

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-12120iZRE186..CND201506-201805

43030BRING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH)

main90521-27005iZRE186201506

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12760iZRE186201506-201805

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35065iZRE186..6F201506-201805

main90311-35069iZRE186..CVT201506-201805

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iZRE186201506-201805

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iZRE186201506

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iZRE186201506

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230iZRE186201506-201805

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180iZRE186201506-201805

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-80153iZRE186..CND201506-201509

main43460-80167iZRE186..CND201509-201805

43474ACLAMP (FOR DRIVE SHAFT DAMPER SETTING)

main42345-12100×2iZRE186201506-201805

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-12140iZRE186201506-201805

14 parts on this diagram · 3 diagrams in section
