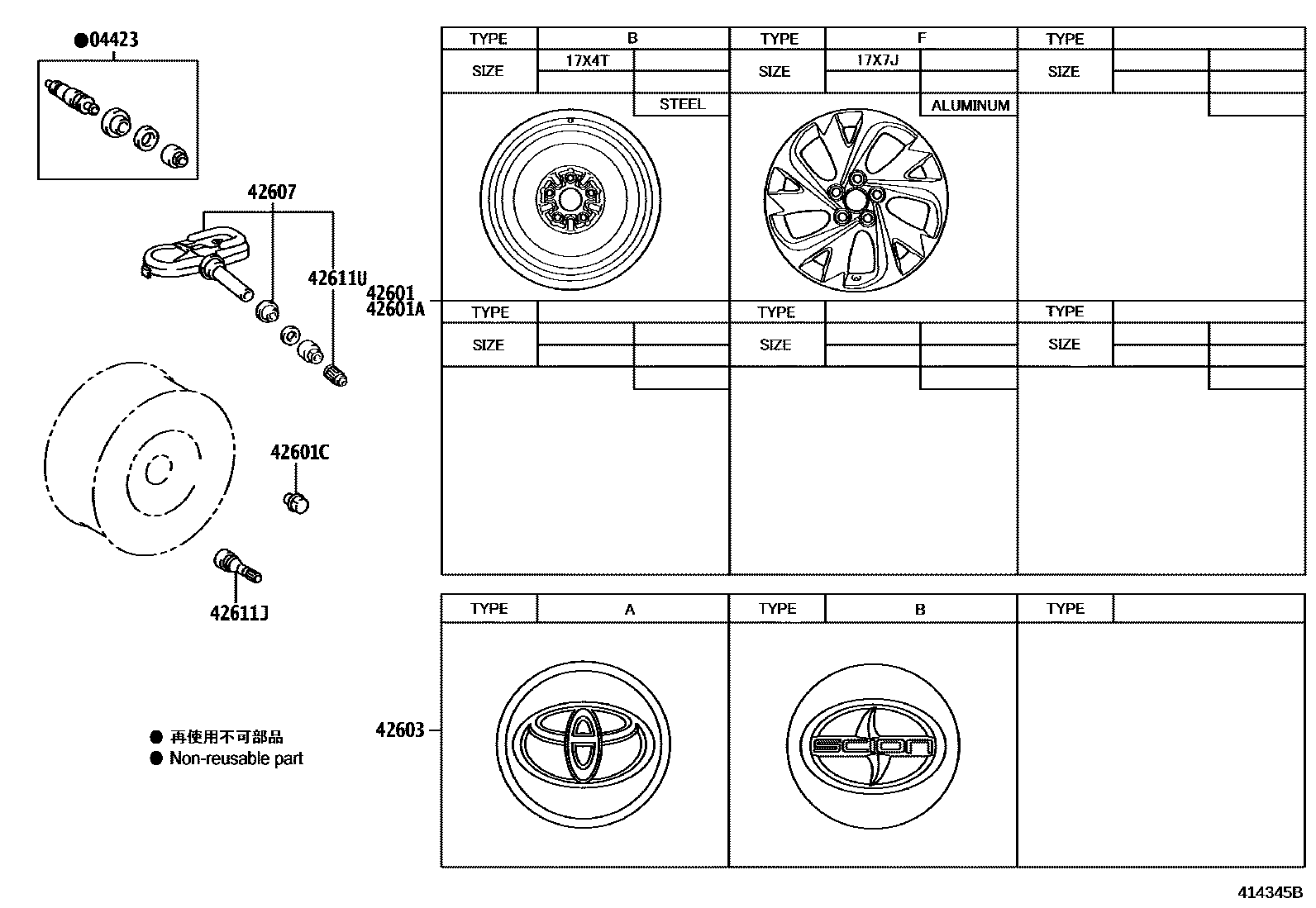

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060×4iZRE186201506

42601WHEEL, DISC

main42611-12D10×4iZRE186201506

17X7J, #,TYPE F:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-75100iZRE186201506

17X4T,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033×20iZRE186201506

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-21070×4iZRE186201506-201608

*ALU,TYPE B:REFER ILLUST.

main42603-48140×4iZRE186201608

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-52020×4iZRE186201506

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iZRE186201506

42611UCAP, TIRE VALVE

main90942-05039×4iZRE186201506

8 parts on this diagram · 1 diagram in section
