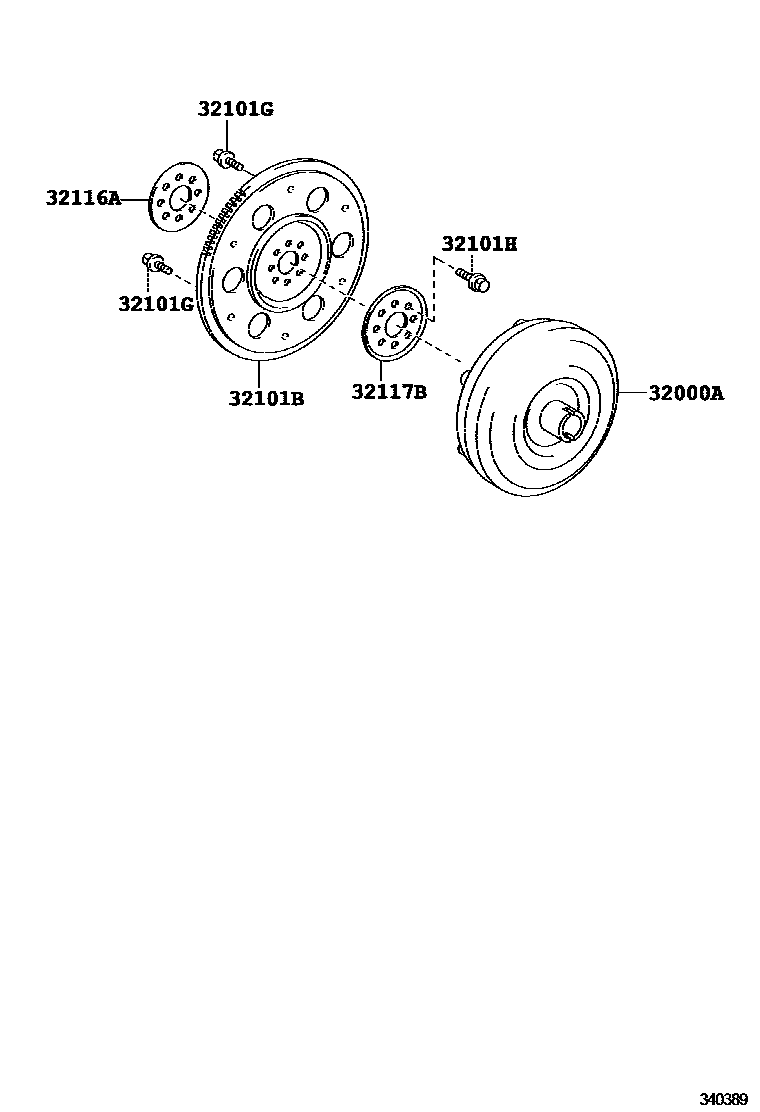

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-12500iZRE186..CVT201506-201805

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12100iZRE186..CVT201506-201805

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iZRE186..CVT201506-201805

*8-1.25PX12-8.4,BLACK

main90119-08498×5iZRE186..CVT201506-201805

*8-1.25PX12-8,YELLOW

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iZRE186..CVT201506-201805

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZRE186..CVT201506-201805

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZRE186..CVT201506-201805

6 parts on this diagram · 1 diagram in section
