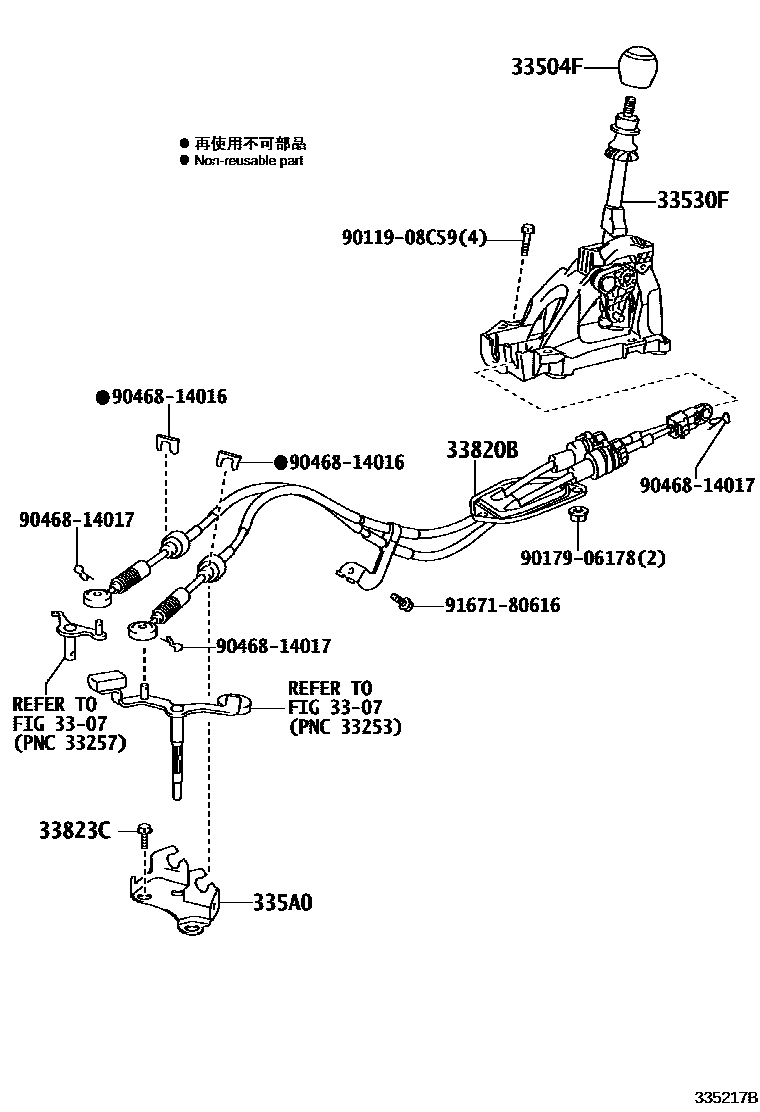

SHIFT LEVER & RETAINER

0001 1 0002 1

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12580-C1supersedes 33504-12680-C0iZRE186..6F201506-201805

SHIFT LEVER & KNOB-LEATHER,BLACK,TRIM2#

main33542-12360-C0supersedes 33542-12500-C0iZRE186..CVT201506-201805

SHIFT LEVER & KNOB-LEATHER,BLACK,TRIM2#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-12C40iZRE186..6F201506

335A0BRACKET ASSY, CONTROL CABLE

main335A0-20010iZRE186..6F201506

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-12E70iZRE186..6F201506

main33820-12G11iZRE186..CVT201506

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12190iZRE186..CVT201506

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079×2iZRE186..CVT201506

main90119-08C60×3iZRE186..6F201506

9011908C59

main90119-08C59

9017906178

main90179-06178

9046814016

main90468-14016

9046814017

main90468-14017

9167180616

main91671-80616

12 parts on this diagram · 2 diagrams in section
