ALTERNATOR

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

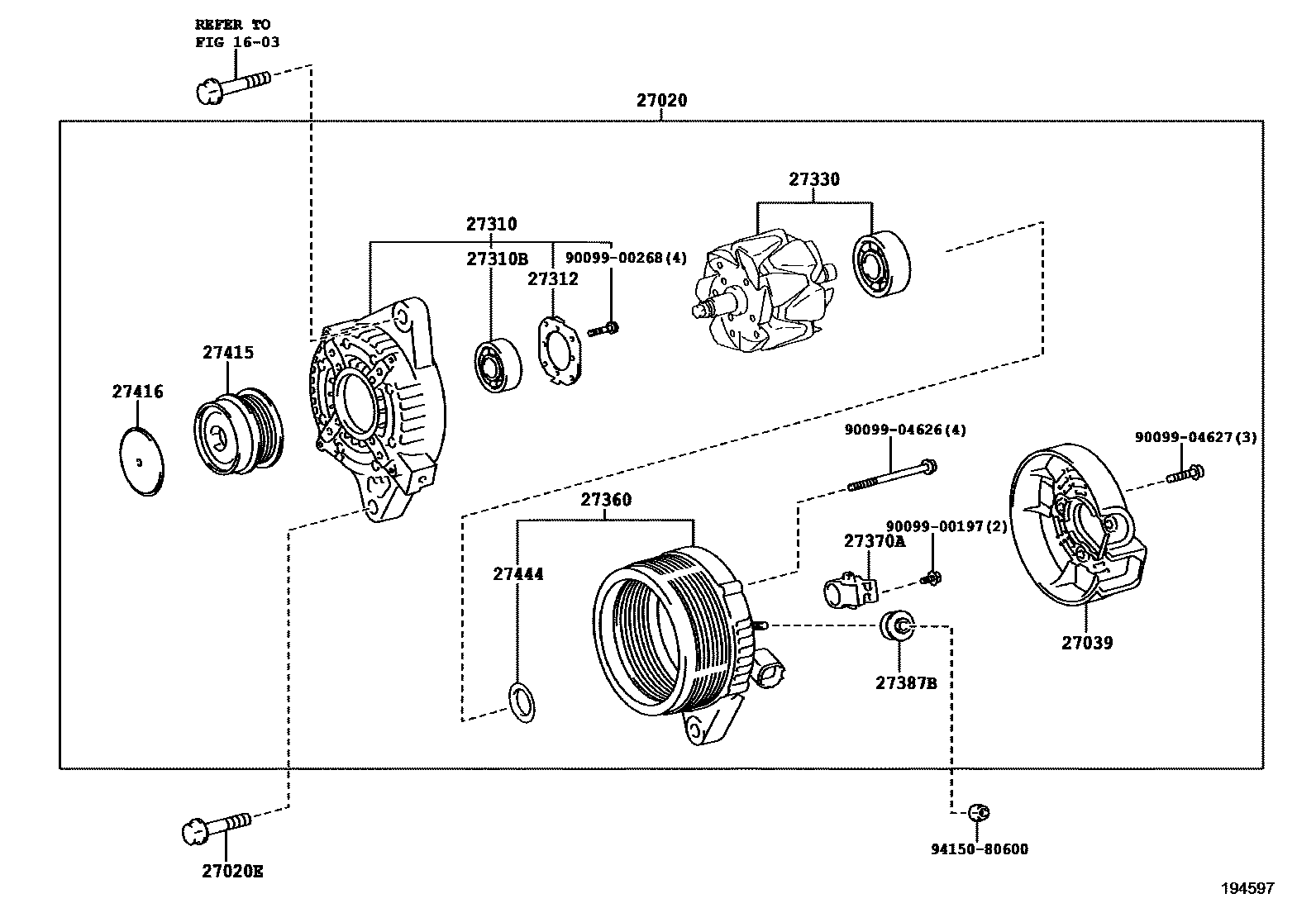

27020ALTERNATOR ASSY

main27060-37150i2ZRFAE..ZRE186201506

12V 100A

27020EBOLT(FOR ALTERNATOR)

main90105-10307i2ZRFAE..ZRE186201506

27039COVER, ALTERNATOR REAR END

main27039-47330i2ZRFAE..ZRE186201506

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-37130i2ZRFAE..ZRE186201506

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i2ZRFAE..ZRE186201506

27312PLATE, RETAINER

main27312-72100i2ZRFAE..ZRE186201506

27330ROTOR ASSY, ALTERNATOR

main27330-47330i2ZRFAE..ZRE186201506-201805

27360COIL ASSY, ALTERNATOR

main27360-37181i2ZRFAE..ZRE186201506

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i2ZRFAE..ZRE186201506

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i2ZRFAE..ZRE186201506-201805

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0T060i2ZRFAE..ZRE186201506-201805

27416CAP, ALTERNATOR PULLEY

main27416-0W050i2ZRFAE..ZRE186201506-201805

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190i2ZRFAE..ZRE186201506

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904627

main90099-04627

9415080600

main94150-80600

19 parts on this diagram · 1 diagram in section
