STANDARD TOOL

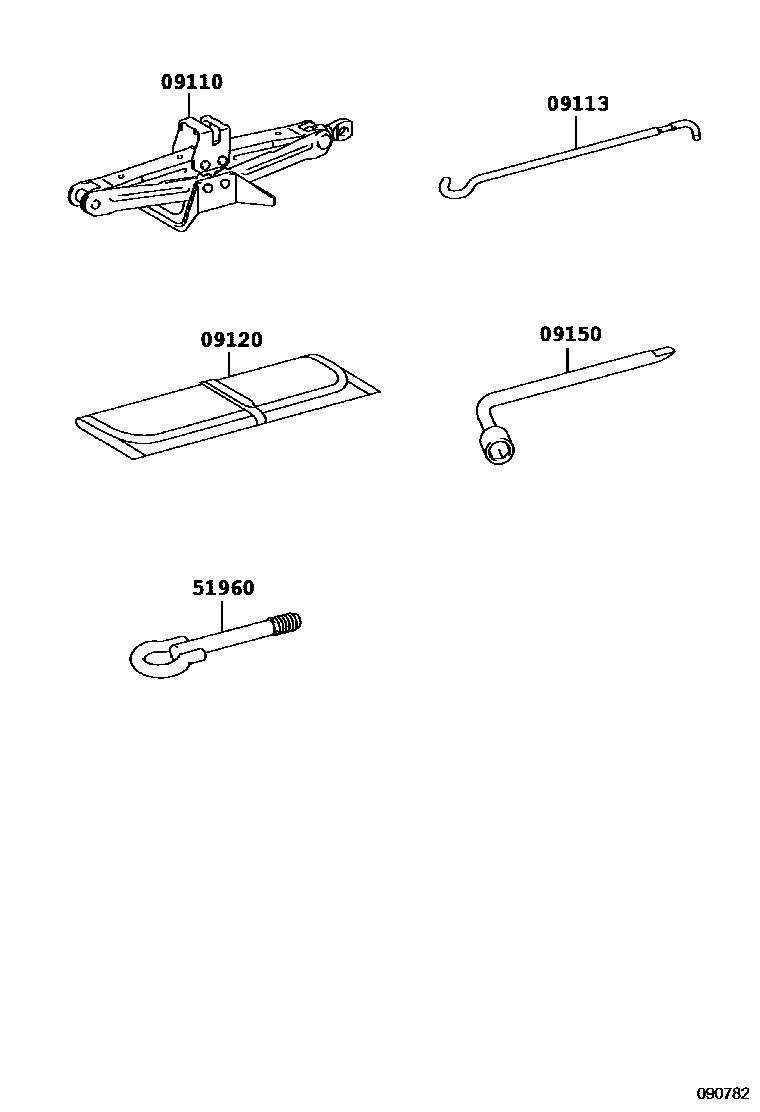

Parts diagram

09110JACK ASSY

main09111-30190i201506-201805

09113HANDLE, JACK

main09113-42030i201506

09120BAG, TOOL

main09120-10040i201506

09150WRENCH, HUB NUT BOX

main09150-42010i201506-201805

TYPE B:REFER ILLUST.

51960HOOK ASSY, FRONT

main51960-12090i201506-201507

main51960-12100i201507

5 parts on this diagram · 1 diagram in section
