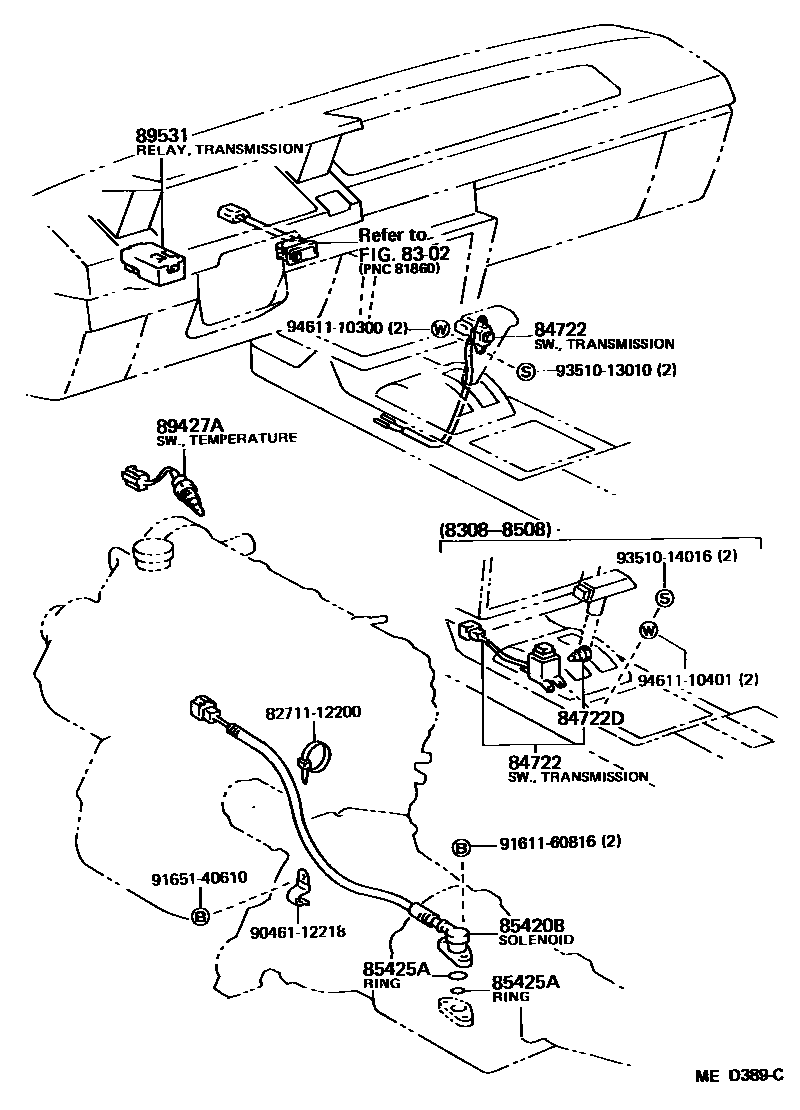

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

8302INDICATOR

→ Go to FIG 83-02

84722SWITCH, TRANSMISSION CONTROL

main84722-14060iAE86..4FC198308-198508

main84722-14070-01iAE86..4FC198508-198707

BLACK,BLACK

84722DBULB, TRANSMISSION CONTROL SWITCH

main90981-11024iAE86..4FC198308-198508

12V 1.4W

85420BSOLENOID ASSY, TRANSMISSION

main85420-12050iAE86..4FC198308-198707

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-11001iAE86..4FC198308-198707

ID=11

main90301-23001iAE86..4FC198308-198707

ID=23

89427ASWITCH, TEMPERATURE

main89427-16020iAE86..4FC..CND198308-198707

89531RELAY, TRANSMISSION CONTROL

main89531-14050iAE86..4FC198308-198707

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9046112218

main90461-12218

9161160816

main91611-60816

9165140610

main91651-40610

9351013010

main93510-13010

9351014016

main93510-14016

9461110300

main94611-10300

9461110401

main94611-10401

15 parts on this diagram · 1 diagram in section
