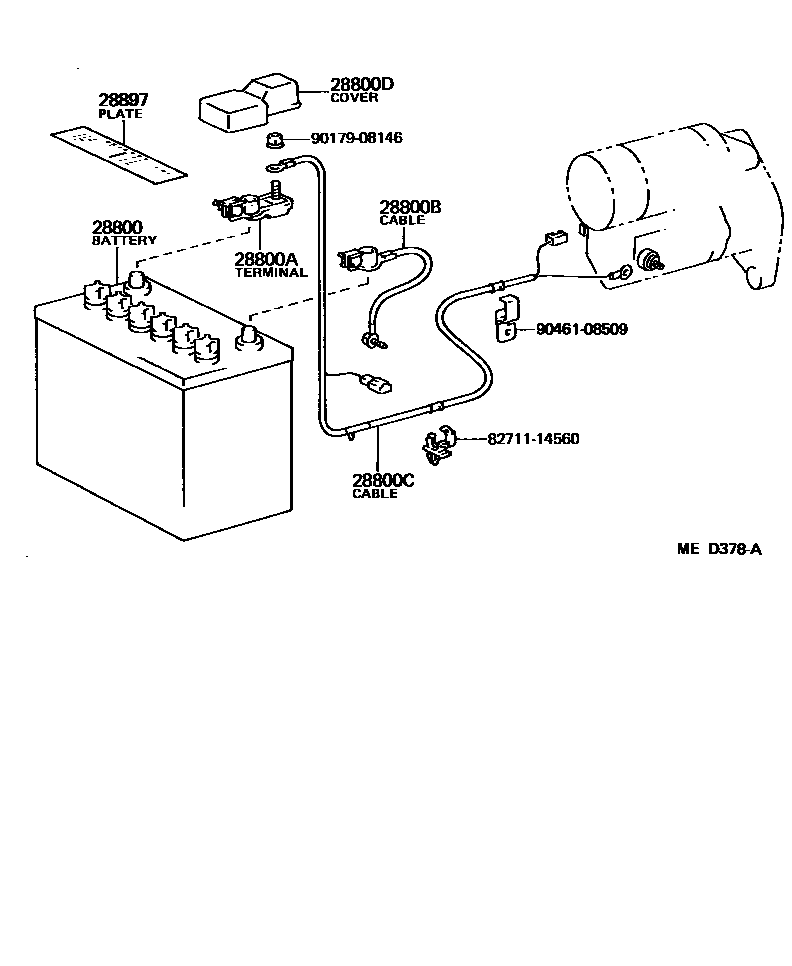

BATTERY & BATTERY CABLE

28800BATTERY

main28800-15050i4A#..AE86198502-198707

55D23L,55D23L-MF(12V 60AH-20HR)

main28800-31031i4A#..AE86..USA198308-198707

32C24L,N40L(12V 40AH-20HR)

main28800-31190i4A#..AE86..USA198411-198502

50D20L-MF(12V 50AH-20HR)

main28800-31200i4A#..AE86..USA198502-198707

50D20L,50D20L-MF(12V 50AH-20HR)

main28800-43070i4A#..AE86198308-198502

55D23L-MF(12V 60AH-20HR)

main28800-43090i4A#..AE86..USA198308-198411

50D20L-MF(12V 50AH-20HR)

28800ATERMINAL, BATTERY POSITIVE

main90982-05029i4A#..AE86198308-198610

main90982-05030i4A#..AE86198610-198707

28800BCABLE, BATTERY TO GROUND

main82123-12090i4A#..AE86198308-198707

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-12180i4AC..AE86198308-198707

main82122-12230i4AGEC..AE86198408-198505

main82122-12290i4AGEC..AE86198505-198707

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12190i4A#..AE86198308-198707

28897PLATE, BATTERY CAUTION

main28897-26010i4A#..AE86..USA198308-198707

POISON/DANGER

main28897-35010i4A#..AE86..CND198308-198502

main28897-38010i4A#..AE86..CND198502-198707

main28898-26010i4A#..AE86..USA198308-198707

DISTRIBUTOR NAME

8271114560WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14560

9017908146

main90179-08146

9046108509

main90461-08509

9 parts on this diagram · 1 diagram in section
