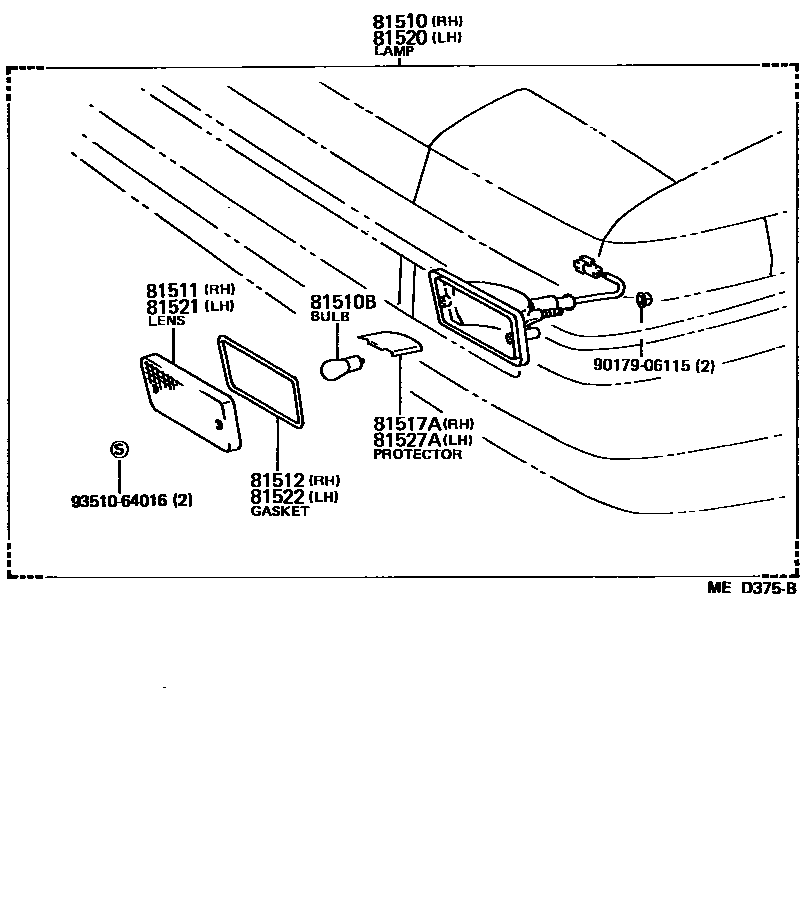

Toyota COROLLA CP161 — FRONT TURN SIGNAL LAMP
81510BBULB (FOR FRONT TURN SIGNAL LAMP)
81511LENS, FRONT TURN SIGNAL LAMP, RH
81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH
81517APROTECTOR, FRONT TURN SIGNAL LAMP, RH
81520LAMP ASSY, FRONT TURN SIGNAL, LH
81521LENS, FRONT TURN SIGNAL LAMP, LH
81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH
81527APROTECTOR, FRONT TURN SIGNAL LAMP, LH
9017906115
9351064016
11 parts on this diagram · 1 diagram in section
FRONT TURN SIGNAL LAMP for Toyota COROLLA CP161
This section contains 11 genuine Toyota parts for the FRONT TURN SIGNAL LAMP system of the Toyota COROLLA CP161. Key components include: LAMP ASSY, FRONT TURN SIGNAL, RH, BULB (FOR FRONT TURN SIGNAL LAMP), LENS, FRONT TURN SIGNAL LAMP, RH, GASKET, FRONT TURN SIGNAL LAMP LENS, RH, PROTECTOR, FRONT TURN SIGNAL LAMP, RH.
