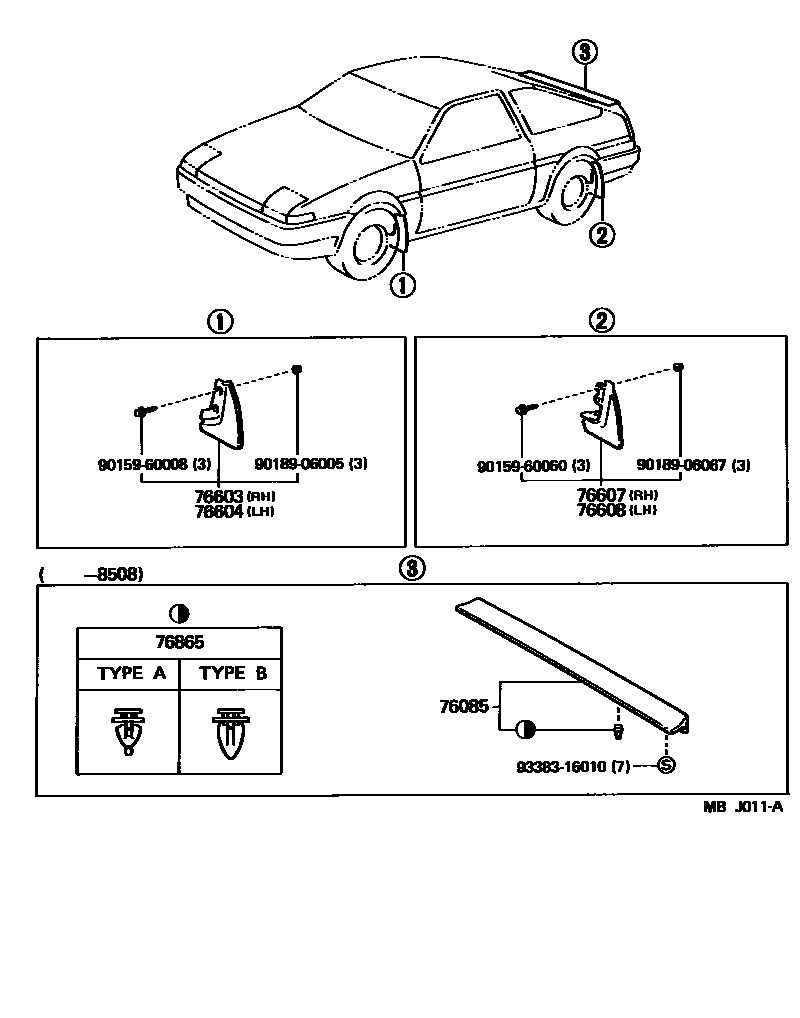

MUDGUARD & SPOILER

76085SPOILER SUB-ASSY, REAR

main76085-12010iAE86..3D..GTS198408-198508

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-19075iAE86..GTS,SR5198308-198508

main76621-19076iAE86..GTS,SR5198508-198707

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-19075iAE86..GTS,SR5198308-198508

main76622-19076iAE86..GTS,SR5198508-198707

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-19185iAE86..GTS,SR5198308-198707

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-19185iAE86..GTS,SR5198308-198707

76865RETAINER, REAR SPOILER, NO.1

main76865-12020×2iAE86..3D..GTS198408-198501

TYPE A

main76865-12040×2iAE86..3D..GTS198408-198501

TYPE B

9015960008

main90159-60008

9015960060

main90159-60060

9018906005

main90189-06005

9018906067

main90189-06067

9338316010

main93383-16010

11 parts on this diagram · 1 diagram in section
