Toyota COROLLA CP161 — SEAT BELT & CHILD RESTRAINT SEAT

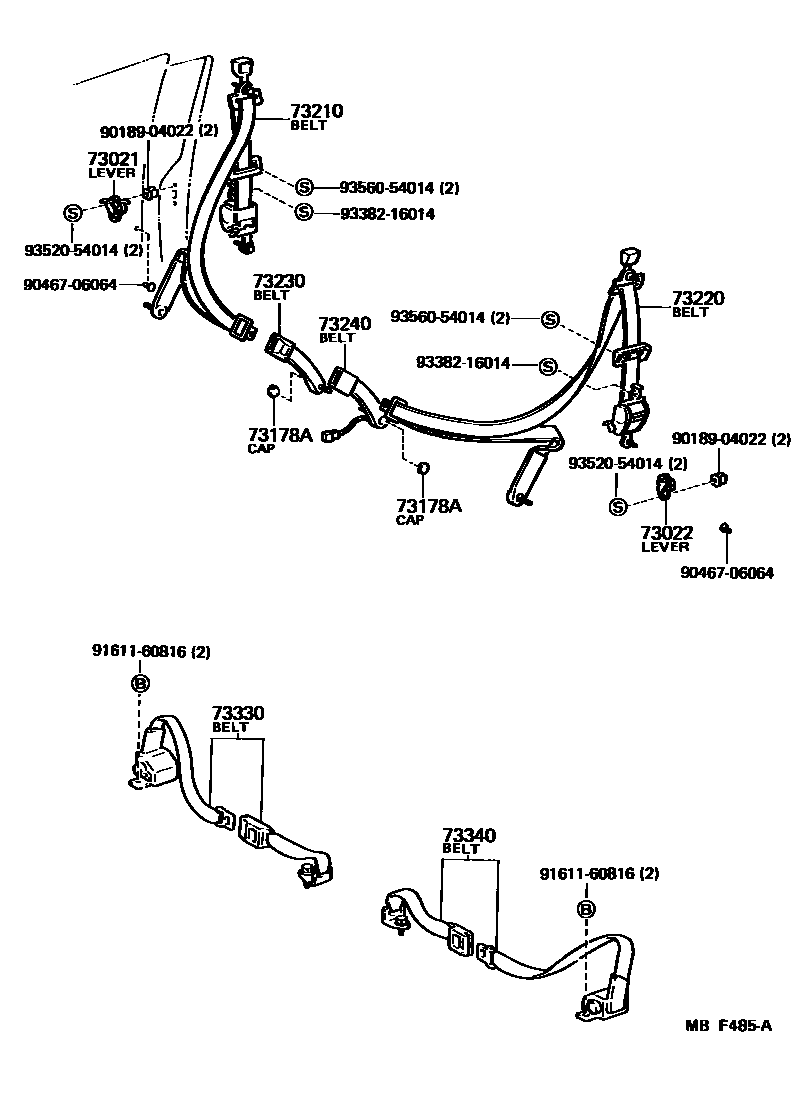

Parts diagram
73021LEVER SUB-ASSY, SEAT BELT COMFORT, RH
73021-12010
73022LEVER SUB-ASSY, SEAT BELT COMFORT, LH
73022-12010
73178ACAP, SEAT BELT ANCHOR COVER
73210BELT ASSY, FRONT SEAT OUTER, RH
73210-12550
73220BELT ASSY, FRONT SEAT OUTER, LH
73220-12460
73230BELT ASSY, FRONT SEAT INNER, RH
73230-12230
73240BELT ASSY, FRONT SEAT INNER, LH
73240-12050
73330BELT ASSY, REAR SEAT LAP TYPE, RH
73330-12140
73330-12141
73340BELT ASSY, REAR SEAT LAP TYPE, LH
73340-12050
73340-12051
9018904022
90189-04022
9046706064
90467-06064
9161160816
91611-60816
9338216014
93382-16014
9352054014
93520-54014
9356054014
93560-54014

15 parts on this diagram · 1 diagram in section

SEAT BELT & CHILD RESTRAINT SEAT for Toyota COROLLA CP161

This section contains 15 genuine Toyota parts for the SEAT BELT & CHILD RESTRAINT SEAT system of the Toyota COROLLA CP161. Key components include: LEVER SUB-ASSY, SEAT BELT COMFORT, RH, LEVER SUB-ASSY, SEAT BELT COMFORT, LH, CAP, SEAT BELT ANCHOR COVER, BELT ASSY, FRONT SEAT OUTER, RH, BELT ASSY, FRONT SEAT OUTER, LH.
