BACK DOOR PANEL & GLASS

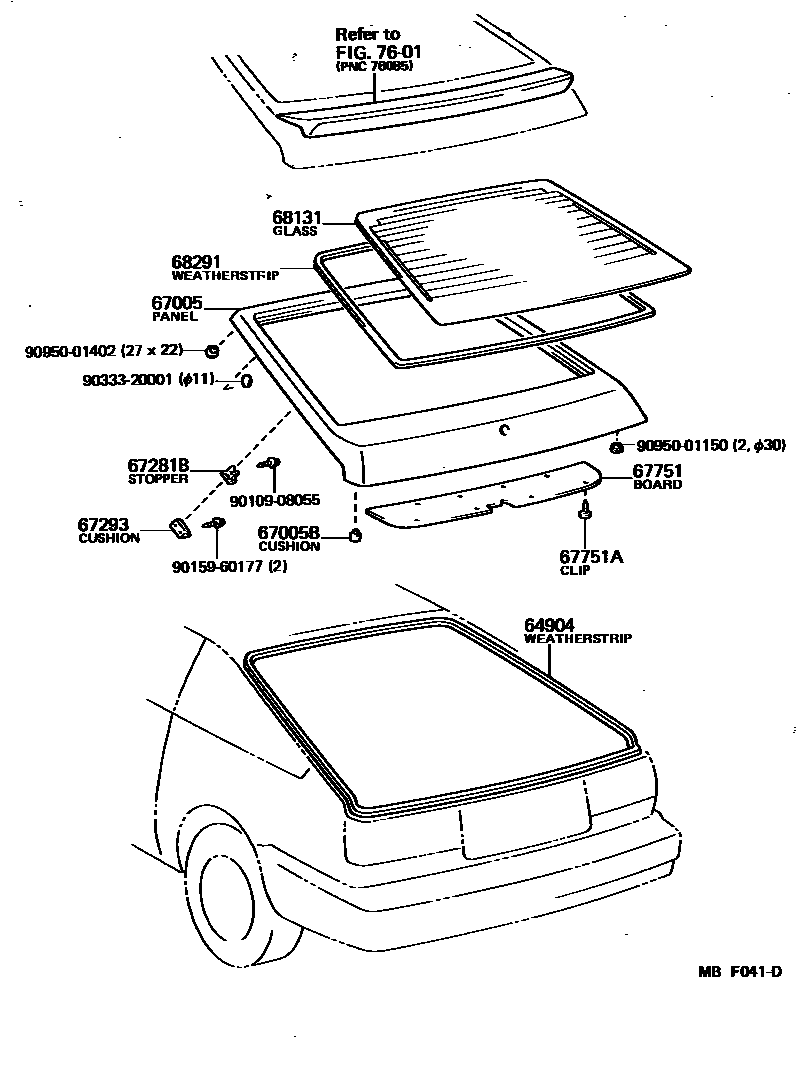

Parts diagram

64904WEATHERSTRIP SUB-ASSY, BACK DOOR

main67881-12070i198308-198506

main67881-12150i198506-198508

67005PANEL SUB-ASSY, BACK DOOR

main67005-12350i198308-198508

W/RR WIPER

main67005-12360i198308-198508

main67005-12770i198408-198508

W/RR WIPER

main67005-12780i198408-198508

main67005-1A130i198508-198605

W/RR WIPER

main67005-1A131i198605-198707

W/RR WIPER

main67005-1A140i198508-198605

main67005-1A141i198605-198707

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09032×2i198308-198707

67281BSTOPPER, BACK DOOR, LOWER

main67281-12010×2i198308-198707

67293CUSHION, BACK DOOR LOWER STOPPER

main67293-12010×2i198308-198707

67751BOARD, BACK DOOR TRIM

main64781-12050-02i198308-198508

DEEP MAROON,RED/MAROON

main64781-12050-03i198408-198508

GRAY,GRAY

main64781-12050-04i198308-198508

BLUE,BLUE

main64781-12070-01i198508-198707

BLACK,BLACK

main64781-12070-02i198508-198707

MAROON,MAROON

main64781-12070-04i198508-198707

BLUE,BLUE

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-07041-01×10i198508-198707

BLACK,BLACK

main90467-07041-02×10i198308-198508

DEEP MAROON,RED/MAROON

main90467-07041-03×10i198408-198508

GRAY,GRAY

main90467-07041-04×10i198308-198508

BLUE,BLUE

main90467-07041-12×10i198508-198707

MAROON,MAROON

68131GLASS, BACK DOOR

main68131-12140i198308-198707

*EHTT,T=4.0

main68131-12150i198308-198707

*EHTT,T=4.0,HEAVY TYPE

main68131-12180i198308-198408

*TT,T=4.0

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-12070i198308-198707

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

9010908055

main90109-08055

9015960177

main90159-60177

9033320001

main90333-20001

9095001150

main90950-01150

9095001402

main90950-01402

15 parts on this diagram · 1 diagram in section
