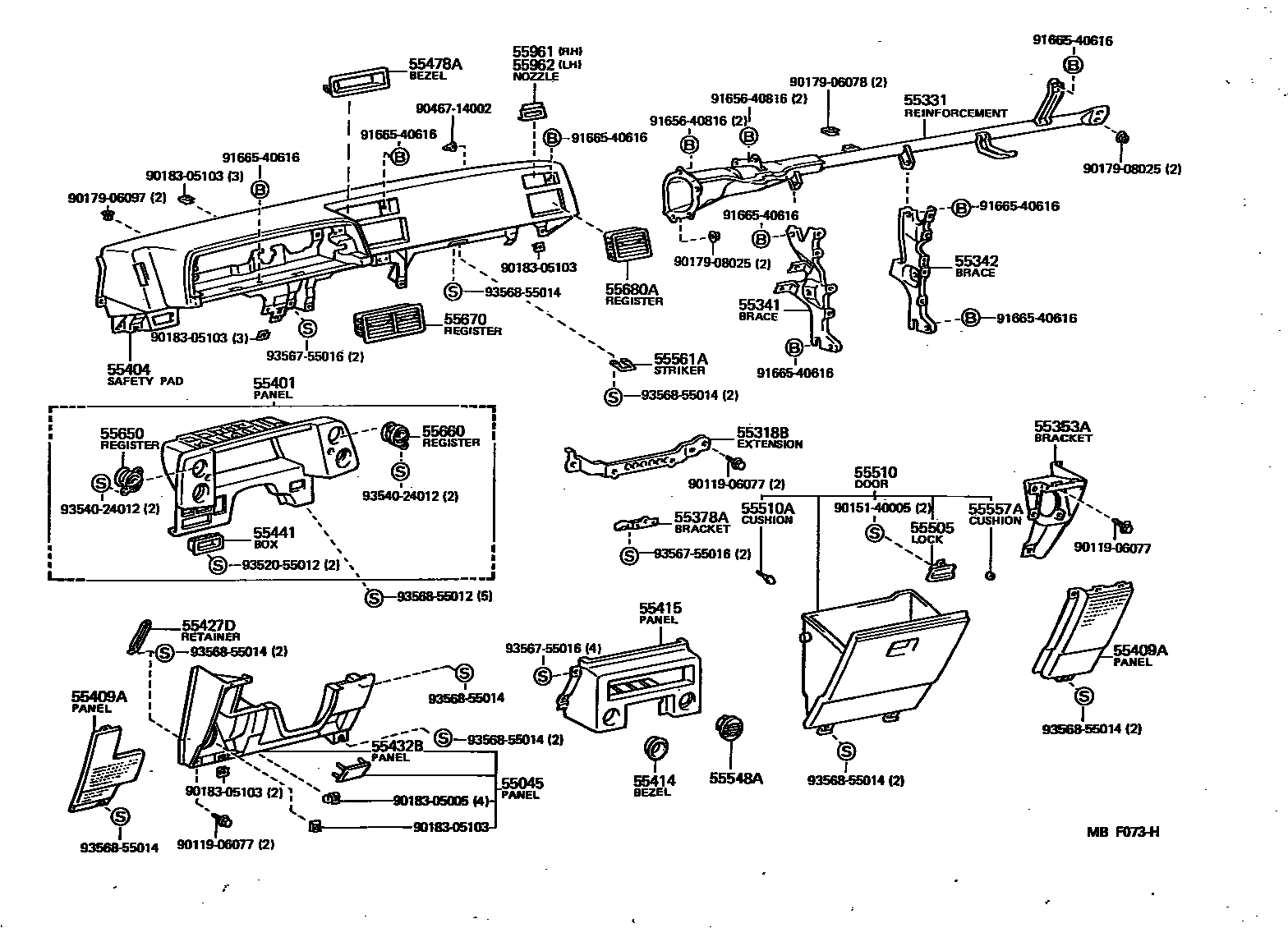

INSTRUMENT PANEL & GLOVE COMPARTMENT
55045PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER
GRAY,GRAY
BLUE,BLUE
BEIGE,BEIGE
BLACK,BLACK
MAROON,MAROON
BLUE,BLUE
W/*TIS,DEEP MAROON,MAROON
W/*TIS,GRAY,GRAY
W/*TIS,BLUE,BLUE
W/*TIS,BEIGE,BEIGE
W/*TIS,BLACK,BLACK
W/*TIS,MAROON,MAROON
W/*TIS,BLUE,BLUE
55318BEXTENSION, INSTRUMENT PANEL
55331REINFORCEMENT, INSTRUMENT PANEL
55341BRACE, INSTRUMENT PANEL, NO.1
55342BRACE, INSTRUMENT PANEL, NO.2
55353ABRACKET, SPEAKER MOUNTING, NO.1
BLACK,BLACK
DEEP MAROON,RED/MAROON
GRAY,GRAY
BLUE,BLUE
MAROON,MAROON
55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
W/*IW
W/*IW
W/*IW & AUTO DRIVE; W/AUTO DRIVE
55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER
BLACK,BLACK
DEEP MAROON,RED/MAROON
GRAY,GRAY
BLUE,BLUE
MAROON,MAROON
55409APANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER
LH,DEEP MAROON,MAROON
LH,GRAY,LIGHT GRAY
LH,BLUE,BLUE
LH,BEIGE,BEIGE
LH,BLACK,BLACK
LH,MAROON,MAROON
LH,BLUE,BLUE
RH,DEEP MAROON,MAROON
RH,GRAY,LIGHT GRAY
RH,BLUE,BLUE
RH,BEIGE,BEIGE
RH,BLACK,BLACK
RH,MAROON,MAROON
RH,BLUE,BLUE
55414BEZEL, CIGAR LIGHTER HOLE
55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55427DRETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1
55432BPANEL, INSTRUMENT PANEL FINISH, LOWER
BLUE,BLUE
BEIGE,BEIGE
W/*TIS,BLUE,BLUE
W/*TIS,BEIGE,BEIGE
55441BOX, INSTRUMENT PANEL
55478ABEZEL, AUTO CLOCK HOLE
BLACK,BLACK
DEEP MAROON,RED/MAROON
GRAY,GRAY
BLUE,BLUE
MAROON,MAROON
55505LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR
BLUE,BLUE
DEEP MAROON,DEEP MAROON
GRAY,LIGHT GRAY
BEIGE,BEIGE
BLACK,BLACK
BLUE,BLUE
MAROON,MAROON
GRAY,LIGHT GRAY
BLUE,BLUE
BROWN,BROWN
55510DOOR ASSY, GLOVE COMPARTMENT
DEEP MAROON,MAROON
GRAY,LIGHT GRAY
BLUE,BLUE
BEIGE,BEIGE
BLACK,BLACK
MAROON,MAROON
BLUE,BLUE
55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)
55548ACOVER, INSTRUMENT PANEL HOLE
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK
55650REGISTER ASSY, INSTRUMENT PANEL, NO.1
55660REGISTER ASSY, INSTRUMENT PANEL, NO.2
55670REGISTER ASSY, INSTRUMENT PANEL, NO.3
BLACK,BLACK
DEEP MAROON,RED/MAROON
GRAY,GRAY
BLUE,BLUE
MAROON,MAROON
55680AREGISTER ASSY, INSTRUMENT PANEL, NO.4
BLACK,BLACK
DEEP MAROON,RED/MAROON
GRAY,GRAY
BLUE,BLUE
MAROON,MAROON
55961NOZZLE, SIDE DEFROSTER, NO.1
BLACK,BLACK
DEEP MAROON,RED/MAROON
GRAY,GRAY
BLUE,BLUE
MAROON,MAROON
55962NOZZLE, SIDE DEFROSTER, NO.2
BLACK,BLACK
DEEP MAROON,RED/MAROON
GRAY,GRAY
BLUE,BLUE
MAROON,MAROON
9011906077
main90119-06077
9015140005
main90151-40005
9017906078
main90179-06078
9017906097
main90179-06097
9017908025
main90179-08025
9018305005
main90183-05005
9018305103
main90183-05103
9046714002
main90467-14002
9165640816
main91656-40816
9166540616
main91665-40616
9352055012
main93520-55012
9354024012
main93540-24012
9356755016
main93567-55016
9356855012
main93568-55012
9356855014
main93568-55014
43 parts on this diagram · 1 diagram in section
