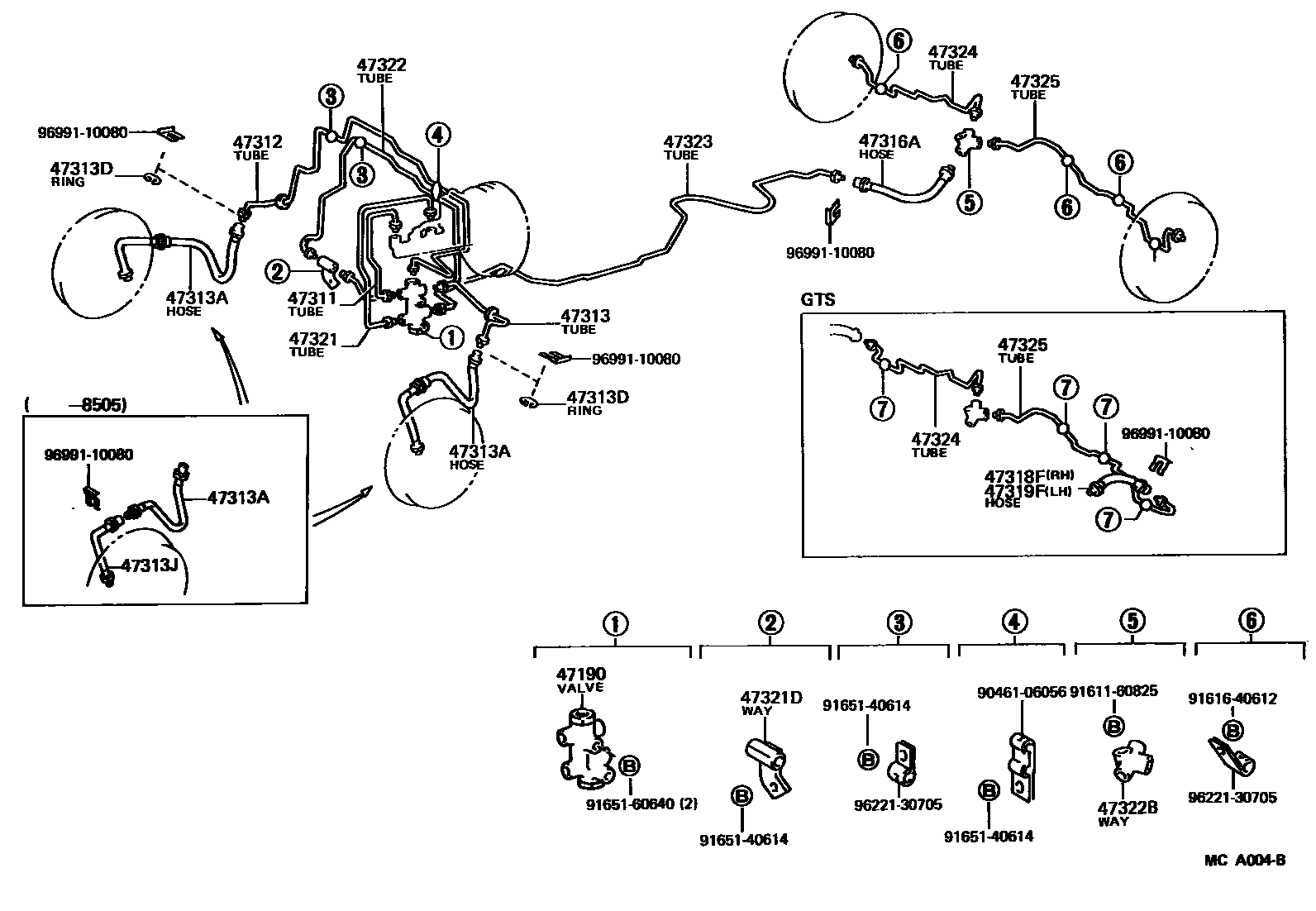

BRAKE TUBE & CLAMP

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-12040iAE86..GTS198408-198707

main47190-22040iAE86..DX,SR5198308-198707

47311TUBE, FRONT BRAKE, NO.1

main47312-12170iAE86198308-198707

47312TUBE, FRONT BRAKE, NO.2

main47314-12220iAE86..DX,SR5198308-198707

main47314-12240iAE86..GTS198408-198707

47313TUBE, FRONT BRAKE, NO.3

main47315-12370iAE86198308-198408

main47315-12371iAE86198408-198707

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02403×2iAE86198308-198505

main90947-02476×2iAE86198505-198707

47313DRING, E(FOR FRONT FLEXIBLE HOSE SETTING)

main96160-01200×2iAE86198308-198707

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main96960-32105×2iAE86198308-198505

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main96940-32805iAE86198308-198707

47318FHOSE, FLEXIBLE(FOR REAR RH)

main96940-32555iAE86..GTS198408-198707

47319FHOSE, FLEXIBLE(FOR REAR LH)

main96940-32555iAE86..GTS198408-198707

47321TUBE, REAR BRAKE, NO.1

main47322-12150iAE86198308-198707

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10056iAE86198308-198707

47322TUBE, REAR BRAKE, NO.2

main47326-12030iAE86..DX,SR5198308-198707

main47326-12050iAE86..GTS198408-198707

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10098iAE86198308-198707

47323TUBE, REAR BRAKE, NO.3

main47323-12150iAE86198308-198707

47324TUBE, REAR BRAKE, NO.4

main47324-12130iAE86..DX,SR5198308-198707

main47324-12150iAE86..GTS198408-198707

47325TUBE, REAR BRAKE, NO.5

main47325-12130iAE86..DX,SR5198308-198707

main47325-12150iAE86..GTS198408-198707

9046106056

main90461-06056

9161160825

main91611-60825

9161640612

main91616-40612

9165140614

main91651-40614

9165160640

main91651-60640

9622130705

main96221-30705

9699110080

main96991-10080

24 parts on this diagram · 1 diagram in section
