Toyota COROLLA CP161 — DISC WHEEL & WHEEL CAP

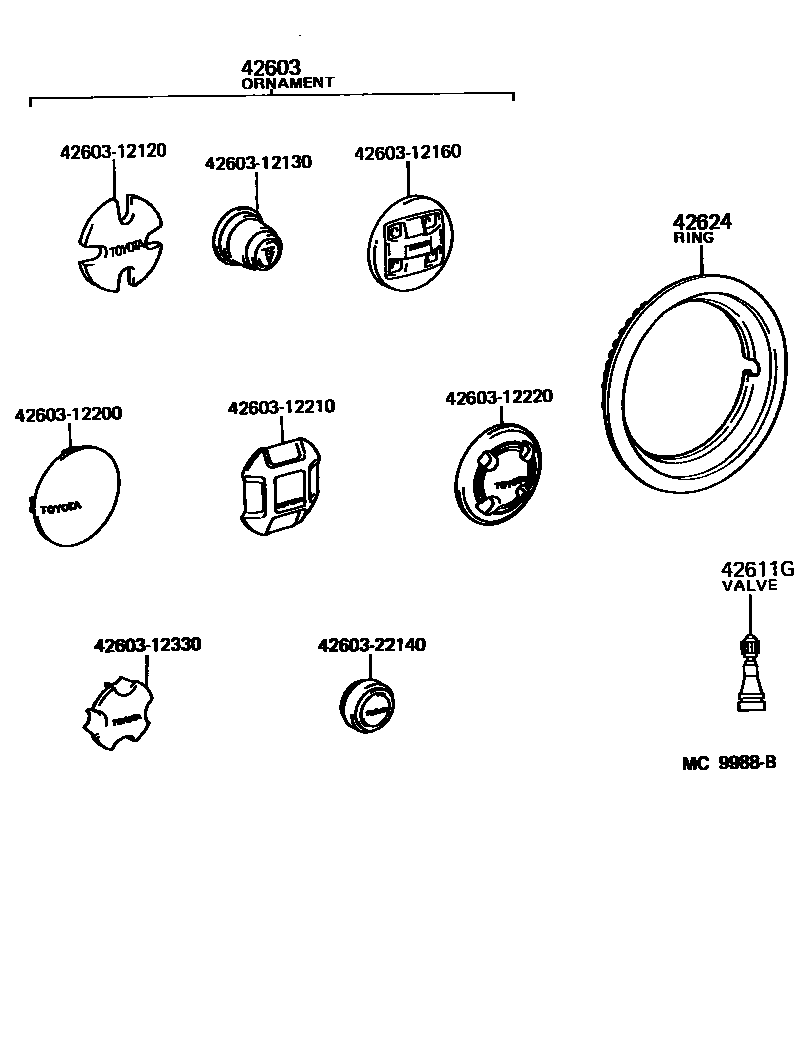

Parts diagram
42603ORNAMENT SUB-ASSY, WHEEL HUB
42603-12120
42603-12130
42603-22140
42603-14150
42603-12160
42603-12200
42603-12210
42603-12220
42603-12330
42611GVALVE (FOR TUBELESS TIRE)
42624RING, WHEEL CAP
42624-32010
42624-32020
4260312120ORNAMENT SUB-ASSY, WHEEL HUB
42603-12120
4260312130ORNAMENT SUB-ASSY, WHEEL HUB
42603-12130
4260312160ORNAMENT SUB-ASSY, WHEEL HUB
42603-12160
4260312200ORNAMENT SUB-ASSY, WHEEL HUB
42603-12200
4260312210ORNAMENT SUB-ASSY, WHEEL HUB
42603-12210
4260312220ORNAMENT SUB-ASSY, WHEEL HUB
42603-12220
4260312330ORNAMENT SUB-ASSY, WHEEL HUB
42603-12330
4260322140ORNAMENT SUB-ASSY, WHEEL HUB
42603-22140

11 parts on this diagram · 2 diagrams in section

DISC WHEEL & WHEEL CAP for Toyota COROLLA CP161

This section contains 15 genuine Toyota parts for the DISC WHEEL & WHEEL CAP system of the Toyota COROLLA CP161. Key components include: WHEEL, DISC, NUT, HUB (FOR AXLE), WEIGHT, BALANCE (FOR DISC WHEEL), ORNAMENT SUB-ASSY, WHEEL HUB, VALVE (FOR TUBELESS TIRE).
