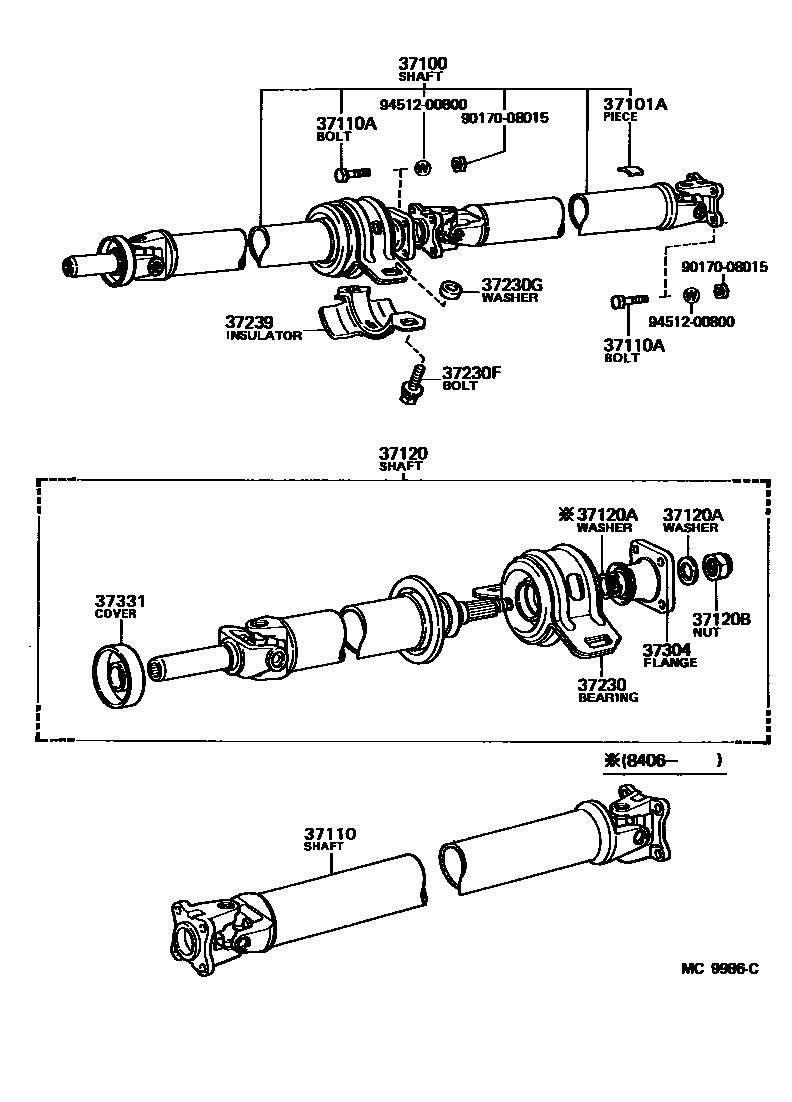

PROPELLER SHAFT & UNIVERSAL JOINT

37100SHAFT ASSY, PROPELLER W/CENTER BEARING

main37100-12380iAE86..2D..5F..(DX,SR5)198308-198707

main37100-12390iAE86..2D..GTS198408-198509

main37100-12400iAE86..2D..4FC198308-198707

main37100-12420iAE86..3D..5F..SR5198308-198707

main37100-12430iAE86..3D..4FC198308-198707

main37100-12440iAE86..3D..GTS198408-198509

37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)

main90937-01132×3iAE86198308-198707

10G,L=20.7,10G

main90937-01136×3iAE86198308-198608

20G,L=41.4,20G

main90937-01140×3iAE86198308-198608

30G,L=62.2,30G

main90937-01147×3iAE86198308-198707

2G,T=2.0,2G

main90937-01148×3iAE86198308-198707

4G,T=2.0,4G

main90937-01149×3iAE86198308-198707

6G,L=12.4,6G

main90937-01150×3iAE86198308-198707

8G,L=16.6,8G

main90937-01151×3iAE86198308-198707

12G,L=24.9,12G

main90937-01152×3iAE86198308-198707

14G,L=29.0,14G

main90937-01153×3iAE86198308-198608

16G,L=33.2,16G

main90937-01154×3iAE86198308-198608

18G,L=37.3,18G

main90937-01155×3iAE86198308-198608

22G,L=45.6,22G

main90937-01156×3iAE86198308-198608

24G,L=49.7,24G

main90937-01157×3iAE86198308-198608

26G,L=53.9,26G

main90937-01158×3iAE86198308-198608

28G,L=58.1,28G

37110SHAFT ASSY, PROPELLER

main37110-12330iAE86..2D..4FC; AE86..2D..5F..(DX,SR5)198308-198707

main37110-12340iAE86..2D..GTS198408-198509

main37110-12410iAE86..3D..4FC; AE86..3D..5F..SR5198308-198707

main37110-12420iAE86..3D..GTS198408-198509

37110ABOLT (FOR PROPELLER SHAFT)

main90101-08082×8iAE86198308-198707

*8-1.25PX25-12,13G

main90101-08088×2iAE86198308-198707

15G

main90101-08090×2iAE86198308-198707

17G

main90101-08091×2iAE86198308-198707

19G

37120SHAFT ASSY, PROPELLER INTERMEDIATE

main37120-12200iAE86..5F198308-198707

main37120-12210iAE86..4FC198308-198707

37120AWASHER, PLATE (FOR PROPELLER INTERMEDIATE SHAFT SET)

main90201-18182iAE86198308-198707

OD=33.5,T=4.0,T=4,OD=33.5

main90201-26005iAE86198406-198707

OD=36.6,T=0.8,T=0.8,OD=36.6

37120BNUT (FOR PROPELLER INTERMEDIATE SHAFT SETTING)

main90179-18009iAE86198406-198707

main90179-18060iAE86198308-198406

37230BEARING ASSY, CENTER SUPPORT, NO.1

main37230-12050iAE86198308-198707

37230FBOLT, NO.1 (FOR CENTER SUPPORT BEARING)

main90119-10049×2iAE86198308-198707

37230GWASHER, NO.2 (FOR CENTER SUPPORT BEARING)

main90201-10008×2iAE86198308-198707

T=4.5

37239INSULATOR, CENTER SUPPORT BEARING HEAT

main37239-12040iAE86198308-198707

37304FLANGE SUB-ASSY, UNIVERSAL JOINT

main37304-22012iAE86198308-198406

main37304-22013iAE86198406-198707

37331COVER, SLIDING SHAFT DUST

main37331-12010iAE86..5F198308-198707

main37331-30010iAE86..4FC198308-198707

9017008015

main90170-08015

9451200800

main94512-00800

15 parts on this diagram · 1 diagram in section
